METERS/IGNITION SWITCH (F9)
F9C 1975 USA CANADA

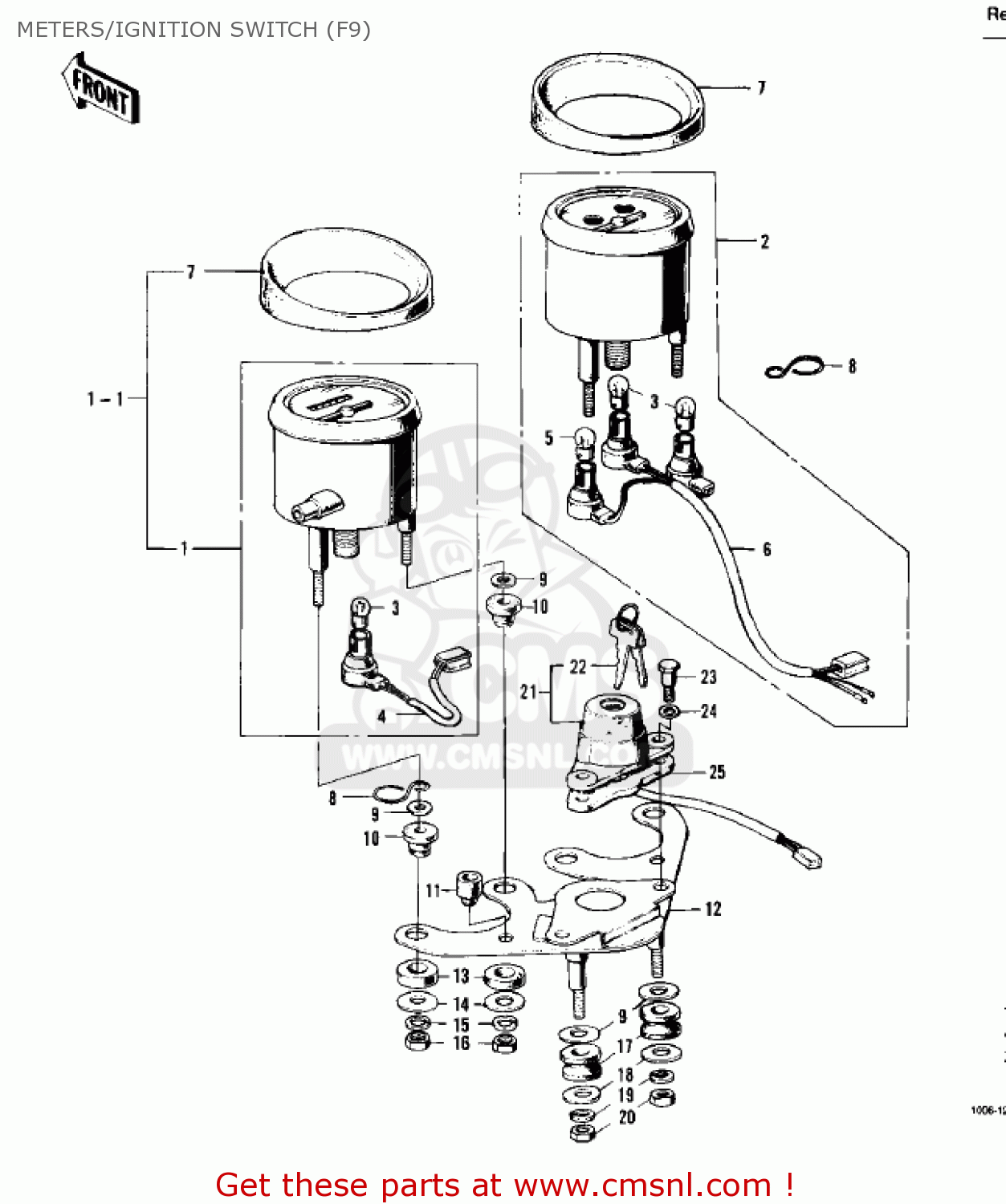

Meters/ignition switch (f9) diagram F9C 1975 USA CANADA
METERS/IGNITION SWITCH (F9) F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
25001045
ref: 1
SPEEDOMETER ASSY,MPH
€ 164.50
1-1
25001045
ref: 1-1
FROM F9-A
SPEEDOMETER ASSY,MPH
€ 164.50
1
25005044
ref: 1
SPEEDOMETER ASSY KPH
€ 68.50
2
25015009
ref: 2
TACHOMETER ASSY
€ 67.00
3
92069053
ref: 3
BULB 6V 3W
€ 3.00
4
25011015
ref: 4
SOCKET-SPEEDOMETER
€ 18.00
5
92069024
ref: 5
BULB 6V 1.5W
€ 3.00
6
25011016
ref: 6
SOCKET-TACHOMETER
€ 12.50
7
25012003
ref: 7
COVER
€ 23.50
8
25022002
ref: 8
CLAMP-CABLE
€ 3.50
9
411B0600
ref: 9
I.D.=85O
WASHER-PLAIN,6MM
€ 0.50
10
92075065
ref: 10
DAMPER RUBBER
€ 1.00
11
92075035
ref: 11
DAMPER
€ 3.00
12
25008015
ref: 12
BRACKET-METER
€ 19.00
13
92075066
ref: 13
DAMPER RUBBER
€ 1.00
14
92022104
ref: 14
WASHER-SPEEDMETR FIT
€ 2.50
15
461F0500
ref: 15
WASHER-SPRING,5MM
€ 0.50
16
311B0500
ref: 16
NUT-HEX
€ 0.50
17
92075024
ref: 17
DAMPER
€ 2.50
18
92022125
ref: 18
WASHER,6.5X20X1.6
€ 1.00
19
461F0600
ref: 19
WASHER-SPRING,6MM
€ 0.50
20
311B0600
ref: 20
NUT,6MM
€ 0.50
21
27005068
ref: 21
SWITCH ASSY,IGNITION
€ 106.50
21
27005068
ref: 21
SWITCH ASSY,IGNITION
€ 106.50
22
2700804255
ref: 22
KEY SET,#155
€ 8.00
22
2700804256
ref: 22
KEY SET,#156
€ 8.00
22
2700804257
ref: 22
KEY SET,#157
€ 8.00
22
2700804258
ref: 22
KEY SET,#158
€ 8.00
22
2700804259
ref: 22
KEY SET,#159
€ 5.50
22
2700804260
ref: 22
KEY SET,#160
€ 4.50
22
2700804261
ref: 22
KEY SET,#161
€ 4.50
22
2700804262
ref: 22
KEY SET,#162
€ 4.00
22
2700804263
ref: 22
KEY SET,#163
€ 4.50
22
2700804264
ref: 22
KEY SET,#164
€ 4.00
23
92007026
ref: 23
BOLT-HEX HEAD,6MM
€ 6.00
24
410B0800
ref: 24
WASHER-PLAIN-SMALL,8M
€ 0.50
25
92075077
ref: 25
DAMPER RUBBER
€ 7.00
