TRANSMISSION/CHANGE DRUM
F5 BIG HORN 1970 USA

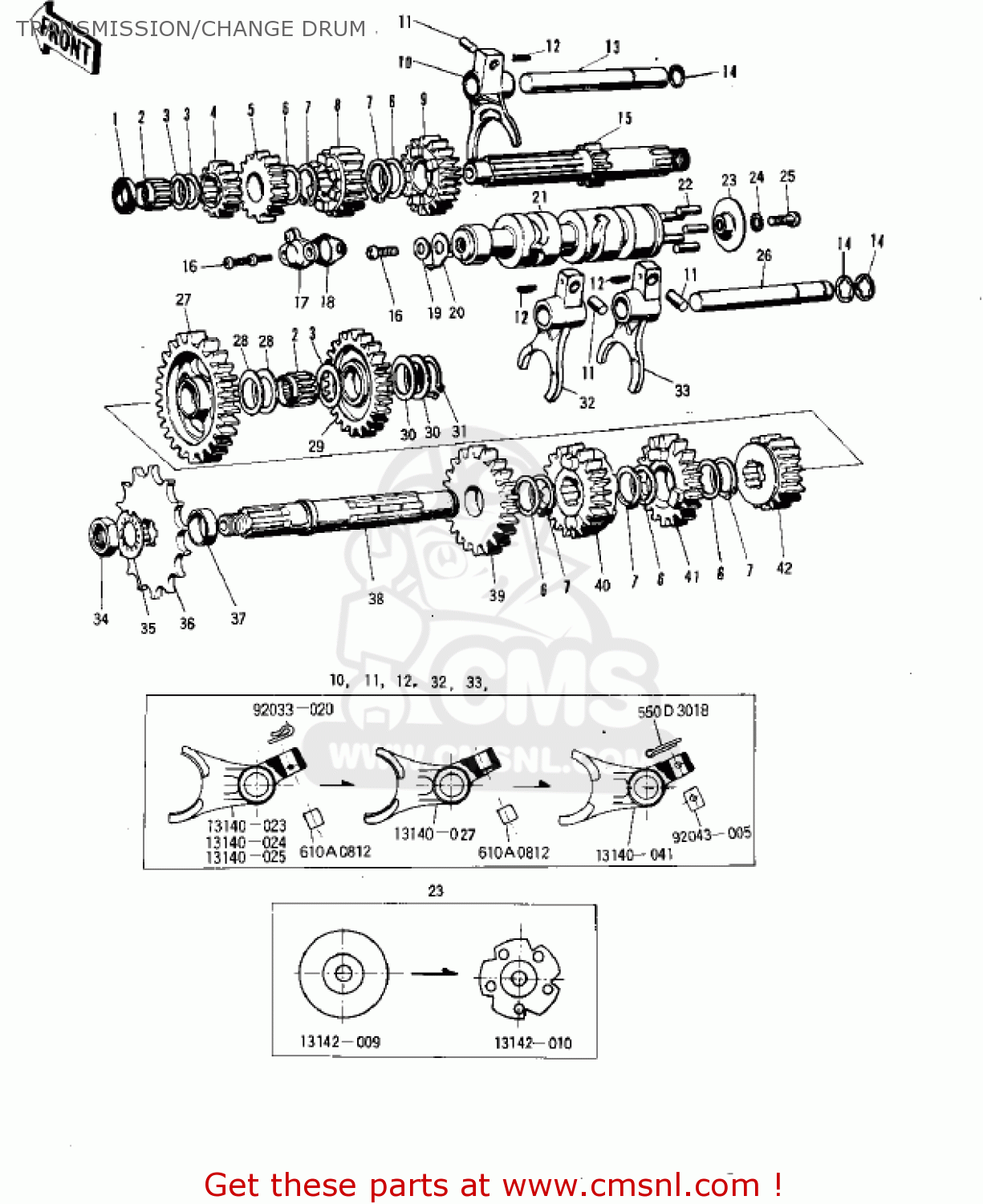

Transmission/change drum diagram F5 BIG HORN 1970 USA
TRANSMISSION/CHANGE DRUM F5 BIG HORN 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
92050034
ref: 1
OIL SEAL-CLTH PSH ROD
€ 8.50
2
92046025
ref: 2
BEARING,#7E-HMK2015
€ 16.00
3
92022112
ref: 3
WASHER,20.5X30X1,STEE
€ 6.00
4
13130021
ref: 4
14T
2ND GEAR-DRIVE SHAFT
€ 39.50
5
13134005
ref: 5
20T
4TH GEAR-DRIVE SHAFT
€ 33.50
6
92022076
ref: 6
WASHER,25MM
€ 7.00
7
92033026
ref: 7
CIRCLIP
€ 6.00
8
13132020
ref: 8
18T
3RD GEAR-DRIVE SHAFT
€ 68.50
9
13136047
ref: 9
28T
TOP GEAR,DRIVE SHAFT
€ 49.50
10
13140052
ref: 10
FORK-SELECTOR
€ 64.50
10
13140052
ref: 10
E/NO. 07369
FORK-SELECTOR
€ 64.50
11
610A0812
ref: 11
ROLLER,8X12
€ 3.00
11
92043005
ref: 11
E/NO. 07369
PIN,DOWEL,8X15
€ 4.50
12
92033020
ref: 12
NOT REQUIRED
CIRCLIP
€ 1.50
12
550D3018
ref: 12
E/NO. 07369
PIN COTTER 3.0X18
€ 0.50
13
13209003
ref: 13
L=113 M/M
ROD-SHIFT
€ 2.00
14
482J0100
ref: 14
CIRCLIP-TYPE-E,10MM
€ 0.50
15
13127025
ref: 15
11T
SHAFT-DRIVE
€ 89.00
16
220B0616
ref: 16
SCREW-PAN HEAD,6X16
€ 2.50
17
13151004
ref: 17
SWITCH-NEUTRAL
€ 9.50
18
13146002
ref: 18
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
19
410B0600
ref: 19
WASHER-PLAIN-SMALL,6M
€ 0.50
20
210071003
ref: 20
ROTOR,TOP & NEUTRAL
€ 4.50
21-25
13239006
ref: 21-25
DRUM ASSY-GEAR CHANG
€ 72.00
21
13239006
ref: 21
DRUM ASSY-GEAR CHANG
€ 72.00
22
92042014
ref: 22
L=15.8 M/M
PIN-GEAR CHANGE DRUM
€ 0.50
22
92042020
ref: 22
L=17.8 M/M
PIN-GEAR CHANGE DRUM
€ 3.00
23
13142009
ref: 23
PLATE-CHANGE DRUM PIN
€ 6.00
23
13142010
ref: 23
PLATE-CHANGE DRUM PIN
€ 11.50
24
464H0600
ref: 24
WASHER-LOCK,6MM
€ 0.50
25
220B0612
ref: 25
USE 13142-009
SCREW-PAN HEAD,6X12
€ 1.00
25
221B0620
ref: 25
USE 13142-010
SCREW-CNTSNK HD,6X20
€ 0.50
26
13209010
ref: 26
L=119 M/M
ROD-SHIFT
€ 6.50
27
13129042
ref: 27
27T
LOW GEAR-OUTPUT SHAFT
€ 88.00
28
92022113
ref: 28
WASHER,20.5X30X1
€ 6.00
29
13073005
ref: 29
27T
IDLE GEAR-KICKSTARTER
€ 41.00
30
92022112
ref: 30
1.0T
WASHER,20.5X30X1,STEE
€ 6.00
30
92022144
ref: 30
0.5T
SHIM-KICK SHAFT
€ 4.50
31
480J1900
ref: 31
CIRCLIP-TYPE-C,19MM
€ 1.00
32
13140052
ref: 32
FORK-SELECTOR
€ 64.50
33
13140052
ref: 33
FORK-SELECTOR
€ 64.50
34
92015019
ref: 34
NUT,18MM
€ 4.00
35
92024067
ref: 35
WASHER,LOCK
€ 2.00
36
13144017
ref: 36
STD
SPROCKET-OUTPUT,14T
€ 35.50
36
13144043
ref: 36
OPTION
ENGINE SPROCKET,13T
€ 30.50
37
92027163
ref: 37
COLLAR,25X30X10.1
€ 13.00
38
13128027
ref: 38
SHAFT-OUTPUT
€ 100.50
39
13131024
ref: 39
24T
2ND GEAR-OUTPUT SHAFT
€ 44.00
40
13135009
ref: 40
18T
4TH GEAR-OUTPUT SHAFT
€ 54.50
41
13133019
ref: 41
21T
3RD GEAR-OUTPUT SHAFT
€ 33.00
42
13137013
ref: 42
20T
TOP GEAR-OUTPUT SHAFT
€ 35.50
