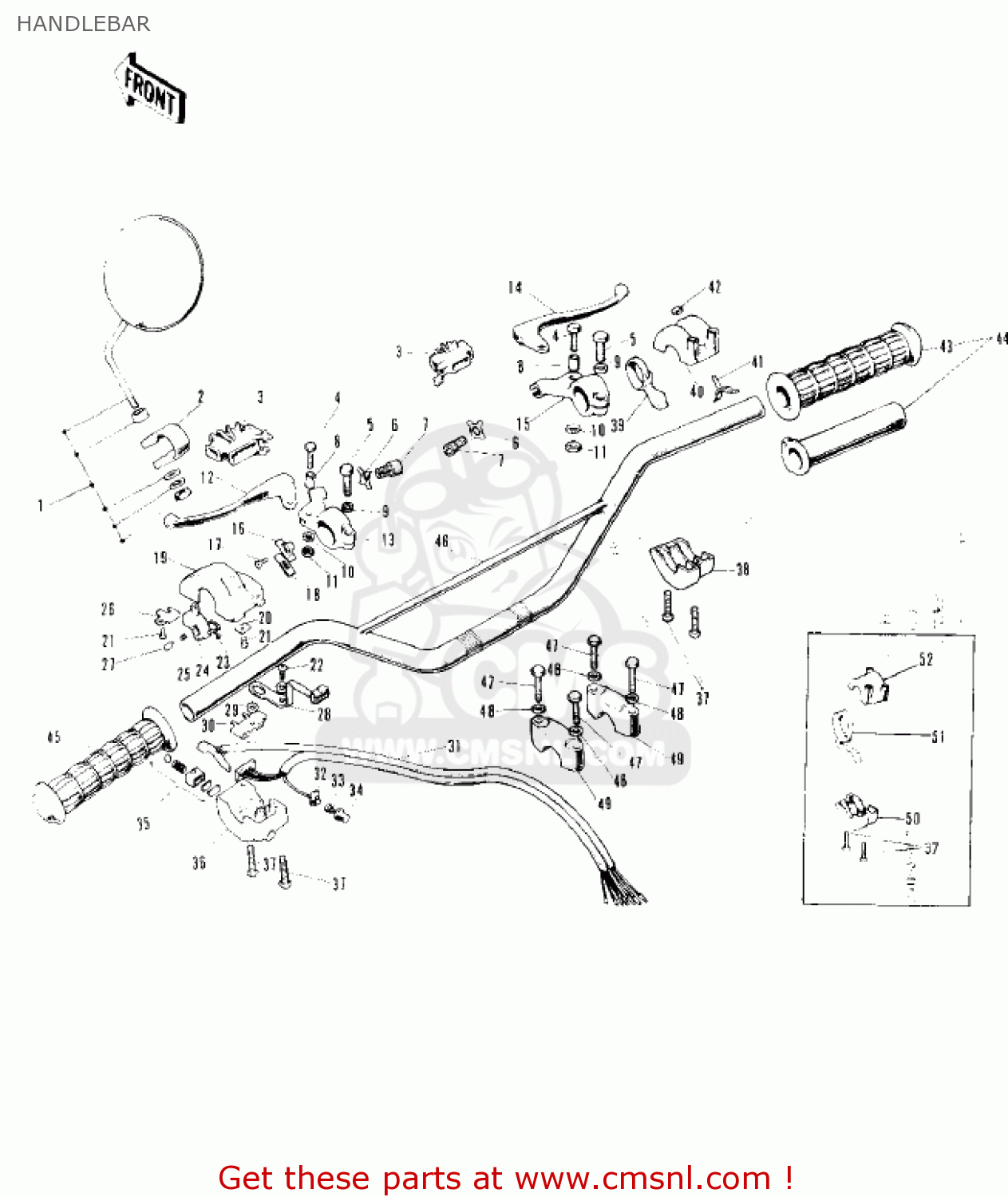

HANDLEBAR

ref

part #

description

quantity

1

56001005
ref: 1

REAR VIEW MIRROR

€ 54.00

2

56006001
ref: 2

PLATE,MIRROR

€ 8.50

?

46076014
ref: ?
Includes items 3 - 1

LEVER ASSY-CLUTCH

€ 30.00

3

46071001
ref: 3

DUST COVER

€ 9.00

4

92007020
ref: 4

BOLT-HEX HEAD,5X20

€ 2.50

5

112N0620
ref: 5

BOLT-UPSET

€ 1.00

6

46056001
ref: 6

NUT-ADJUST SCREW LOCK

€ 2.50

7

46055003
ref: 7

SCREW-CABLE ADJUST

€ 11.50

8

46059011
ref: 8

COLLAR,LEVER

€ 3.50

9

410B0600
ref: 9

WASHER-PLAIN-SMALL,6M

€ 0.50

10

464H0500
ref: 10

WASHER-LOCK,5MM

€ 0.50

11

312B0500
ref: 11

NUT-HEX,5MM

€ 0.50

12

46092015
ref: 12

LEVER-GRIP,CLUTCH

€ 11.50

13

46094010
ref: 13

HOLDER,CLUTCH LEVER

€ 31.50

?

46021010
ref: ?
Includes items 14 an

LEVER ASSY-FRNT BRAKE

€ 35.50

14

46058004
ref: 14

LEVER-GRIP,FRONT BRAK

€ 24.00

15

46060006
ref: 15

HOLDER-FR BRAKE LEVER

€ 26.00

?

46091004
ref: ?
Includes items 16 -

CASE ASSY-L.H

€ 88.00

16

46044011
ref: 16

KNOB-L.H SWITCH

€ 6.00

17

221B0308A
ref: 17

SCREW-CNTSNK HD,3X8

€ 2.50

18

46031003
ref: 18

SPRING-L.H SW KNOB

€ 1.50

19

46086013
ref: 19

CASE-L.H SWITCH UPPER

€ 9.50

20

46085013
ref: 20

HOLDER-L.H SW UPPER,A

€ 1.50

21

220B0305A
ref: 21

SCREW-PAN HEAD,3X5

€ 1.00

22

220B0308
ref: 22

SCREW-PAN-CROS

€ 0.50

23

46080002
ref: 23

PLATE-L.H SW CONTACT

€ 1.50

24

46089003
ref: 24

SWITCH-L.H

€ 2.50

25

46031004
ref: 25

SPRING-L.H SWITCH

€ 1.50

26

46085014
ref: 26

HOLDER-L.H SW LOWER,B

€ 1.00

27

46079002
ref: 27

CONTACT-L.H SWITCH

€ 1.50

28

46044006
ref: 28

KNOB-SWITCH

€ 2.50

29

92095010
ref: 29

WASHER

€ 2.50

30

46085015
ref: 30

HOLDER-L.H SW LOWER

€ 1.00

31

46082017
ref: 31

WIRING HARNESS-L.H SW

€ 12.50

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

46089004
ref: 35

SLIDE BLOCK AY-L.H SW

€ 6.50

36

46077015
ref: 36

CASE-L.H SWITCH LOWER

€ 9.50

?

46018019
ref: ?
Includes items 37 -

CASE ASSY-R.H

€ 67.50

37

220B0522
ref: 37

SCREW-PAN-CROS

€ 0.50

38

46023005
ref: 38

CASE-R.H LOWER

€ 13.00

39

46096006
ref: 39

LEVER-STARTER

€ 29.00

40

46041005
ref: 40

CASE-R.H UPPER

€ 59.50

41

46024002
ref: 41

SPRING-THROTTLE GRIP

€ 0.50

42

312B0500
ref: 42

NUT-HEX,5MM

€ 0.50

43

46061012
ref: 43

GRIP,RUBBER,RH

€ 18.50

44

46019013
ref: 44

GRIP ASSY,THROTTLE

€ 15.00

45

46075017
ref: 45

GRIP,LH

€ 15.50

46

46004012
ref: 46
H=86 M/M

HANDLEBAR

€ 113.50

46

46004016
ref: 46
H=110 M/M

HANDLEBAR

€ 69.00

47

920011405
ref: 47

BOLT,8X38

€ 10.00

48

461F0800
ref: 48

WASHER-SPRING,8MM

€ 0.50

49

46012003
ref: 49

HANDLEBAR HOLDER

€ 28.50

?

46018019
ref: ?
Includes items 50 -

CASE ASSY-R.H

€ 67.50

50

46023005
ref: 50

CASE-R.H LOWER

€ 13.00

51

46096006
ref: 51

LEVER-STARTER

€ 29.00

52

46041005
ref: 52

CASE-R.H UPPER

€ 59.50

all assemblies
