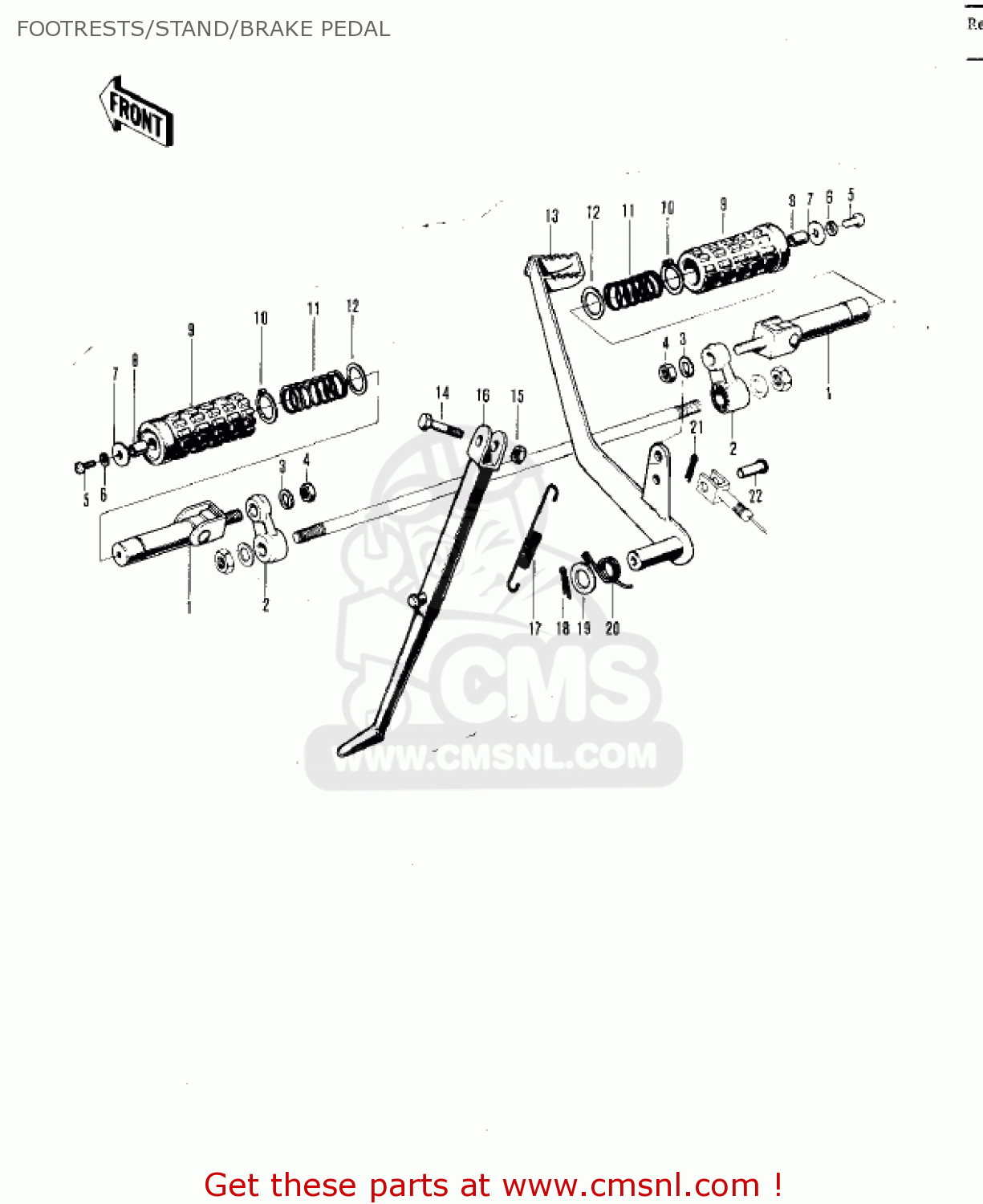

FOOTRESTS/STAND/BRAKE PEDAL

ref

part #

description

quantity

1

34002051
ref: 1
D=10

FOOTREST BAR ASSEMBLY

€ 117.00

1

34002051
ref: 1
D=12

FOOTREST BAR ASSEMBLY

€ 117.00

2

34002051
ref: 2
D=10

FOOTREST BAR ASSEMBLY

€ 117.00

2

34007009
ref: 2
D=12

BRACKET-FOOTREST BAR

€ 17.00

3

461F1000
ref: 3
NOT REQUIRED FOR 920

WASHER-SPRING,10MM

€ 0.50

4

315B1000
ref: 4

NUT,10MM

€ 0.50

4

92019009
ref: 4

NUT,LOCK,12MM

€ 5.00

5

112G0618
ref: 5

BOLT-UPSET

€ 0.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

92022125
ref: 7

WASHER,6.5X20X1.6

€ 1.00

8

92027103
ref: 8

COLLAR

€ 2.50

9

92076023
ref: 9

RUBBER-FOOTREST

€ 12.00

10

480J1600
ref: 10

CIRCLIP-TYPE-C,16MM

€ 2.50

11

34006002
ref: 11

SPRING-FOOTREST PEG

€ 3.00

12

92022049
ref: 12

WASHER-FOLDING PEG

€ 2.00

13

43001033
ref: 13

BRAKE PEDAL

€ 86.00

13

4300103610
ref: 13

PEDAL-BRAKE,BLACK

€ 38.00

14

920011252
ref: 14

BOLT,HEX HEAD,10X35

€ 3.50

15

315B1000
ref: 15

NUT,10MM

€ 0.50

16

34024025
ref: 16

STAND-SIDE

€ 34.50

17

34023005
ref: 17

SPRING-MAIN STAND

€ 6.50

18

550D3030
ref: 18

PIN-COTTER,3.0X30

€ 1.50

19

92022085
ref: 19

WASHER,15.3X24X1.2

€ 2.50

20

43005013
ref: 20

SPRING-BRAKE PEDAL

€ 6.00

21

550D2015
ref: 21

PIN-COTTER,2.0X15

€ 1.00

22

92043034
ref: 22

PIN-R BRK CABLE JOINT

€ 7.00

all assemblies
