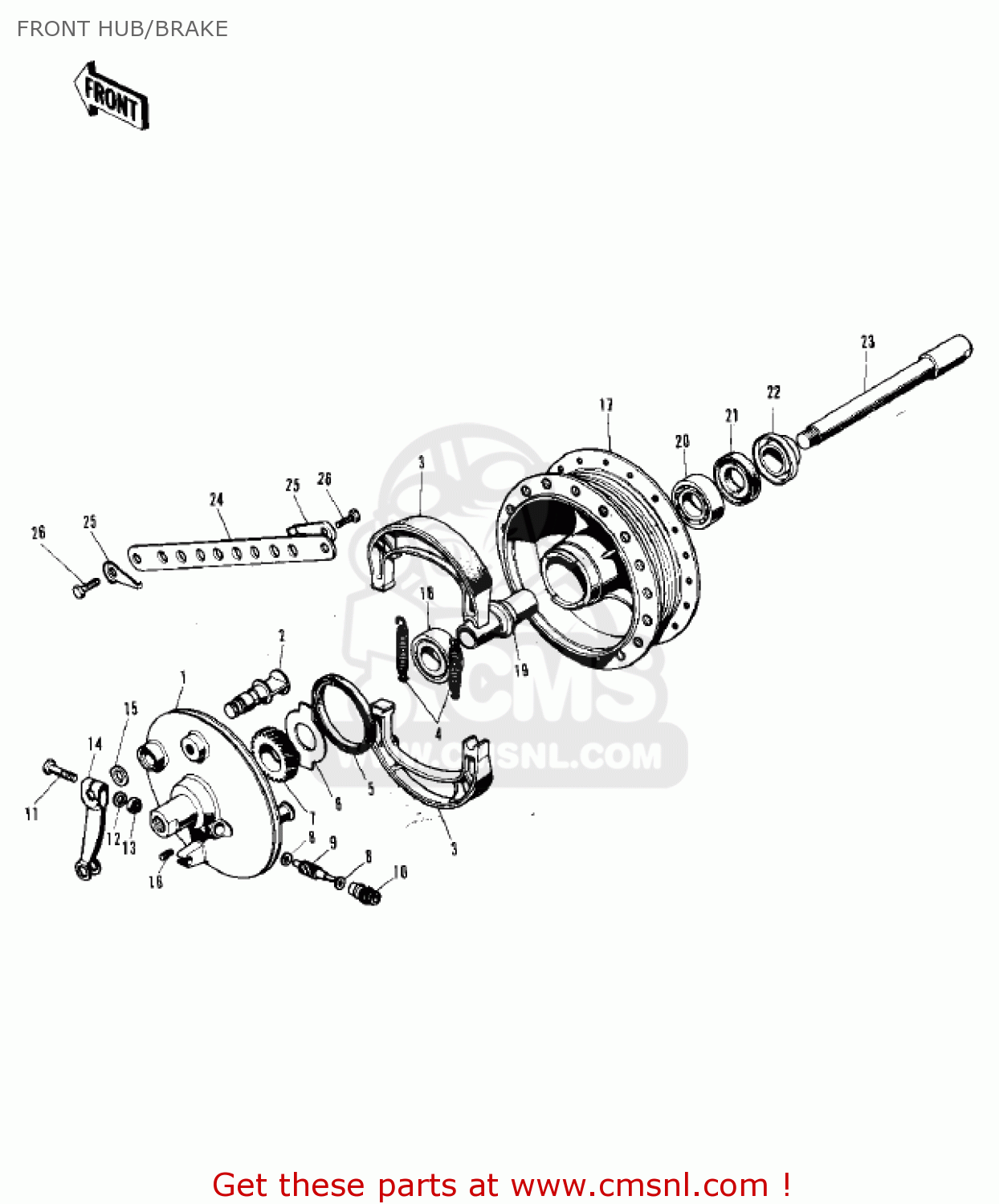

FRONT HUB/BRAKE

ref

part #

description

quantity

?

41035024
ref: ?
Includes items 1 - 1

PANEL ASSY-FRNT BRAKE

€ 82.00

1

41043025
ref: 1

PANEL-FRONT BRAKE

€ 31.00

2

42026021
ref: 2

CAM-BRAKE

€ 19.00

3

42019011
ref: 3

SHOE,BRAKE (MCA)

€ 18.50

4

42020004
ref: 4

SPRING-BRAKE SHOE

€ 5.50

5

92050010
ref: 5

OIL SEAL-F BRK PANEL

€ 13.00

6

41064003
ref: 6

RECEIVER-SPEEDOMETER

€ 7.00

7

41059011
ref: 7
28T

GEAR-SPEEDOMETER

€ 15.00

8

41063001
ref: 8

WASHER-THRST SPD PINI

€ 3.00

9

41060010
ref: 9

PINION-SPEEDOMETER

€ 13.50

10

41062001
ref: 10

BUSH-SPEEDMETER CABLE

€ 7.00

11

110B0638
ref: 11

BOLT HEX HEAD 6X38

€ 2.50

11

112G0640
ref: 11

BOLT-UPSET,6X40

€ 2.50

12

410B0600
ref: 12

WASHER-PLAIN-SMALL,6M

€ 0.50

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

42029037
ref: 14

LEVER,REAR BRAKE CAM

€ 27.50

15

41051001
ref: 15

DUST SHIELD-BRAKE CAM

€ 2.50

16

41082001
ref: 16

PIN-SPRING

€ 2.50

?

4103404880
ref: ?
Includes items 17 -

FRONT BRAKE DRUM ASSEMBLY,BUFF

€ 589.00

18

601B6202Z
ref: 18

BEARING-BALL,#6202ZC3

€ 13.00

18

41039004
ref: 18

SPACER-FR HUB BEARING

€ 6.00

20

601B6202
ref: 20

BEARING-BALL,#6202C3

€ 14.50

21

92050008
ref: 21

OIL SEAL-RR BRK DRUM

€ 10.00

22

41069004
ref: 22

COLLAR-FRONT HUB R.H

€ 3.50

23

41068029
ref: 23

AXLE-FRONT

€ 17.00

24

43007022
ref: 24

TORQUE LINK-FRONT BRK

€ 11.50

25

92088012
ref: 25

WASHER-LOCK

€ 4.50

26

92001086
ref: 26

BOLT-HEX HEAD,8X20

€ 1.50

all assemblies
