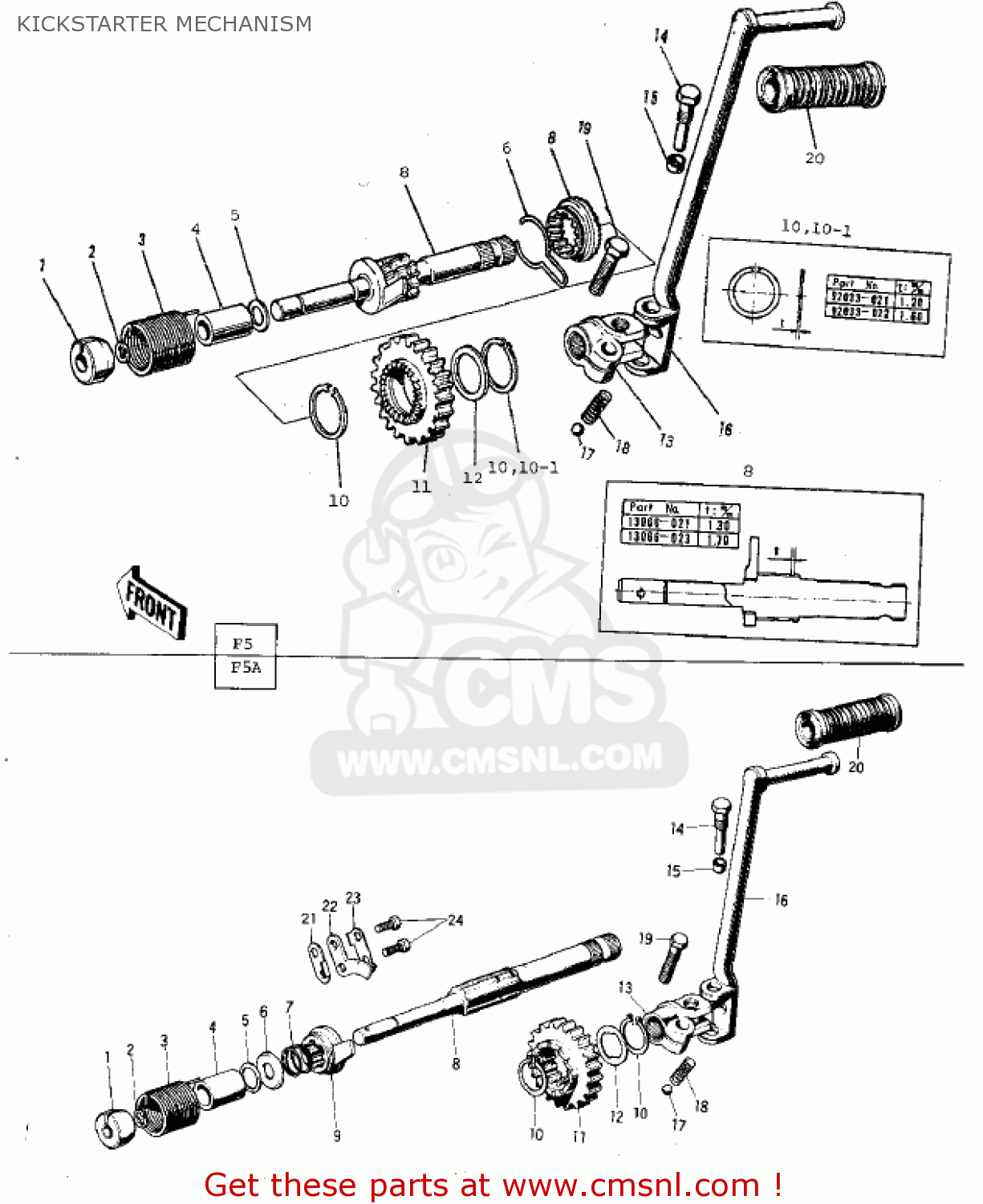

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13070001
ref: 1

GUIDE,KICK SPRING

€ 9.00

2

482J0100
ref: 2

CIRCLIP-TYPE-E,10MM

€ 0.50

3

92082002
ref: 3

SPRING-KICKSTARTER

€ 16.50

4

92027126
ref: 4

COLLAR

€ 1.50

5

92022149
ref: 5

SHIM-KICK SHAFT,0.3T

€ 2.00

5

92022150
ref: 5

SHIM-KICK SHAFT,0.5T

€ 2.00

5

92022151
ref: 5

SHIM-KICK SHAFT,0.7T

€ 1.50

6

13077002
ref: 6

HOLDER-KICK GEAR

€ 2.50

6

13077003
ref: 6
E/NO. 07269 & ABOVE

HOLDER-KICK GEAR

€ 1.00

7

92081093
ref: 7

SPRING

€ 2.00

8

13066023
ref: 8

SHAFT-KICKSTARTER

€ 48.50

8

13066026
ref: 8

SHAFT-KICKSTARTER

€ 40.50

9

13078003
ref: 9

RATCHET

€ 55.00

9

13078004
ref: 9
E/NO. 07269 & ABOVE

RATCHET

€ 75.50

10

92033021
ref: 10
2 USE FOR 13066-023

CIRCLIP

€ 12.00

10-1

92033022
ref: 10-1
USE FOR 13066-023

CIRCLIP

€ 6.50

10-1

92033026
ref: 10-1
E/NO. 07269 & ABOVE

CIRCLIP

€ 6.00

11

13068020
ref: 11

KICKSTARTER GEAR

€ 64.00

11

13068022
ref: 11
E/NO. 07269 & ABOVE

GEAR-KICKSTARTER

€ 50.00

12

92024027
ref: 12

WASHER

€ 2.50

12

92024033
ref: 12

WASHER,TOOTHED,25.5X3

€ 4.50

13-18

13058027
ref: 13-18

PEDAL-KICKSTARTER

€ 192.00

13

13061008
ref: 13

BOSS-KICK PEDAL

€ 36.50

14

92001085
ref: 14

BOLT-HEX HEAD,10MM

€ 3.00

15

92027101
ref: 15

COLLAR

€ 4.50

17

600A0800
ref: 17

BALL-STEEL,1/4

€ 0.50

18

92081020
ref: 18

SPRING-KICK PEDAL

€ 2.50

19

114B1025
ref: 19

BOLT-HEX HEAD,10X25

€ 2.50

20

13063004
ref: 20

DAMPER,KICK PEDAL

€ 6.50

21

13072010
ref: 21

STOPPER-KICKSTARTER

€ 2.50

22

13206006
ref: 22
E/NO. 07269 & ABOVE

GUIDE-KICKSTRTER

€ 3.00

23

92031006
ref: 23
E/NO. 07269 & ABOVE

WASHER-KICK STOPPER

€ 1.00

24

112G0616
ref: 24
E/NO. 07269 & ABOVE

BOLT UPSET,6X16

€ 1.00

all assemblies
