REAR HUB/BRAKE/CHAIN
F5 BIG HORN 1970 USA

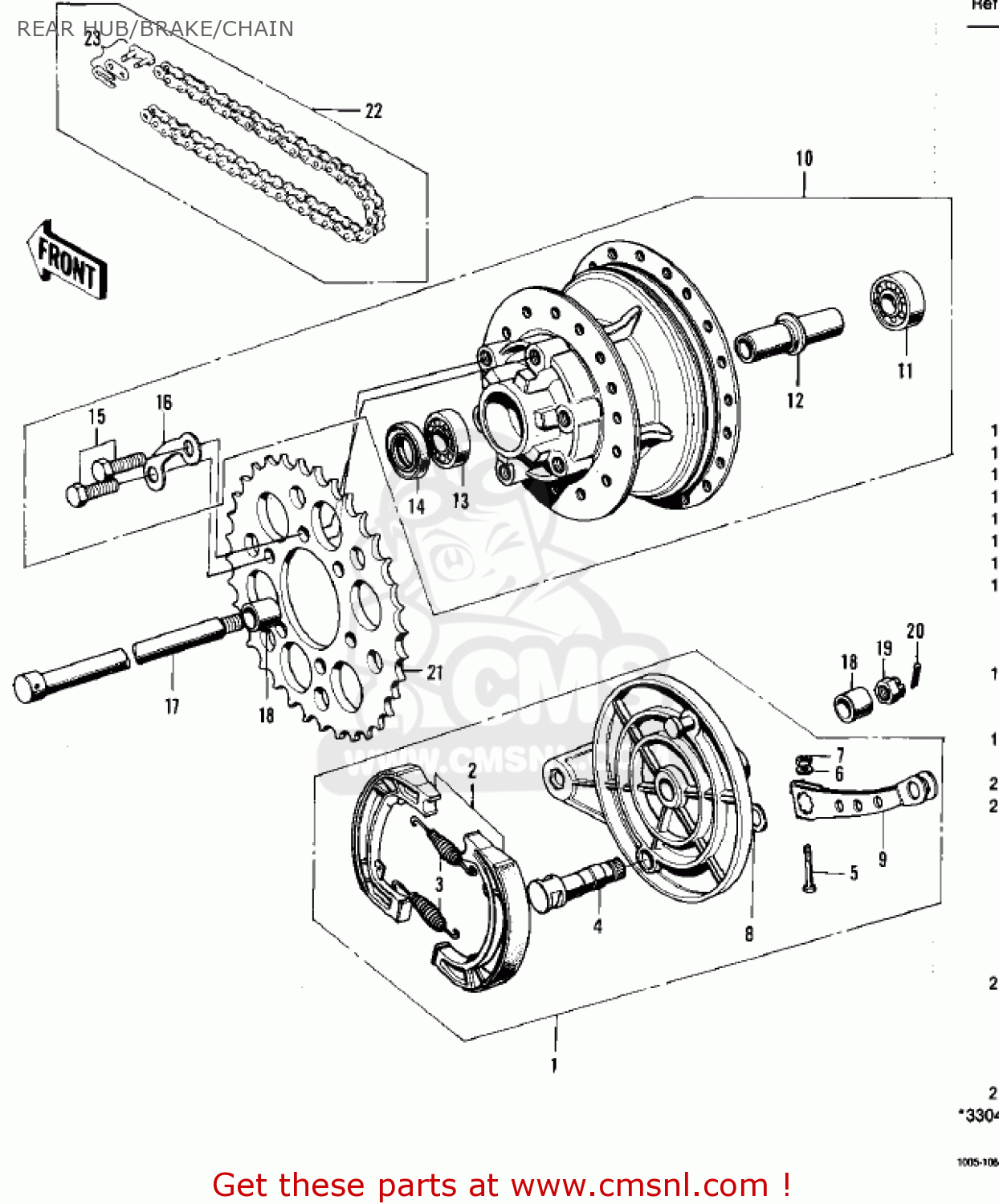

Rear hub/brake/chain diagram F5 BIG HORN 1970 USA
REAR HUB/BRAKE/CHAIN F5 BIG HORN 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
4200601621
ref: 1
REAR BRAKE PANEL ASSEMBLY,FLAT BLACK
€ 358.00
2
42019011
ref: 2
SHOE,BRAKE (MCA)
€ 18.50
2
42019011
ref: 2
SHOE,BRAKE (MCA)
€ 18.50
3
42020004
ref: 3
SPRING-BRAKE SHOE
€ 5.50
4
42026021
ref: 4
CAM-BRAKE
€ 19.00
4
42026021
ref: 4
CAM-BRAKE
€ 19.00
5
112G0640
ref: 5
BOLT-UPSET,6X40
€ 2.50
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
€ 0.50
7
311B0600
ref: 7
NUT,6MM
€ 0.50
8
41051001
ref: 8
DUST SHIELD-BRAKE CAM
€ 2.50
9
42029037
ref: 9
LEVER,REAR BRAKE CAM
€ 27.50
9
42029037
ref: 9
LEVER,REAR BRAKE CAM
€ 27.50
10
42005019
ref: 10
REAR BRAKE DRUM ASSEMBLY
€ 508.50
11
601B6303Z
ref: 11
BEARING-BALL,#6303ZC3
€ 17.50
12
42010015
ref: 12
L=116 MM
SPACER-RR HUB BEARING
€ 9.50
13
601B6303
ref: 13
BEARING-BALL,#6303C3
€ 24.00
14
654A254708
ref: 14
OIL SEAL-FRONT AXLE
€ 17.00
15
92001087
ref: 15
BOLT-HEX HEAD,10X25
€ 3.00
16
92088007
ref: 16
WASHER,LOCK
€ 8.00
17
42031030
ref: 17
F5
AXLE-REAR
€ 33.00
17
42031030
ref: 17
F5-A
AXLE-REAR
€ 33.00
17
42031036
ref: 17
AXLE,REAR
€ 61.00
18
42032020
ref: 18
F5, USE W/33040-033
REAR AXLE COLLAR
€ 20.00
18
42032020
ref: 18
F5, USE W/33040-033
REAR AXLE COLLAR
€ 20.00
18
42032031
ref: 18
F9 USE W/33040-043
COLLAR-REAR AXLE
€ 7.00
18
42032031
ref: 18
F9 USE W/33040-043
COLLAR-REAR AXLE
€ 7.00
19
42045014
ref: 19
NUT CASTLE, 16M/M
€ 6.50
19
42045014
ref: 19
NUT CASTLE, 16M/M
€ 6.50
20
550D4035
ref: 20
PIN-COTTER,4.0X35
€ 1.00
21
42041080
ref: 21
STD
REAR SPROCKET 41T
€ 49.00
21
42041111
ref: 21
REAR SPROCKET 41T
€ 52.50
21
42041089
ref: 21
OPTION
REAR SPROCKET 43T
€ 41.50
21
42041112
ref: 21
REAR SPROCKET 43T
€ 52.00
21
42041088
ref: 21
OPTION
REAR SPROCKET
€ 43.00
21
42041113
ref: 21
REAR SPROCKET 45T
€ 75.00
21
42041090
ref: 21
OPTION
REAR SPROCKET 47T
€ 62.50
21
42041114
ref: 21
REAR SPROCKET,47T
€ 254.50
22
695X5292
ref: 22
F5~F/NO 03245
CHAIN ASSY-DRIVE 92L
€ 31.00
22
695X5292
ref: 22
SPECIAL GREASE
CHAIN ASSY-DRIVE 92L
€ 31.00
22
695Z5294
ref: 22
F/NO 03246~
UNAVAILABLE IN PRICE BOOK
€ 26.50
22
92057029
ref: 22
SPECIAL GREASE
CHAIN ASSY,DRIVE,94L
€ 26.50
23
92058006
ref: 23
JOINT-DRIVE CHAIN
€ 4.00
