TAILLIGHT
F5 BIG HORN 1970 USA

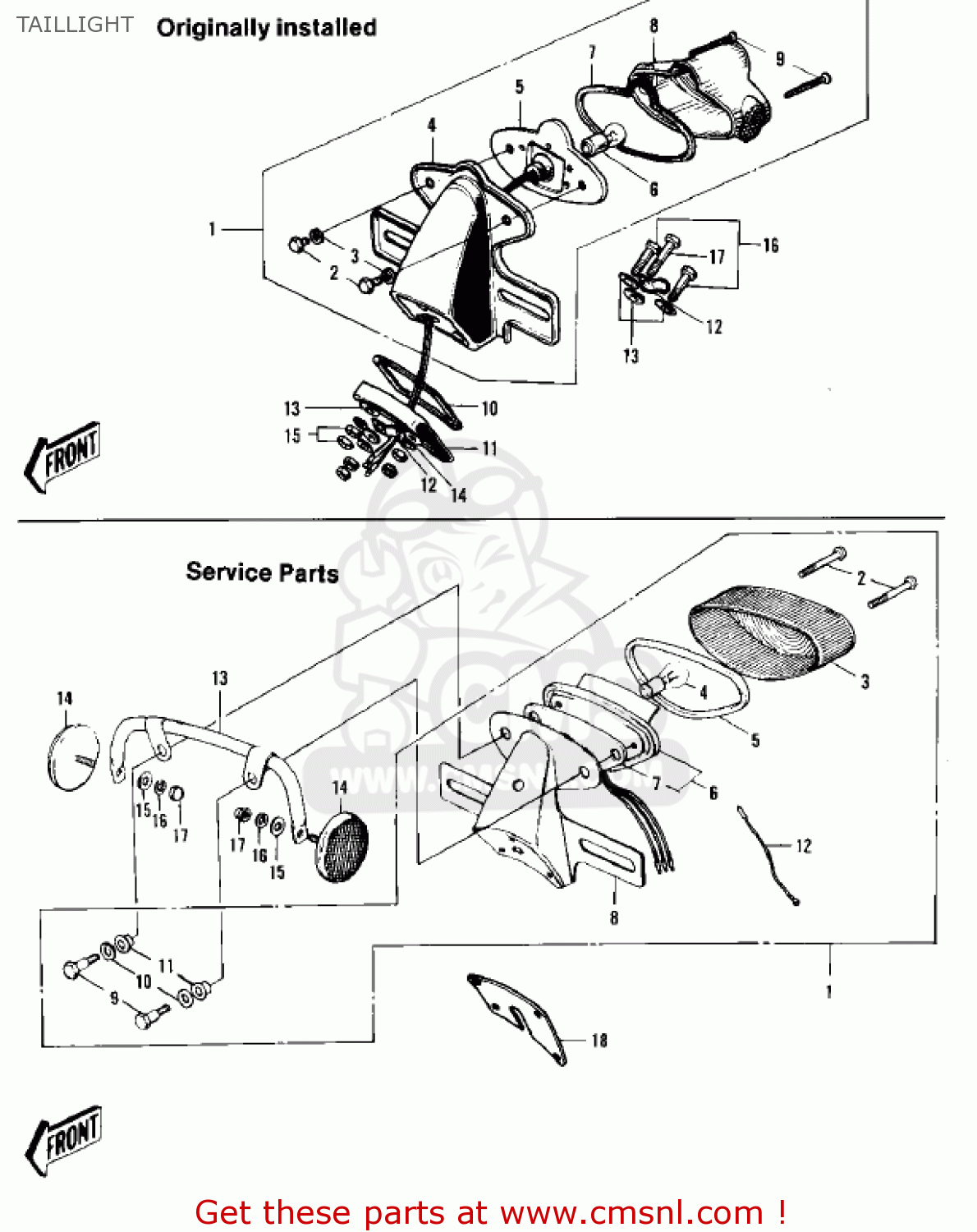

Taillight diagram F5 BIG HORN 1970 USA
TAILLIGHT F5 BIG HORN 1970 USA
×
prices are in EUR
ref
part #
description
quantity
1
2302401921
ref: 1
ORIGINALLY INSTALLED
LAMP ASSY-TAIL,BLACK
€ 99.00
2
110N0510A
ref: 2
ORIGINALLY INSTALLED
BOLT-HEX HEAD,5X10
€ 2.00
3
461F0500
ref: 3
ORIGINALLY INSTALLED
WASHER-SPRING,5MM
€ 0.50
4
2303600710
ref: 4
ORIGINALLY INSTALLED
BKT-LICENSE PLT,BLACK
€ 33.00
5
23027009
ref: 5
ORIGINALLY INSTALLED
SOCKET-TAIL LAMP
€ 18.00
6
92069023
ref: 6
ORIGINALLY INSTALLED
BULB 6V 3/21CP
€ 4.00
7
23028008
ref: 7
ORIGINALLY INSTALLED
GASKET-TAIL LAMP (NAS)
€ 4.00
8
23026010
ref: 8
ORIGINALLY INSTALLED
LENS,TAIL LAMP
€ 64.50
9
220E0450
ref: 9
ORIGINALLY INSTALLED
SCREW-PAN HEAD,4X50
€ 3.00
10
35016004
ref: 10
ORIGINALLY INSTALLED
DAMPER RUBBER
€ 1.50
11
35031005
ref: 11
ORIGINALLY INSTALLED
STAY-TAIL LAMP
€ 7.00
12
35024002
ref: 12
ORIGINALLY INSTALLED
CLAMP,WIRING HARNESS
€ 2.00
13
92022125
ref: 13
ORIGINALLY INSTALLED
WASHER,6.5X20X1.6
€ 1.00
14
461F0600
ref: 14
ORIGINALLY INSTALLED
WASHER-SPRING,6MM
€ 0.50
15
312B0600
ref: 15
ORIGINALLY INSTALLED
NUT,6MM
€ 0.50
16
110N0632
ref: 16
ORIGINALLY INSTALLED
BOLT,6X32
€ 2.50
17
112G0640
ref: 17
ORIGINALLY INSTALLED
BOLT-UPSET,6X40
€ 2.50
1
2302401921
ref: 1
SERVICE PARTS ONLY
LAMP ASSY-TAIL,BLACK
€ 99.00
2
220R0455
ref: 2
SERVICE PARTS ONLY
SCREW-PAN-CROS
€ 3.50
2
220R0455
ref: 2
SERVICE PARTS ONLY
SCREW-PAN-CROS
€ 3.50
3
23026022
ref: 3
SERVICE PARTS ONLY
LENS,TAIL LAMP
€ 47.50
4
92069023
ref: 4
SERVICE PARTS ONLY
BULB 6V 3/21CP
€ 4.00
5
23028016
ref: 5
SERVICE PARTS ONLY
GASKET-TAIL LAMP LENS (NAS)
€ 7.00
6
23027029
ref: 6
SERVICE PARTS ONLY
CASE-TAIL LAMP
€ 24.50
7
23028015
ref: 7
SERVICE PARTS ONLY
GASKET-TAIL LAMP CASE (NAS)
€ 6.50
8
2303601421
ref: 8
SERVICE PARTS ONLY
BKT-LICENSE PLT,BLACK
€ 25.50
9
92001111
ref: 9
SERVICE PARTS ONLY
BOLT
€ 6.50
10
920221561
ref: 10
SERVICE PARTS ONLY
WASHER,8.5X20X1.6
€ 2.50
11
92075091
ref: 11
SERVICE PARTS ONLY
DAMPER RUBBER
€ 1.50
12
26011014
ref: 12
SERVICE PARTS ONLY
WIRE-IGNITION LEAD
€ 1.00
13
28013002
ref: 13
SERVICE PARTS ONLY
BRACKET-REFLECTOR
€ 8.50
14
28012008
ref: 14
SERVICE PARTS ONLY
REFLECTOR-REFLEX,REAR
€ 8.50
15
411B0500
ref: 15
SERVICE PARTS ONLY
WASHER-PLAIN,5MM
€ 0.50
16
461F0500
ref: 16
SERVICE PARTS ONLY
WASHER-SPRING,5MM
€ 0.50
17
322N0500
ref: 17
SERVICE PARTS ONLY
NUT-CAP,5MM
€ 2.00
18
35039005
ref: 18
SERVICE PARTS ONLY
DAMPER,TAIL LAMP
€ 6.50
