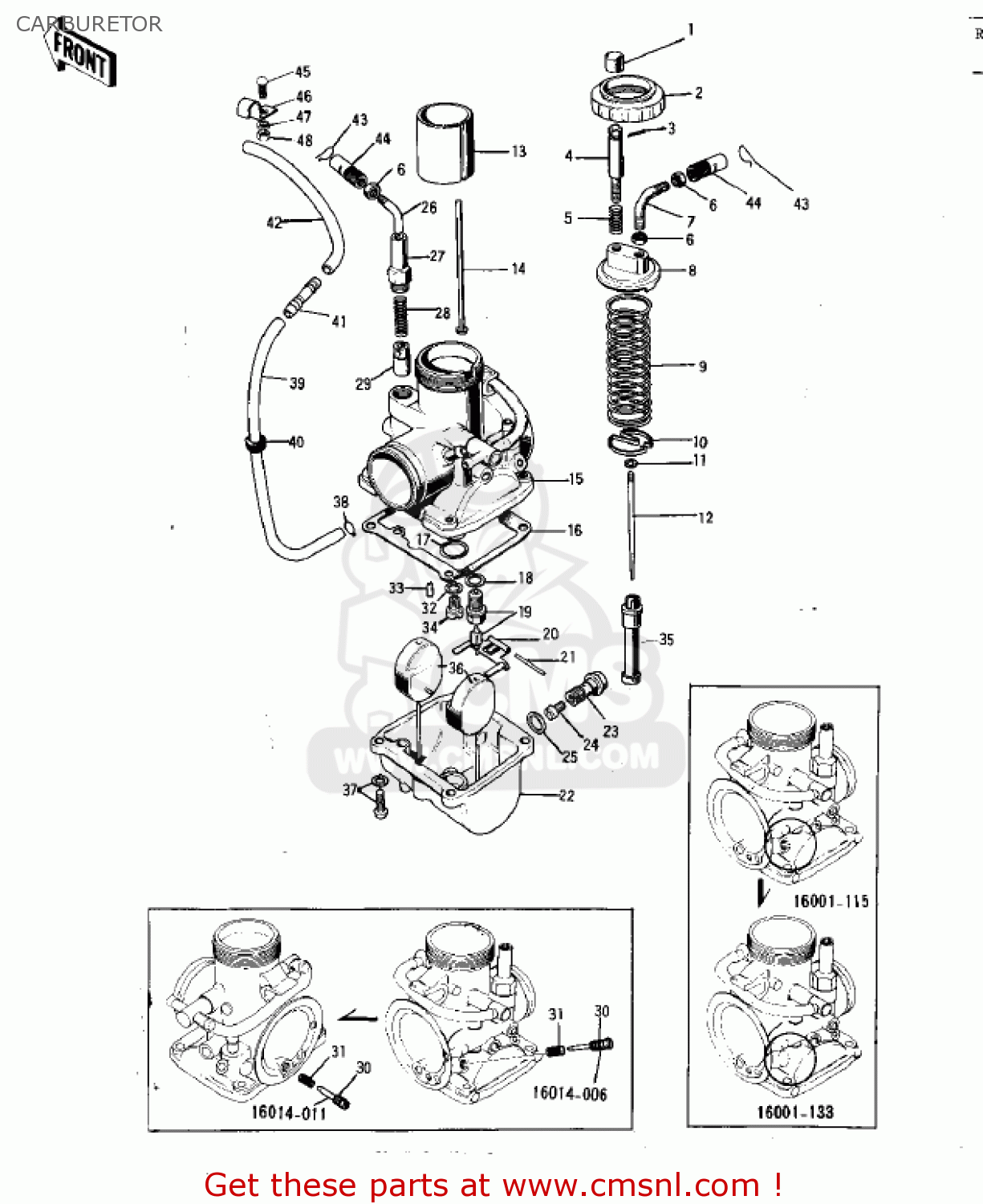

CARBURETOR

ref

part #

description

quantity

?

16001133
ref: ?
Includes items 1 - 3

CARBURETOR ASSY

€ 287.00

1

16037002
ref: 1

CAP,PILOT SCREW

€ 4.50

2

16004015
ref: 2

MIXING CHAMBER CAP

€ 25.00

3

550D1210
ref: 3

PIN-COTTER,1.2X10

€ 1.50

4

16021009
ref: 4

SCREW-THROTTLE STOP

€ 4.50

5

16022005
ref: 5

SPRING-THR STOP SCREW

€ 5.50

6

16003004
ref: 6

NUT-CABLE ADJUST LOCK

€ 4.50

7

16077001
ref: 7

GUIDE,CABLE

€ 6.50

8

16005022
ref: 8

TOP-MIXING CHAMBER

€ 15.50

9

16006016
ref: 9

SPRING-THROTTLE VALVE

€ 12.50

10

16007014
ref: 10

THROTTLE VALVE SPRING SEAT

€ 12.00

11

16008010
ref: 11

CLAMP,E-TYPE

€ 5.00

12

16009035
ref: 12

JET,NEEDLE,#F5L-11

€ 26.50

12

16009038
ref: 12

JET,NEEDLE,#5EJ8

€ 17.50

12

16009045
ref: 12
E/NO. 07269

JET NEEDLE 5EJ11

€ 9.50

13

16025033
ref: 13

THROTTLE VALVE

€ 95.50

13

16025040
ref: 13
E/NO. 07269

VALVE-THROTTLE CA1.0

€ 38.50

14

16024008
ref: 14

ROD-THROTTLE VLV STOP

€ 3.00

16

16019015
ref: 16

GASKET-FLOAT CHAMBER (MCA)

€ 9.00

17

92055042
ref: 17

V-RING

€ 23.50

18

16029004
ref: 18

WASHER-FLOAT VLV SEAT

€ 2.50

19

16030013
ref: 19

FLOAT VALVE ASSEMBLY

€ 61.00

20

16140001
ref: 20

FLOAT ARM

€ 9.50

21

16032005
ref: 21
L=31 M/M

FLOAT PIN

€ 8.00

23

92001097
ref: 23

BOLT-BANJO

€ 15.50

24

92063103
ref: 24
STD

MAIN JET,#132.5R

€ 8.50

24

92063104
ref: 24
OPTION

JET-MAIN,#135R

€ 8.50

25

16034005
ref: 25

WASHER,BANJO BOLT (MCA)

€ 3.00

26

16077005
ref: 26

CABLE GUIDE

€ 3.50

27

16012013
ref: 27

CAP-STARTER PLUNGER

€ 3.00

28

16013003
ref: 28

SPRING-STARTER PLUNG

€ 4.00

29

16016002
ref: 29

PLUNGER,STARTER

€ 20.00

30

16014006
ref: 30

SCREW-PILOT AIR

€ 9.00

30

16014011
ref: 30
E/NO. 07269

SCREW-PILOT AIR ADJST

€ 2.50

31

16022007
ref: 31

SPRING-THR STOP SCREW

€ 5.50

32

16034001
ref: 32

WASHER-MAIN JET

€ 2.50

33

92064023
ref: 33

JET-PILOT,#35

€ 13.00

33

92064033
ref: 33
E/NO. 07269

JET-PILOT,#12.5

€ 9.00

34

92063102
ref: 34

JET,MAIN,#2.4R

€ 11.50

35

16017042
ref: 35

JET,NEEDLE,#0-8

€ 25.00

36

160311062
ref: 36

FLOAT

€ 35.50

36

160311062
ref: 36

FLOAT

€ 35.50

37

223B0414
ref: 37

SCREW PAN-WS-CROS

€ 2.50

38

92037010
ref: 38

CLAMP-FUEL PIPE

€ 2.50

39

92059065
ref: 39

PIPE

€ 22.00

40

92071038
ref: 40

GROMMET,PIPE

€ 2.50

41

92005003
ref: 41

NIPPLE

€ 2.00

42

92059002
ref: 42

PIPE-OIL TANK

€ 22.00

43

92036018
ref: 43

CIRCLIP

€ 2.50

44

16002007
ref: 44

ADJUSTER-CABLE,THROTT

€ 7.50

45

220B0614
ref: 45

SCREW-PAN HEAD,6X14

€ 2.00

46

92037020
ref: 46

CLAMP-CABLE

€ 1.50

47

461F0600
ref: 47

WASHER-SPRING,6MM

€ 0.50

48

311B0600
ref: 48

NUT,6MM

€ 0.50
