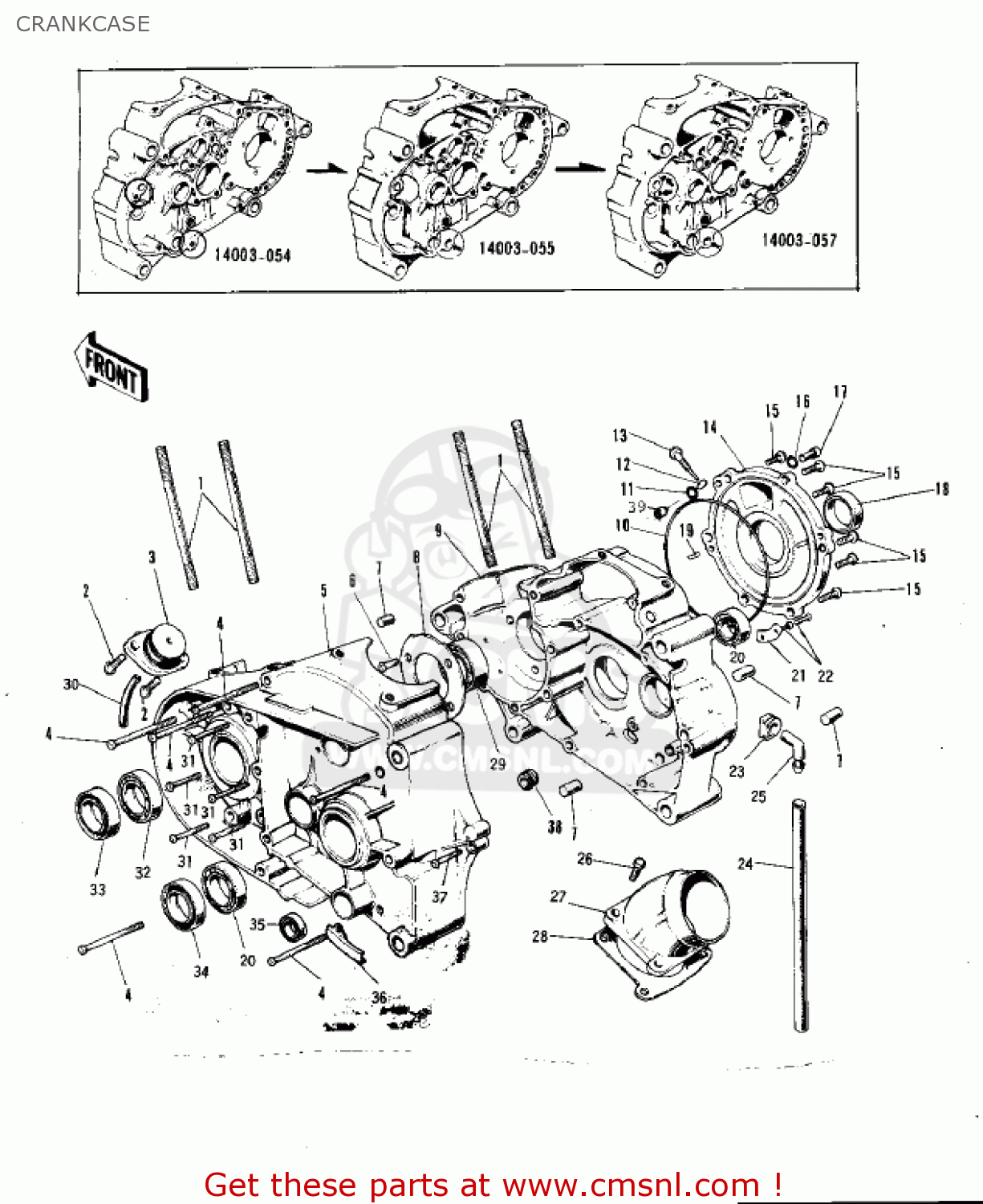

CRANKCASE

ref

part #

description

quantity

1

172G1075
ref: 1

STUD,10X75

€ 8.00

2

220B0616
ref: 2

SCREW-PAN HEAD,6X16

€ 2.50

3

16137002
ref: 3

PUMP,FUEL DRIN

€ 69.00

4

220B0675
ref: 4

SCREW,PAN HEAD,6X75

€ 3.00

5

14001065
ref: 5

CRANKCASE SET

€ 306.00

6

221B0616
ref: 6

SCREW-CNTSNK HD,6X16

€ 0.50

7

920431037
ref: 7

PIN,DOWEL,10X8.2X14

€ 0.50

8

14014019
ref: 8

HOLDER-CRANK BEARING

€ 5.50

9

14003054
ref: 9

CRANKCASE,RH

€ 326.50

9

14001065
ref: 9

CRANKCASE SET

€ 306.00

10

92055039
ref: 10

'O' RING 134.5MM

€ 9.00

11

670B1505
ref: 11

O RING,5MM

€ 1.00

12

92055011
ref: 12

'O' RING 5MM

€ 4.00

13

92062004
ref: 13

NOZZLE-OIL INJECTION

€ 7.00

14

14019044
ref: 14

ROTARY DISC VALVE COVER

€ 100.00

15

220B0620
ref: 15

SCREW-PAN HEAD,6X20

€ 2.50

16

92055037
ref: 16

RING-O,CHECK VALVE

€ 2.50

17

16128006
ref: 17

VALVE-CHECK

€ 7.50

18

653B354808
ref: 18

OIL SEAL,TB35488

€ 12.50

19

610A0512
ref: 19

ROLLER,5X12

€ 3.00

20

601B6205
ref: 20

BEARING-BALL,#6205C3

€ 14.00

21

14014020
ref: 21

HOLDER-MISSION BERNG

€ 1.00

22

220B0614
ref: 22

SCREW-PAN HEAD,6X14

€ 2.00

23

92071042
ref: 23

GROMMET

€ 2.50

24

92059061
ref: 24

PIPE-BREATHER

€ 3.00

25

140691001
ref: 25

BREATHER

€ 17.50

26

112G0620
ref: 26

BOLT 6X20

€ 1.00

26

112G0620
ref: 26

BOLT 6X20

€ 1.00

27

11015021
ref: 27

INLET PIPE

€ 18.00

28

11017005
ref: 28

GASKET-INLET PIPE (NAS)

€ 1.50

29

92045016
ref: 29

BEARING-BALL,#SC0626C

€ 36.00

30

92059031
ref: 30

PIPE-FUEL OVERFLOW

€ 1.50

31

220B0650
ref: 31

SCREW-PAN HEAD,6X50

€ 2.00

32

601B6305
ref: 32

BEARING-BALL,#6305C3

€ 30.00

33

920491250
ref: 33

SEAL-OIL

€ 12.00

34

92050033
ref: 34

SEAL-OIL,TB3040

€ 14.00

35

92049004
ref: 35

OIL SEAL SB12205

€ 6.00

36

14076001
ref: 36

COVER-WIRING HARNESS

€ 1.50

37

220B0630
ref: 37

SCREW-PAN HEAD,6X30

€ 2.50

38

92071015
ref: 38
E/NO. 07233

HARNESS GROMMET,13MM

€ 1.50

39

92062008
ref: 39

NOZZLE

€ 7.00

all assemblies
