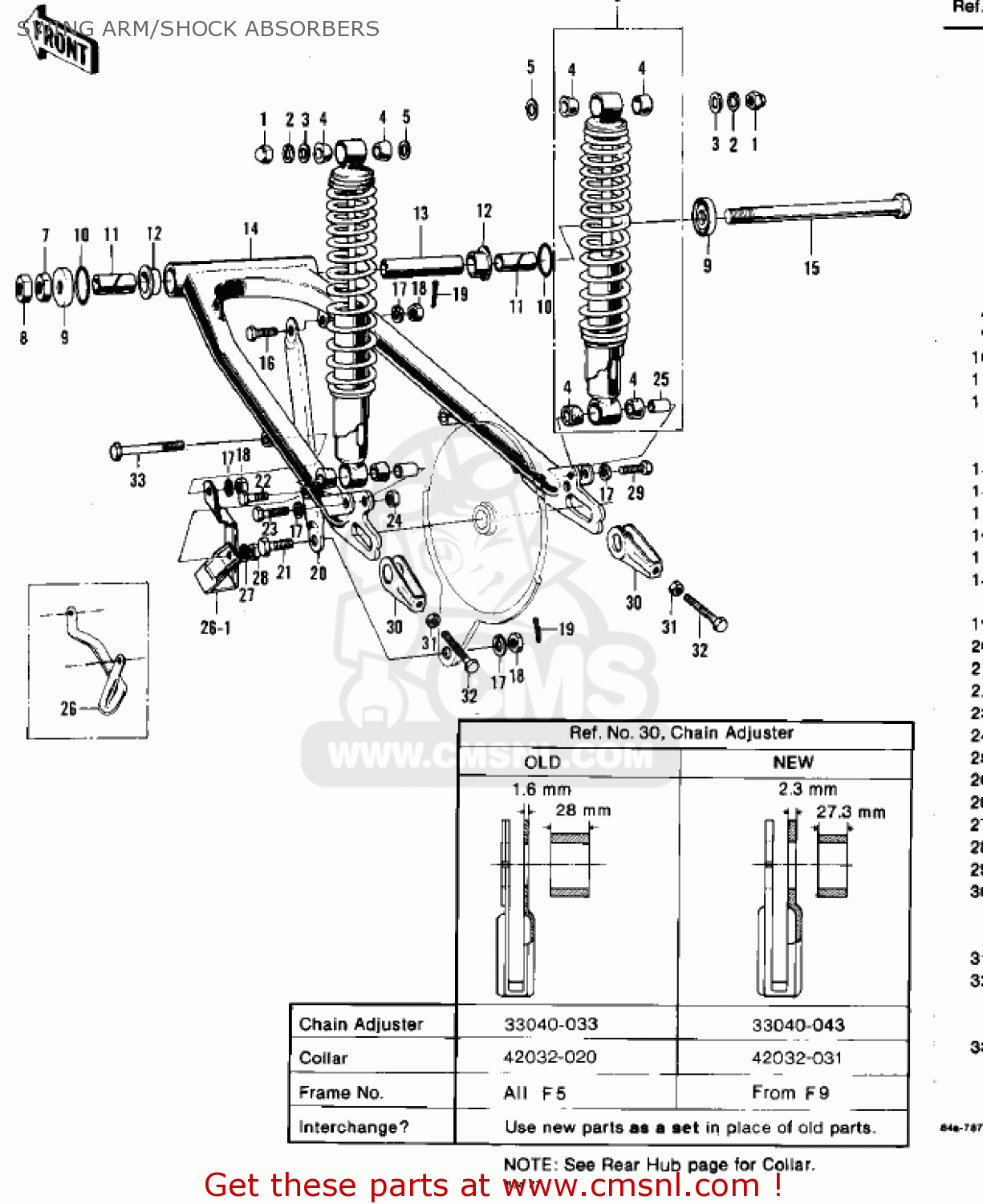

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

92022044
ref: 3
I.D.=10.5 MM

WASHER,10.5X26X2.3

€ 2.50

4

45017003
ref: 4

BUSH-SHOCK ABSORBER

€ 1.50

4

45017005
ref: 4

BUSH-SHOCK ABSORBER

€ 2.50

5

410B1200
ref: 5
I.D.=12.5 MM

WASHER-PLAIN-SMALL,12

€ 0.50

6

45014069
ref: 6
ALL F5/F5-A

SHOCK ABSORBER-REAR

€ 71.50

6

45014069
ref: 6
FROM F9

SHOCK ABSORBER-REAR

€ 71.50

7

314B1400
ref: 7

NUT,14MM

€ 1.00

8

315B1400
ref: 8

NUT,14MM

€ 1.00

9

33035004
ref: 9

CAP-SWING ARM

€ 2.00

10

671B2530
ref: 10

O RING,30MM

€ 3.00

11

33034013
ref: 11
L=43 MM

SLEEVE-SWING ARM,SHRT

€ 20.50

12

33033009
ref: 12

BUSHING,SWING ARM

€ 57.00

13

33034012
ref: 13
L=117.5 MM

SLEEVE-SWING ARM,LONG

€ 7.50

14

33001028
ref: 14

ARM-SWING

€ 94.50

15

33032025
ref: 15

SHAFT-SWING ARM PIVOT

€ 9.00

16

92003017
ref: 16

BOLT-TRQ LINK 10X25

€ 3.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

314B1000
ref: 18

NUT,10MM

€ 0.50

19

550D2015
ref: 19

PIN-COTTER,2.0X15

€ 1.00

20

43007018
ref: 20

TORQUE LINK,REAR BRK

€ 8.50

21

92003003
ref: 21

BOLT-HEX HEAD,10X32

€ 4.00

22

110N0632
ref: 22

BOLT,6X32

€ 2.50

23

113N1045
ref: 23

BOLT HEX HEAD 10X45

€ 6.00

24

315B1000
ref: 24

NUT,10MM

€ 0.50

25

45016003
ref: 25

COLLAR,SHOCKABSORBER

€ 12.50

26

55020004
ref: 26
ALL F5/F5-A

CHAIN GUARD

€ 25.00

26-1

55020009
ref: 26-1
FROM F9

GUARD-CHAIN

€ 9.00

27

461F0800
ref: 27

WASHER-SPRING,8MM

€ 0.50

28

311B0800
ref: 28

NUT,8MM

€ 0.50

29

113N1035
ref: 29

BOLT-HEX HEAD,10X35

€ 6.00

30

33040033
ref: 30
USE W/42032-020

ADJUSTER-CHAIN R.H

€ 16.00

30

33040043
ref: 30
USE W/42032-031

ADJUSTER-CHAIN

€ 20.50

31

312B0800
ref: 31

NUT,8MM

€ 0.50

32

920011399
ref: 32

BOLT,8X50

€ 6.00

33

920011254
ref: 33

BOLT,HEX HEAD,10X50

€ 2.50
