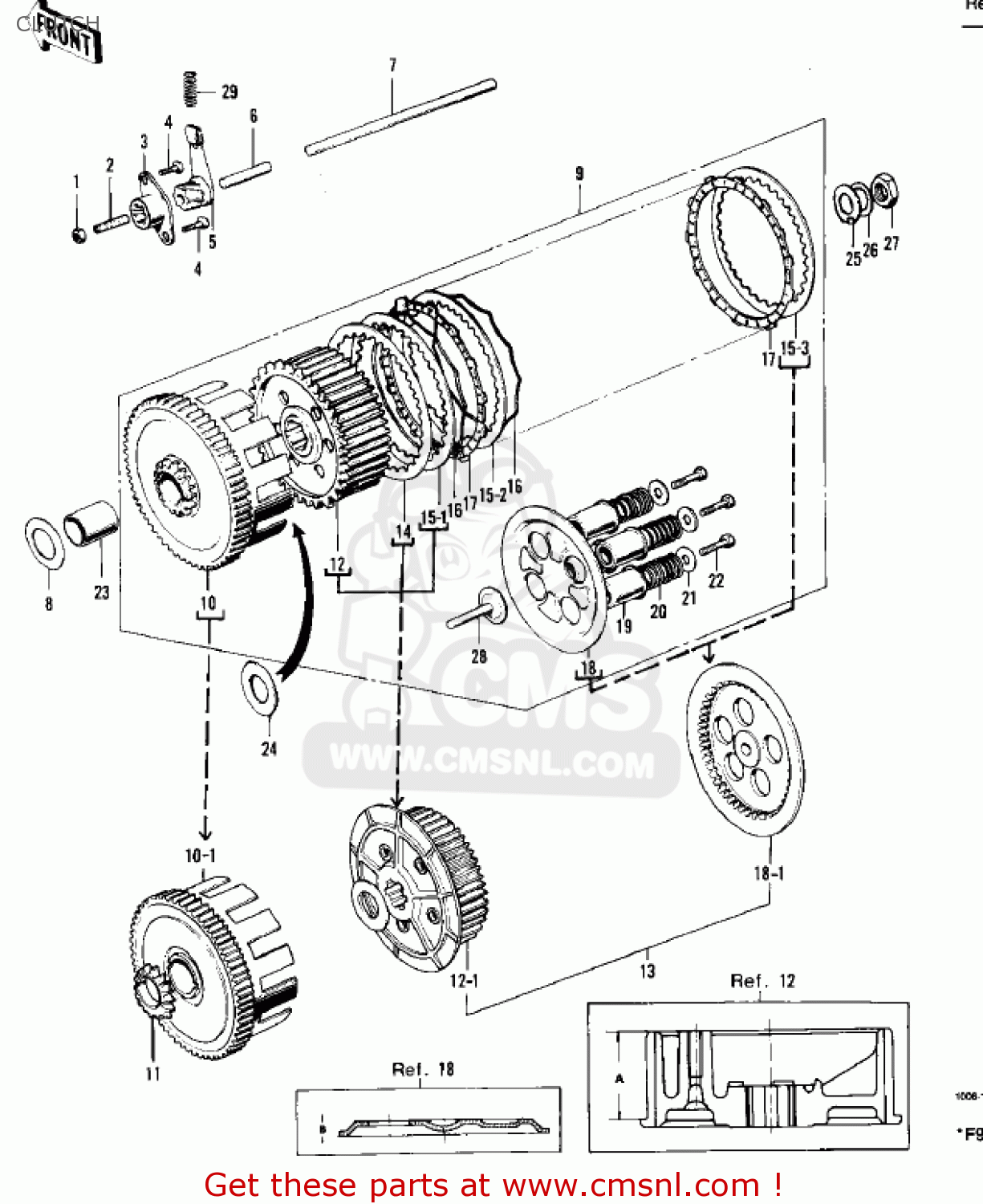

CLUTCH

ref

part #

description

quantity

1

311B0600
ref: 1

NUT,6MM

€ 0.50

2

291Z0622
ref: 2
E/NO. 06540

SCREW-SLOTTED,6X22

€ 5.50

2

92014011
ref: 2
E/NO. 06541

SCREW-SLOTTED,6X22

€ 6.50

3

13118005
ref: 3

RELEASE OUTER-CLUTCH

€ 12.50

4

220B0614
ref: 4

SCREW-PAN HEAD,6X14

€ 2.00

5

13102010
ref: 5

RELEASE INNER-CLUTCH

€ 24.00

6

13116013
ref: 6
L=79 MM

ROD-CLUTCH PUSH,SHORT

€ 11.50

7

13116012
ref: 7
L=152 MM

ROD-CLUTCH PUSH,LONG

€ 11.50

8

92022145
ref: 8

WASHER-CLUTCH THRUST

€ 4.50

9

13081029
ref: 9
E/NO. 06540

CLUTCH ASSY

€ 226.50

9

13081035
ref: 9
E/NO. 06541

CLUTCH ASSY

€ 226.50

9

13081042
ref: 9
FROM F9

CLUTCH ASSY

€ 226.50

10

13095021
ref: 10
E/NO. 06540

UNAVAILABLE IN PRICE BOOK

€ 172.00

10-1

13095027
ref: 10-1
E/NO. 06541

HOUSING-CLUTCH

€ 172.00

11

13075007
ref: 11
E/NO. 06541

PINION-KICKSTARTER

€ 62.00

12

13087014
ref: 12
E/NO. 06540

CLUTCH HUB

€ 38.00

12

13087030
ref: 12
E/NO. 06541

HUB-CLUTCH

€ 51.00

12-1

13087030
ref: 12-1
13090-011 & 1 EA 130

HUB-CLUTCH

€ 51.00

13

13084005
ref: 13
CONTAINS 13087-030

HUB SET-CLUTCH

€ 38.00

14

13090011
ref: 14

PLATE-CLUTCH OUTER (NAS)

€ 6.50

15-1

13089013
ref: 15-1
NOT REQ'D FOR 13807-

PLATE-CLUTCH,T=1.6 (NAS)

€ 6.50

15-2

13089013
ref: 15-2

PLATE-CLUTCH,T=1.6 (NAS)

€ 6.50

15-3

13089013
ref: 15-3
NOT REQ'D FOR 13187-

PLATE-CLUTCH,T=1.6 (NAS)

€ 6.50

16

13229003
ref: 16

RING-CLUTCH STEEL

€ 7.50

16

13229003
ref: 16

RING-CLUTCH STEEL

€ 7.50

17

13088021
ref: 17

PLATE-CLUTCH FRICTION (MCA)

€ 11.50

18

13187005
ref: 18
E/NO. 06540

PLATE-CLUTCH SPRING (NAS)

€ 26.50

18

13187005
ref: 18
E/NO. 06541

PLATE-CLUTCH SPRING (NAS)

€ 26.50

18-1

13187005
ref: 18-1
1 EA 13089-013 NOT R

PLATE-CLUTCH SPRING (NAS)

€ 26.50

19

13092005
ref: 19

GUIDE-CLUTCH SPRING

€ 7.50

20

92081042
ref: 20

SPRING-CLUTCH

€ 4.50

21

13091009
ref: 21

HOLDER-CLUTCH SPRING

€ 2.50

22

112G0618
ref: 22

BOLT-UPSET

€ 0.50

23

92028081
ref: 23

BUSH

€ 6.50

24

92026022
ref: 24

SPACER,25.5X47X2.5

€ 6.50

25

92022074
ref: 25

WASHER-PLAIN,18MM

€ 1.50

26

463G1800
ref: 26

WASHER-LOCK,18MM

€ 2.00

27

92015019
ref: 27

NUT,18MM

€ 4.00

28

13116011
ref: 28

PUSHER-CLTCH SPRG PLT

€ 23.00

29

92081069
ref: 29

SPRING-CLUTCH RELEASE

€ 4.50

all assemblies
