TRANSMISSION
ZX500D1 ZZR550 1993 AUSTRIA GR

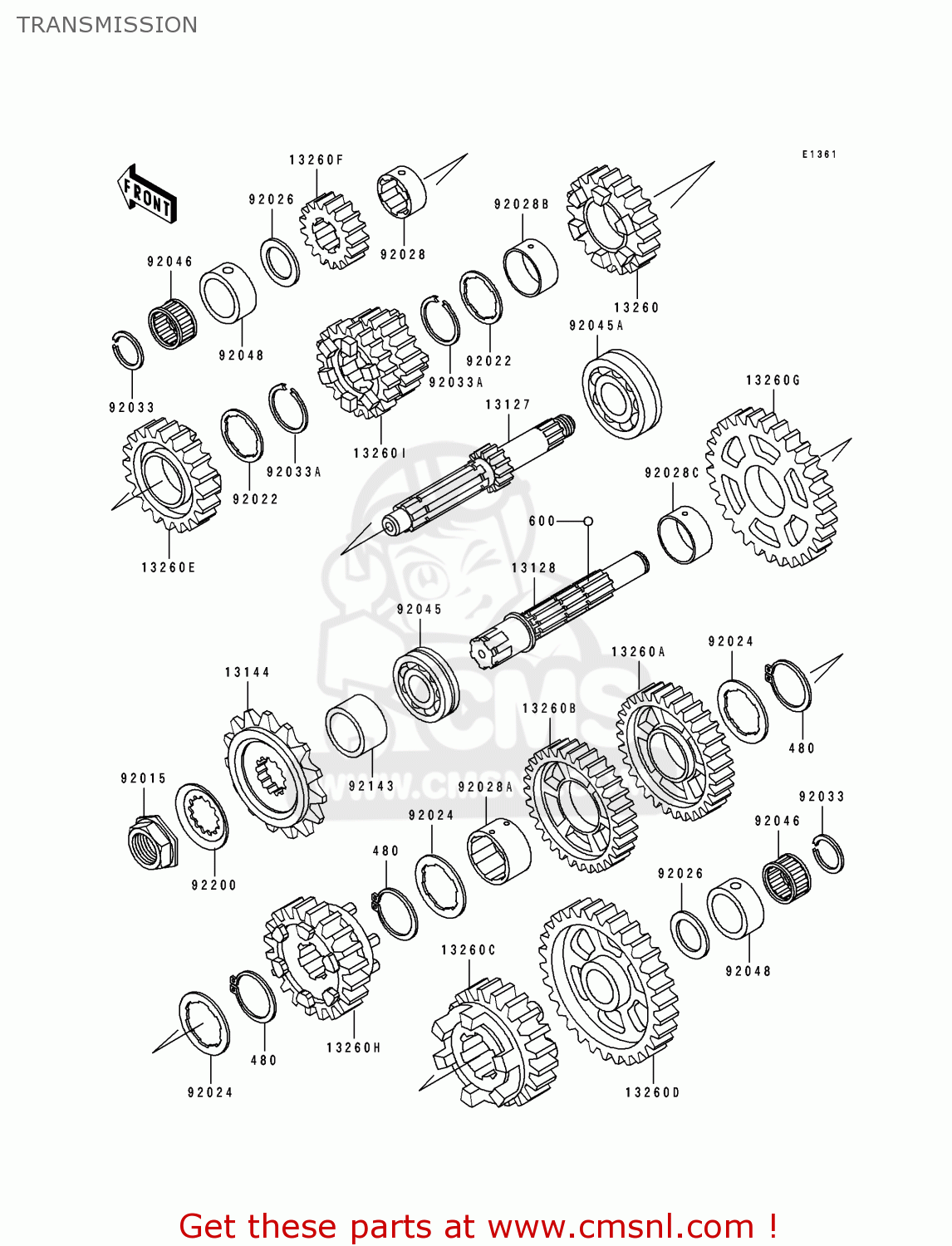

Transmission diagram ZX500D1 ZZR550 1993 AUSTRIA GR
TRANSMISSION ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271230
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.00
13128
131281194
ref: 13128
SHAFT-TRANSMISSION OU
€ 175.00
13144
131441212
ref: 13144
SPROCKET-OUTPUT,16T
€ 35.50
13260
132601026
ref: 13260
GEAR,INPUT 5TH,23T
€ 59.50
13260A
132601028
ref: 13260A
GEAR,OUTPUT 3RD,35T
€ 108.50
13260B
132601029
ref: 13260B
GEAR,OUTPUT 4TH,29T
€ 129.00
13260C
132601030
ref: 13260C
GEAR,OUTPUT 5TH,28T
€ 125.50
13260D
132601125
ref: 13260D
GEAR,OUTPUT LOW,38T
€ 34.00
13260E
132601323
ref: 13260E
GEAR,INPUT TOP,24T
€ 70.50
13260F
132601334
ref: 13260F
GEAR,INPUT 2ND,16T
€ 45.00
13260G
132601379
ref: 13260G
GEAR,OUTPUT 2ND,34T
€ 90.50
13260H
132601380
ref: 13260H
GEAR,OUTPUT TOP,26T
€ 102.50
13260I
132601381
ref: 13260I
GEAR,INPUT 3RD&4TH,21
€ 122.00
92015
920151254
ref: 92015
NUT,20MM
€ 10.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
€ 4.00
92024
92024043
ref: 92024
WASHER,TOOTHED,30.3X4
€ 8.00
92026
920261224
ref: 92026
SPACER,22X35.5X2.1
€ 6.00
92028
920281255
ref: 92028
BUSHING,INPUT TOP GEA
€ 27.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
€ 30.50
92028B
920281449
ref: 92028B
BUSHING,INPUT 5TH GEA
€ 17.50
92028C
920281450
ref: 92028C
BUSHING,OUTPUT 2ND
€ 16.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92045A
920451224
ref: 92045A
BEARING-BALL,6305N2SH
€ 40.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481066
ref: 92048
RACE,NEEDLE BEARING
€ 25.50
92143
921431617
ref: 92143
COLLAR,25X32X20
€ 19.50
92200
922001065
ref: 92200
WASHER
€ 4.50
