GEAR CHANGE MECHANISM

ZX500D1 ZZR550 1993 AUSTRIA GR

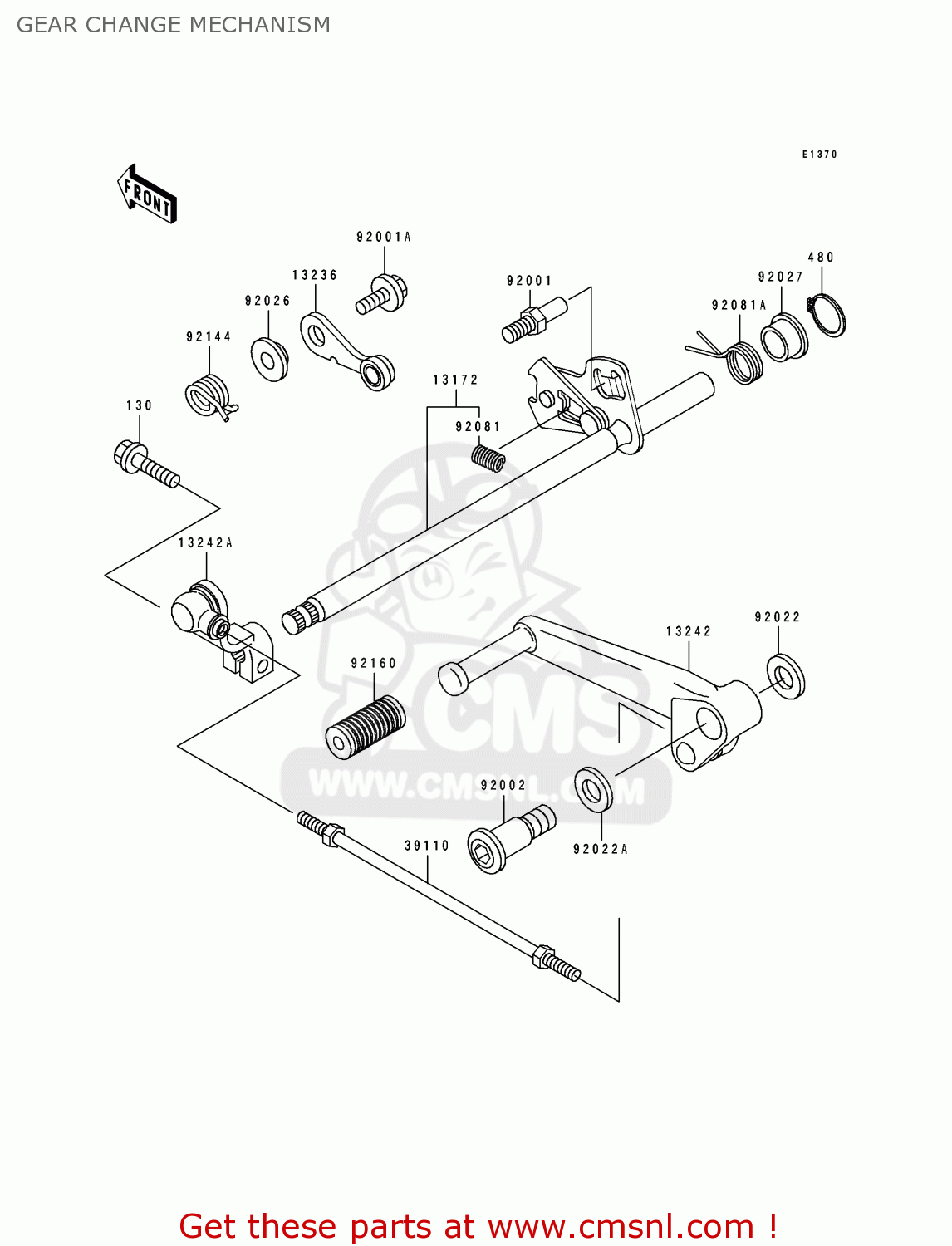

Gear change mechanism diagram ZX500D1 ZZR550 1993 AUSTRIA GR

GEAR CHANGE MECHANISM ZX500D1 ZZR550 1993 AUSTRIA GR
GEAR CHANGE MECHANISM ZX500D1 ZZR550 1993 AUSTRIA GR
GEAR CHANGE MECHANISM ZX500D1 ZZR550 1993 AUSTRIA GR
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13172
131721072
ref: 13172
SHAFT-ASSY-CHANGE
131721072
€ 89.00
13236
132361209
ref: 13236
LEVER-COMP,NEUTRAL PO
132361209
€ 13.00
13242
132421305
ref: 13242
LEVER-ASSY-CHANGE,PED
132421305
€ 54.00
13242A
132421306
ref: 13242A
LEVER-ASSY-CHANGE,LIN
132421306
€ 28.00
39110
391101010
ref: 39110
ROD-ASSY-TIE,CHANGE L
391101010
€ 9.00
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92001A
920011516
ref: 92001A
BOLT,W/WASHER,6X12
920011516
€ 3.00
92002
920021926
ref: 92002
BOLT,CHANGE PEDAL
920021926
€ 10.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92022A
920221593
ref: 92022A
WASHER,12.5X22X1.2
920221593
€ 3.00
92026
920261217
ref: 92026
SPACER
920261217
€ 3.50
92027
920271801
ref: 92027
COLLAR,13X18X9
920271801
€ 5.50
92081
920811275
ref: 92081
SPRING CHANGE LEVER
920811275
€ 2.50
92081A
920811279
ref: 92081A
SPRING,CHANGE LEVER R
920811279
€ 4.50
92144
921441693
ref: 92144
SPRING,RETURN
921441693
€ 5.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
