CRANKCASE
ZX500D1 ZZR550 1993 AUSTRIA GR

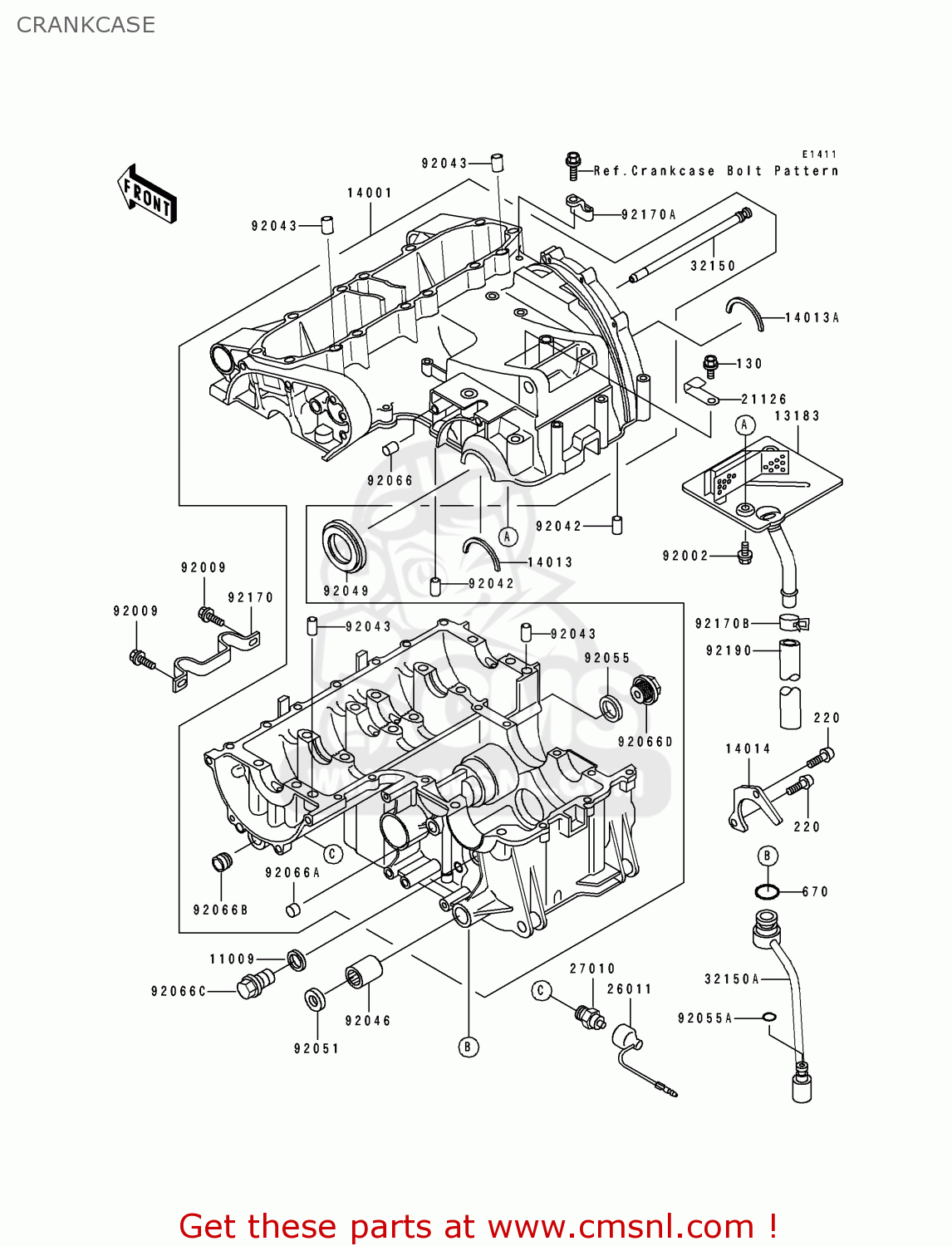

Crankcase diagram ZX500D1 ZZR550 1993 AUSTRIA GR
CRANKCASE ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
11009
110091238
ref: 11009
GASKET,TENSIONER (NAS)
€ 2.50
13183
131831531
ref: 13183
PLATE,BREATHER
€ 49.00
14001
140015291
ref: 14001
SET-CRANKCASE
€ 1,455.50
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14014
140141102
ref: 14014
PLATE-POSITION
€ 9.00
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
€ 3.00
26011
260111371
ref: 26011
WIRE-LEAD
€ 13.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
32150
321501619
ref: 32150
PIPE,OIL
€ 17.00
32150A
321501620
ref: 32150A
PIPE,OIL
€ 27.00
92002
920021449
ref: 92002
BOLT,6X10
€ 2.50
92009
920091603
ref: 92009
SCREW
€ 2.50
92042
92042016
ref: 92042
PIN,DOWEL,6X16
€ 3.50
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92049
920491307
ref: 92049
SEAL-OIL,TC32528
€ 8.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
920551146
ref: 92055
RING-O
€ 5.50
92055A
920551343
ref: 92055A
RING-O,5.5X1.5
€ 3.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92066A
920661110
ref: 92066A
PLUG
€ 4.00
92066B
920661252
ref: 92066B
PLUG
€ 4.00
92066C
920661273
ref: 92066C
PLUG,14X8
€ 5.50
92066D
920661394
ref: 92066D
PLUG,MAIN GALLERY,18X
€ 7.00
92170
921701159
ref: 92170
CLAMP
€ 4.50
92170A
921701471
ref: 92170A
CLAMP
€ 3.00
92170B
921702043
ref: 92170B
CLAMP
€ 1.00
92190
921901107
ref: 92190
TUBE,L=127
€ 4.50
