CHASSIS ELECTRICAL EQUIPMENT
ZX500D1 ZZR550 1993 AUSTRIA GR

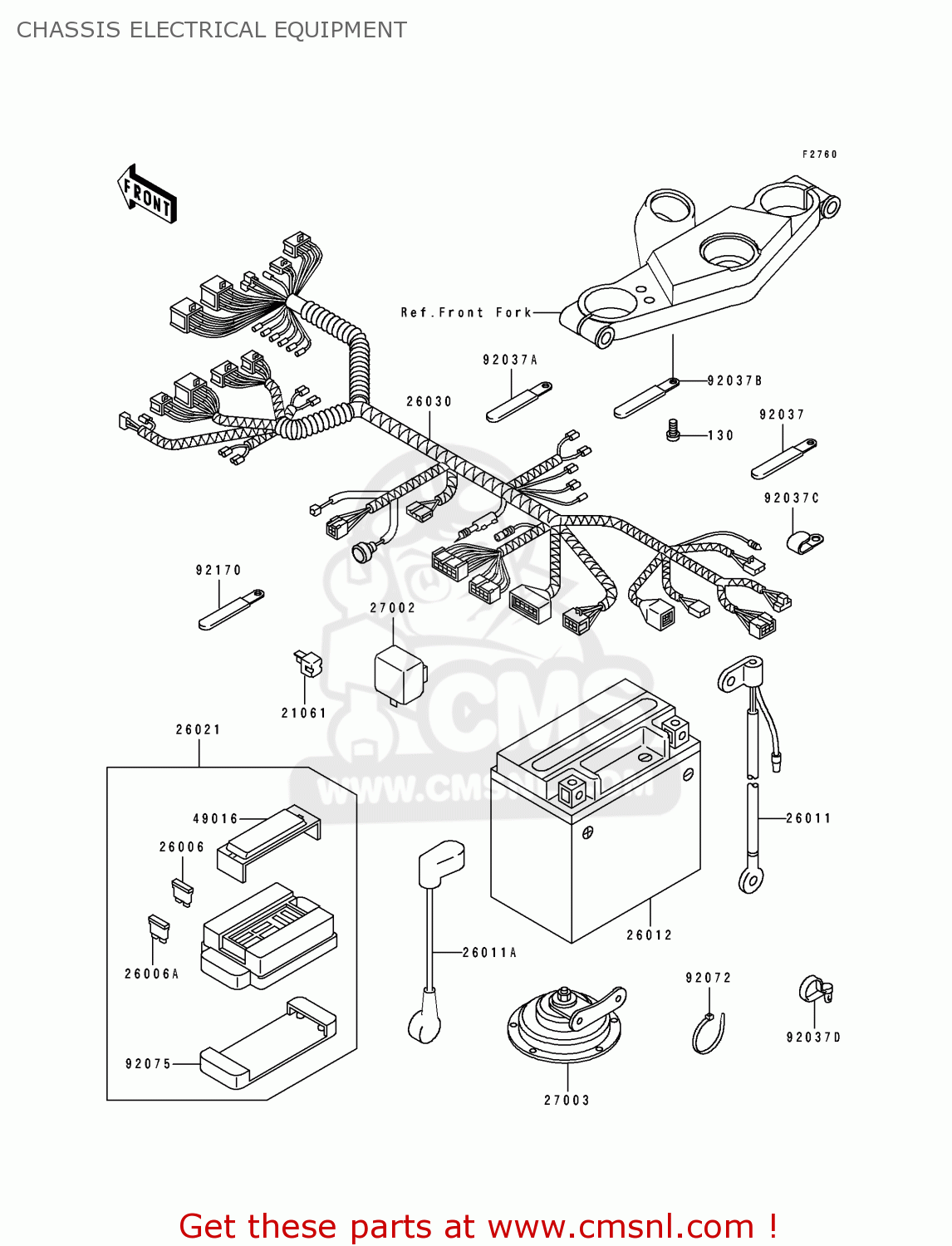

Chassis electrical equipment diagram ZX500D1 ZZR550 1993 AUSTRIA GR
CHASSIS ELECTRICAL EQUIPMENT ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111429
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 16.50
26011A
260111540
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 27.00
26012
260121281
ref: 26012
BATTERY,YTX12-BS,12V
€ 120.50
26021
260211081
ref: 26021
JUNCTION, BOX
€ 106.50
26030
260301172
ref: 26030
HARNESS,MAIN
€ 237.00
27002
270021060
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 65.50
27003
270031316
ref: 27003
HORN
€ 55.50
49016
490161124
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371290
ref: 92037A
CLAMP,CARBURETOR
€ 4.50
92037B
920371539
ref: 92037B
CLAMP,L=45
€ 3.00
92037C
920371877
ref: 92037C
CLAMP
€ 3.00
92037D
920371903
ref: 92037D
CLAMP
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
€ 9.50
92170
921701114
ref: 92170
CLAMP
€ 5.00
