FRONT FORK
ZX500D1 ZZR550 1993 AUSTRIA GR

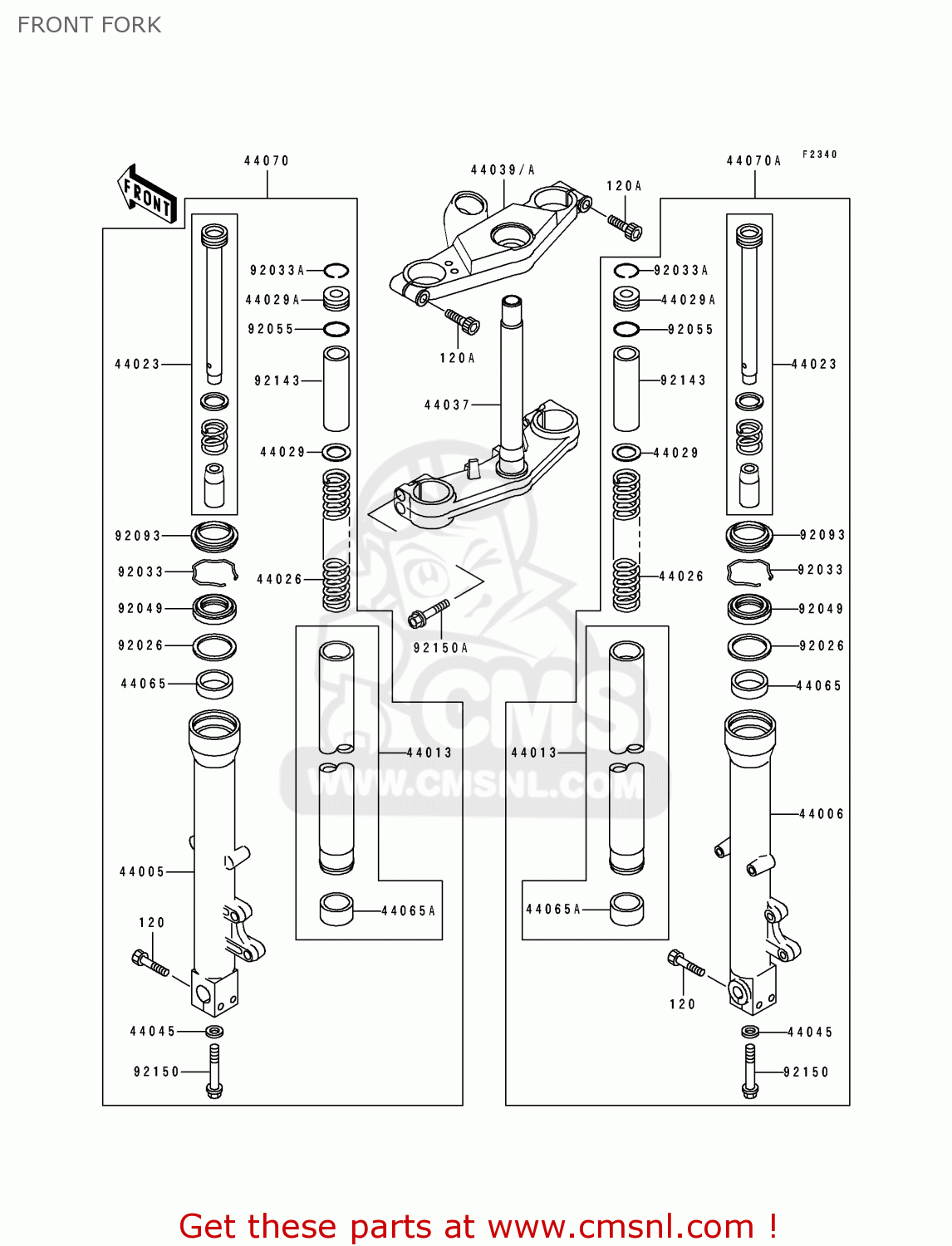

Front fork diagram ZX500D1 ZZR550 1993 AUSTRIA GR
FRONT FORK ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
120
120P0840
ref: 120
BOLT-SOCKET,8X40
€ 2.00
120A
120S0840
ref: 120A
BOLT-SOCKET,8X40,BLAC
€ 3.00
44005
440051323GD
ref: 44005
PIPE-LEFT FORK OUTER,
€ 199.00
44006
440061321GD
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131381
ref: 44013
PIPE-FORK INNER
€ 181.50
44023
440231090
ref: 44023
CYLINDER-COMP-FORK
€ 131.00
44026
440261528
ref: 44026
SPRING-FRONT FORK
€ 50.00
44029
440291131
ref: 44029
SEAT-FORK SPRING
€ 7.00
44029A
440291144
ref: 44029A
SEAT-FORK SPRING
€ 15.00
44037
440371311
ref: 44037
HOLDER-FORK UNDER
€ 326.00
44039
440391233EZ
ref: 44039
HOLDER-FORK UPPER,C.G
€ 205.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
€ 19.00
44070
440701227GD
ref: 44070
DAMPER-ASSY,FORK,LH,G
€ 1,017.50
44070A
440701228GD
ref: 44070A
DAMPER-ASSY,FORK,RH,G
€ 1,013.50
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
€ 17.50
92055
920551481
ref: 92055
RING-O
€ 3.50
92093
920931268
ref: 92093
SEAL,FORK
€ 16.50
92143
921431653
ref: 92143
COLLAR,FORK,L=250
€ 14.00
92150
921501432
ref: 92150
BOLT
€ 6.50
92150A
921501613
ref: 92150A
BOLT,SOCKET,8MM
€ 3.00
