FRAME

ZX500D1 ZZR550 1993 AUSTRIA GR

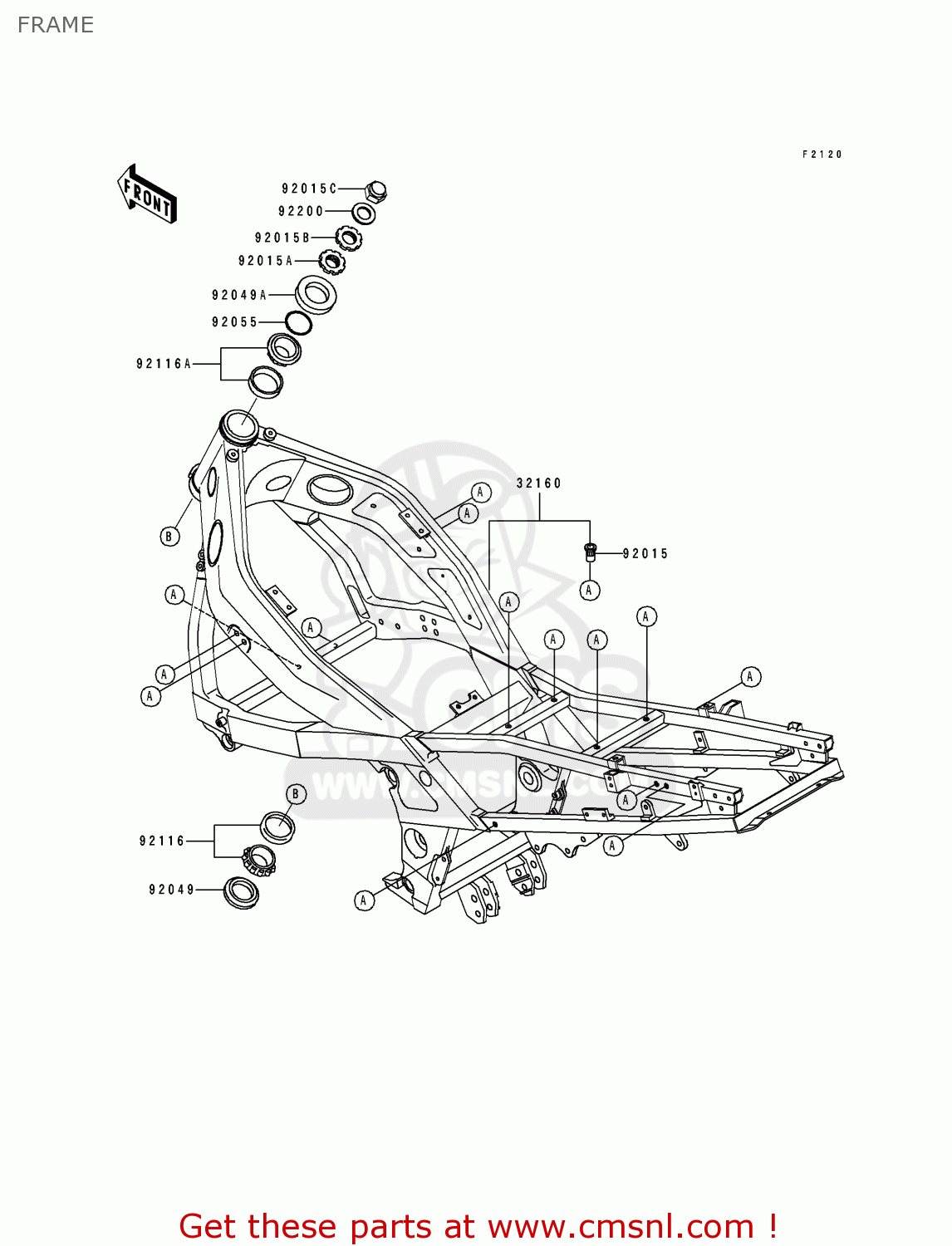

Frame diagram ZX500D1 ZZR550 1993 AUSTRIA GR

prices are in EUR

ref

part #

description

quantity

32160

321601275TX
ref: 32160

FRAME-COMP,SILVER NO.

€ 1,967.00

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92015A

920151803
ref: 92015A

NUT,25MM

€ 18.50

92015B

920151810
ref: 92015B

NUT,25MM

€ 14.50

92015C

920151873
ref: 92015C

NUT,CAP,22MM

€ 19.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491313
ref: 92049A

SEAL-OIL,XMH33 70 6.4

€ 14.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92200

922001126
ref: 92200

WASHER,22.5X36X3.2

€ 6.00

FRAME

all assemblies
