AIR CLEANER

ZX500D1 ZZR550 1993 AUSTRIA GR

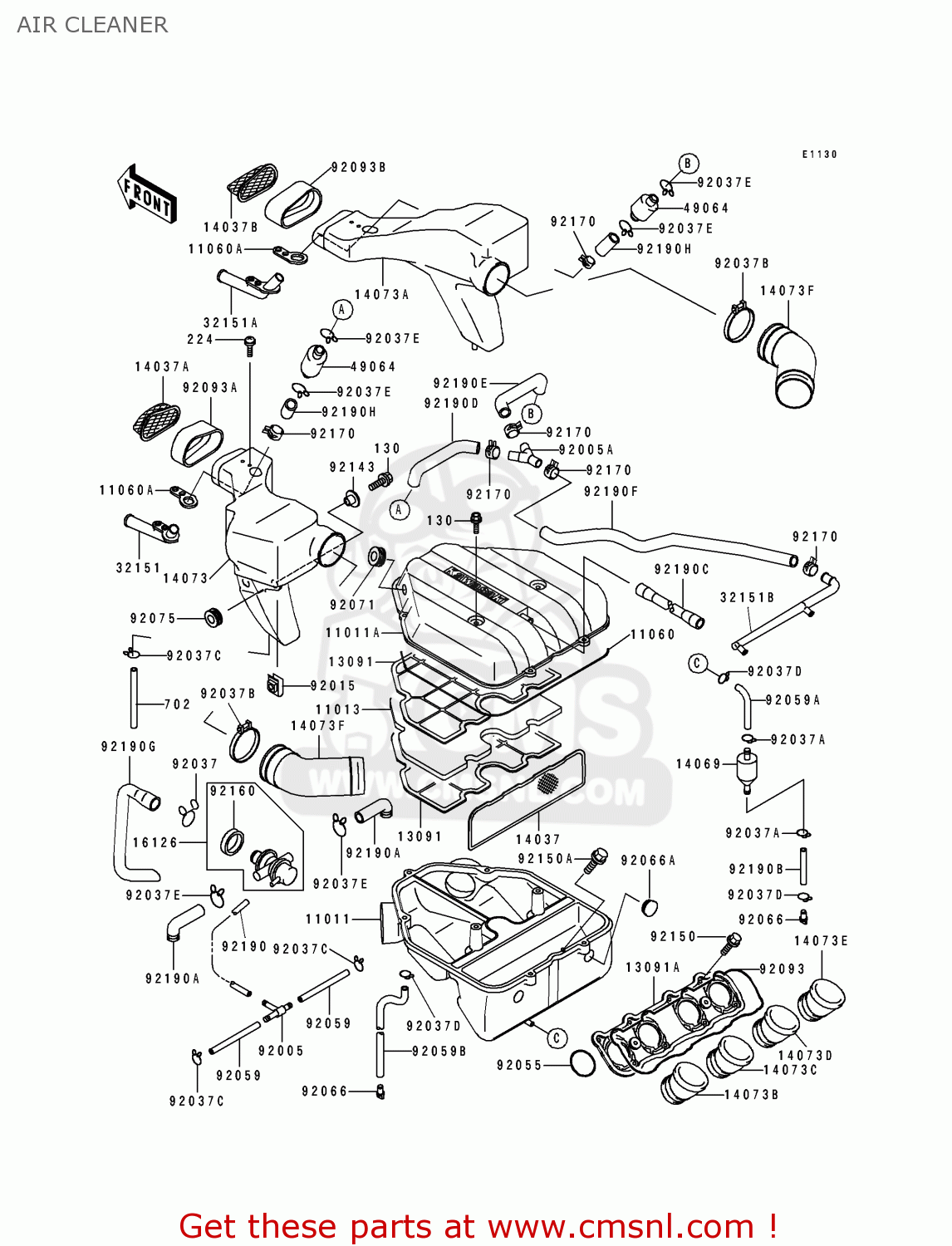

Air cleaner diagram ZX500D1 ZZR550 1993 AUSTRIA GR

AIR CLEANER ZX500D1 ZZR550 1993 AUSTRIA GR
AIR CLEANER ZX500D1 ZZR550 1993 AUSTRIA GR
AIR CLEANER ZX500D1 ZZR550 1993 AUSTRIA GR
prices are in EUR
ref
part #
description
quantity
11011
110111394
ref: 11011
CASE-AIR FILTER,LOW
110111394
€ 110.00
11011A
110111395
ref: 11011A
CASE-AIR FILTER,UPP
€ 80.50
11013
110131226
ref: 11013
ELEMENT-AIR FILTER
110131226
€ 23.00
11060
110601317
ref: 11060
GASKET,AIR FILTER CAS (NAS)
€ 8.50
11060A
110601343
ref: 11060A
GASKET (NAS)
€ 2.50
13091
130911815
ref: 13091
HOLDER,ELEMENT
130911815
€ 11.50
13091A
130911820
ref: 13091A
HOLDER,DUCT
€ 55.00
14037
140371165
ref: 14037
SCREEN,AIR FILTER
140371165
€ 19.00
14037A
140371166
ref: 14037A
SCREEN,AIR DUCT,LH
€ 14.00
14037B
140371167
ref: 14037B
SCREEN,AIR DUCT,RH
140371167
€ 17.00
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731549
ref: 14073
DUCT,AIR INTAKE,LH
140731549
€ 49.00
14073A
140731550
ref: 14073A
DUCT,AIR INTAKE,RH
140731550
€ 25.00
14073B
140731555
ref: 14073B
DUCT,#1
€ 12.50
14073C
140731556
ref: 14073C
DUCT,#1&#2,FUNNEL 70M
€ 16.00
14073D
140731557
ref: 14073D
DUCT,#3&#4,FUNNEL 70M
€ 16.00
14073E
140731558
ref: 14073E
DUCT,#4
€ 12.50
14073F
140731574
ref: 14073F
DUCT,DUCT-AIR FILTER
140731574
€ 27.50
16126
161261144
ref: 16126
VALVE,AIR SWITCH
161261144
€ 135.50
32151
321511462
ref: 32151
PIPE,LH
321511462
€ 11.00
32151A
321511463
ref: 32151A
PIPE,RH
321511463
€ 11.00
32151B
321511540
ref: 32151B
PIPE
€ 56.00
49064
490641055
ref: 49064
FILTER-AIR
490641055
€ 11.50
92005
920051017
ref: 92005
FITTING,TUBE
920051017
€ 6.50
92005A
920051250
ref: 92005A
FITTING,Y-TIPE
920051250
€ 5.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92037
920371076
ref: 92037
CLAMP,TUBE
920371076
€ 4.00
92037A
920371271
ref: 92037A
CLAMP,FUEL TUBE
920371271
€ 2.00
92037B
920371409
ref: 92037B
CLAMP,AIR FILTER
920371409
€ 10.50
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92037D
920371972
ref: 92037D
CLAMP,TUBE
920371972
€ 2.50
92037E
92037213
ref: 92037E
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551515
ref: 92055
RING-O,CARB-AIR CLEAN
920551515
€ 5.00
92059
920591365
ref: 92059
TUBE,4X9X80
€ 9.50
92059A
920591750
ref: 92059A
TUBE
€ 8.50
92059B
920591761
ref: 92059B
TUBE,7X12X435,GREEN
920591761
€ 15.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92066A
920661389
ref: 92066A
PLUG
920661389
€ 2.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
130
130H0625
ref: 130
BOLT-FLANGED,6X25
130H0625
€ 0.50
224
224C0512
ref: 224
SCREW-PAN-WP-CROS,5X1
€ 2.00
702
702A07120
ref: 702
TUBE-RUBBER
€ 9.50
92093
920931346
ref: 92093
SEAL,DUCT HOLDER
920931346
€ 6.00
92093A
920931347
ref: 92093A
SEAL,LH
920931347
€ 6.50
92093B
920931348
ref: 92093B
SEAL,RH
920931348
€ 5.50
92143
921431016
ref: 92143
COLLAR,L=9.6
921431016
€ 4.00
92150
921501661
ref: 92150
BOLT,5X12
921501661
€ 2.50
92150A
921501662
ref: 92150A
BOLT,6X20
€ 2.50
92160
921601454
ref: 92160
DAMPER,VALVE
€ 10.50
92170
921701060
ref: 92170
CLAMP
921701060
€ 6.00
92190
921901091
ref: 92190
TUBE,4X9X220
€ 12.50
92190A
921901168
ref: 92190A
TUBE
921901168
€ 7.00
92190B
921901200
ref: 92190B
TUBE,7X12X45
€ 8.50
92190C
921901346
ref: 92190C
TUBE,BREATHER
921901346
€ 15.00
92190D
921901413
ref: 92190D
TUBE,14X20X158,LH
921901413
€ 8.50
92190E
921901414
ref: 92190E
TUBE,14X20X158,RH
921901414
€ 10.00
92190F
921901415
ref: 92190F
TUBE,14X20X525
€ 26.00
92190G
921901416
ref: 92190G
TUBE,VALVE-AIR FILTER
€ 16.50
92190H
921901429
ref: 92190H
TUBE,14X20X28
921901429
€ 2.50
