OIL COOLER

ZX500D1 ZZR550 1993 AUSTRIA GR

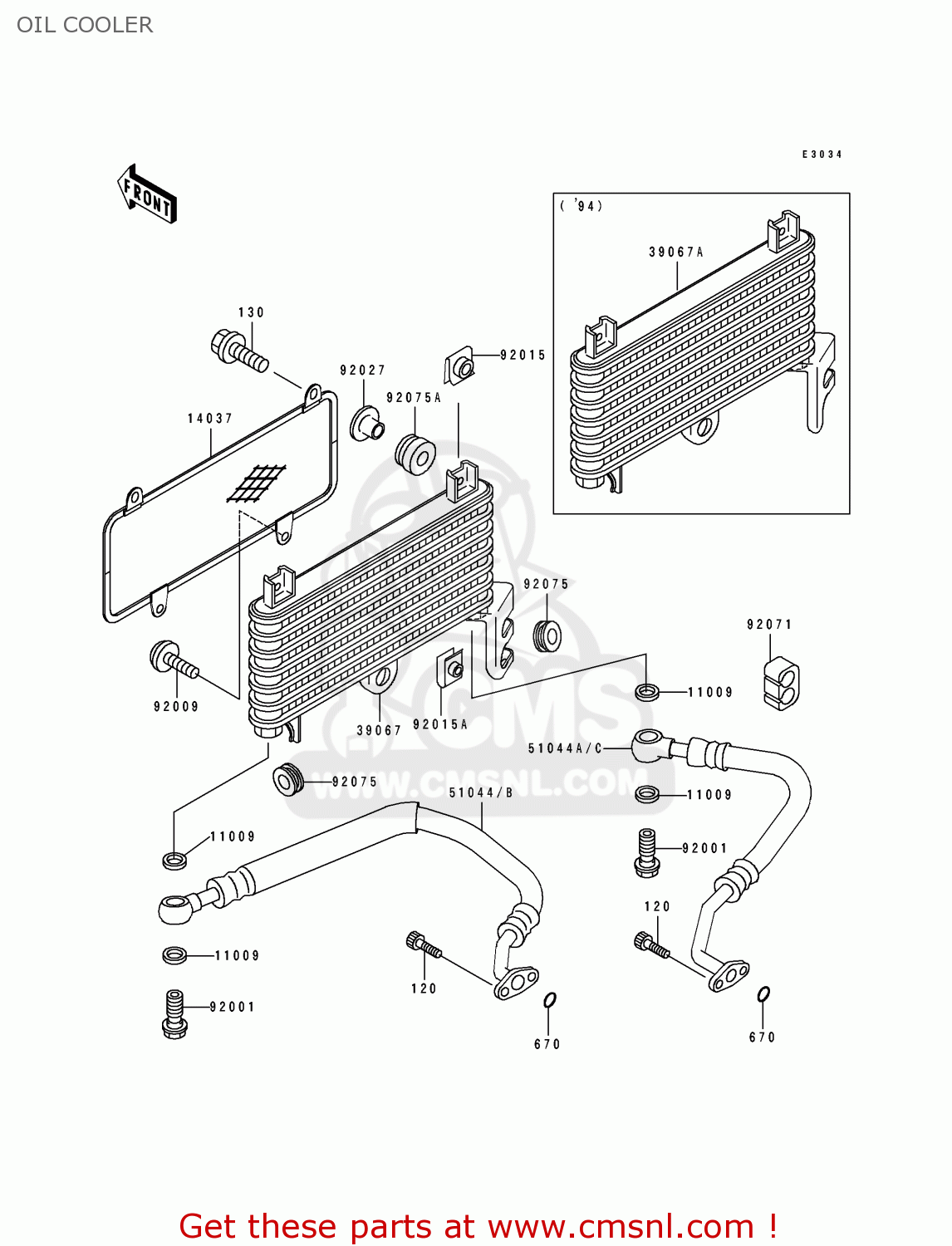

Oil cooler diagram ZX500D1 ZZR550 1993 AUSTRIA GR

OIL COOLER ZX500D1 ZZR550 1993 AUSTRIA GR
OIL COOLER ZX500D1 ZZR550 1993 AUSTRIA GR
OIL COOLER ZX500D1 ZZR550 1993 AUSTRIA GR
prices are in EUR
ref
part #
description
quantity
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
670
670B2010
ref: 670
O RING,10MM
670B2010
€ 1.00
11009
110091461
ref: 11009
GASKET,14X19.5X1.4 (NAS)
110091461
€ 3.50
14037
140371174
ref: 14037
SCREEN,OIL COOLER
140371174
€ 39.00
39067
390671059
ref: 39067
COOLER-OIL
390671059
€ 383.00
51044
510441150
ref: 51044
TUBE-ASSY,LH
€ 91.50
51044A
510441151
ref: 51044A
TUBE-ASSY,RH
€ 91.50
92001
920011930
ref: 92001
BOLT,14X28.5
920011930
€ 6.50
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271651
ref: 92027
COLLAR
920271651
€ 2.50
92071
920711216
ref: 92071
GROMMET
920711216
€ 4.50
92075
920751942
ref: 92075
DAMPER,OIL COOLER
920751942
€ 3.50
92075A
92075277
ref: 92075A
DAMPER
92075277
€ 1.00
