OIL PUMP
ZX500D1 ZZR550 1993 AUSTRIA GR

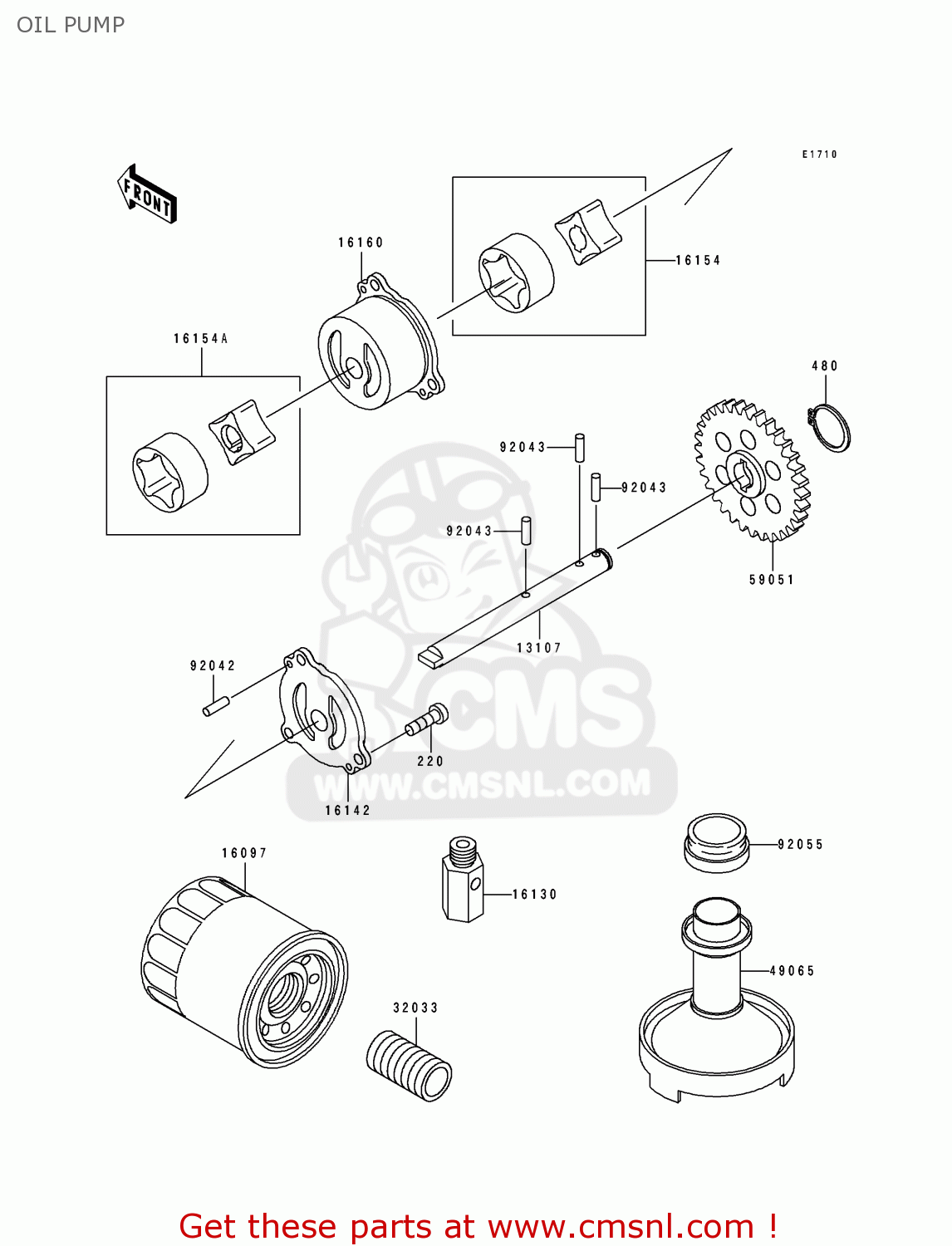

Oil pump diagram ZX500D1 ZZR550 1993 AUSTRIA GR
OIL PUMP ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
13107
131071265
ref: 13107
SHAFT,OIL PUMP
€ 38.00
16097
160971063
ref: 16097
FILTER-ASSY-OIL
€ 10.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
161421100
ref: 16142
COVER-PUMP
€ 32.00
16154
161541085
ref: 16154
ROTOR-PUMP,ENGINE
€ 49.00
16154A
161541086
ref: 16154A
ROTOR-PUMP,OIL COOLER
€ 49.00
16160
161601159
ref: 16160
BODY,OIL PUMP
€ 110.50
32033
320331535
ref: 32033
PIPE
€ 9.00
49065
490651056
ref: 49065
FILTER-OIL
€ 18.00
59051
590511231
ref: 59051
GEAR-SPUR,OIL,26T
€ 44.00
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
92043
920431444
ref: 92043
PIN,17.9X5.0
€ 2.50
92055
920551354
ref: 92055
RING-O,OIL FILTER
€ 6.50
