RADIATOR
ZX500D1 ZZR550 1993 AUSTRIA GR

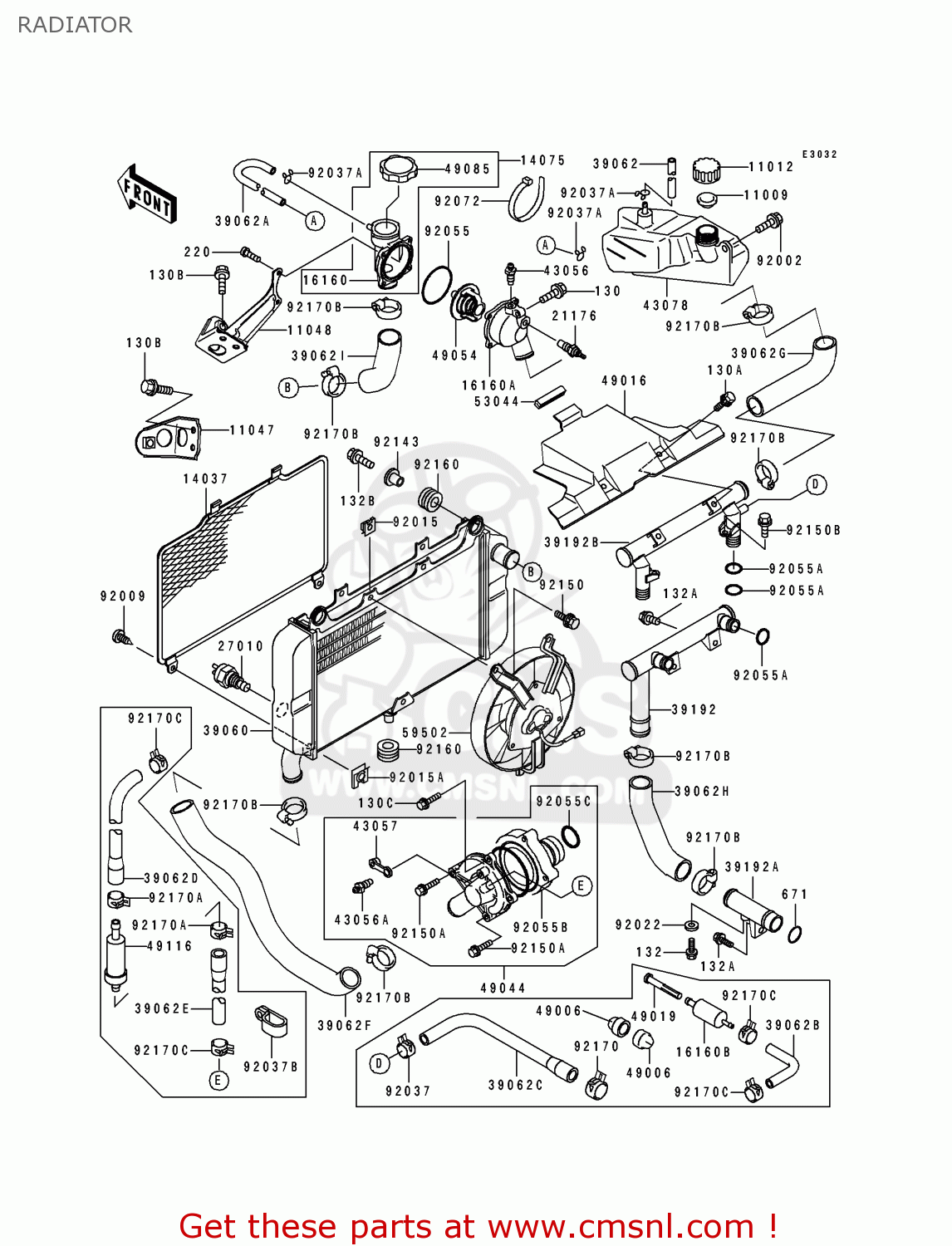

Radiator diagram ZX500D1 ZZR550 1993 AUSTRIA GR
RADIATOR ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11047
110471925
ref: 11047
BRACKET,RADIATOR,UPP,
€ 9.50
11048
110481269
ref: 11048
BRACKET,THERMOSTAT BO
€ 16.50
14037
140371171
ref: 14037
SCREEN,RADIATOR
€ 69.50
14075
140751068
ref: 14075
CAP-ASSY
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
€ 59.00
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
39060
390601115
ref: 39060
RADIATOR
€ 725.50
39062
390621075
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621285
ref: 39062A
HOSE COOLING
€ 18.00
39062B
390621304
ref: 39062B
HOSE-COOLING,FILTER-C
€ 4.50
39062C
390621399
ref: 39062C
HOSE-COOLING
€ 11.50
39062D
390621427
ref: 39062D
HOSE-COOLING
€ 10.00
39062E
390621428
ref: 39062E
HOSE-COOLING,CARBURET
€ 9.50
39062F
390621526
ref: 39062F
HOSE-COOLING,RADIATOR
€ 50.00
39062G
390621528
ref: 39062G
HOSE-COOLING,HEAD-THE
€ 24.00
39062H
390621546
ref: 39062H
HOSE-COOLING,PUMP-CYL
€ 30.00
39062I
390621547
ref: 39062I
HOSE-COOLING,THERMO-R
€ 20.00
39192
391921033
ref: 39192
PIPE-WATER
€ 110.50
39192A
391921034
ref: 39192A
PIPE-WATER
€ 42.00
39192B
391921040
ref: 39192B
PIPE-WATER
€ 80.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43056A
430561051
ref: 43056A
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43078
430781135
ref: 43078
RESERVOIR
€ 46.50
49006
490061187
ref: 49006
BOOT
€ 7.00
49016
490161161
ref: 49016
COVER-SEAL,HEAT
€ 23.00
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441068
ref: 49044
PUMP-WATER
€ 275.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
53044
530441174
ref: 53044
TRIM
€ 2.50
59502
595021094
ref: 59502
FAN-ASSY
€ 621.50
92002
920021720
ref: 92002
BOLT,6X16
€ 2.50
92009
920091436
ref: 92009
SCREW
€ 2.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130H0612
ref: 130A
BOLT-FLANGED,6X12
€ 0.50
130B
130J0618
ref: 130B
BOLT-FLANGED,6X18
€ 1.50
130C
130Y0640
ref: 130C
BOLT-FLANGED
€ 3.00
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0830
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371181
ref: 92037
CLAMP
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371608
ref: 92037B
CLAMP
€ 5.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551282
ref: 92055A
RING-O
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
€ 4.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92143
921431450
ref: 92143
COLLAR
€ 6.50
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501379
ref: 92150A
BOLT
€ 3.00
92150B
921501826
ref: 92150B
BOLT,6X12
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701118
ref: 92170
CLAMP
€ 5.00
92170A
921701201
ref: 92170A
CLAMP
€ 3.50
92170B
921701284
ref: 92170B
CLAMP,CABLE
€ 7.50
92170C
921702042
ref: 92170C
CLAMP
€ 1.00
