SUSPENSION
ZX500D1 ZZR550 1993 AUSTRIA GR

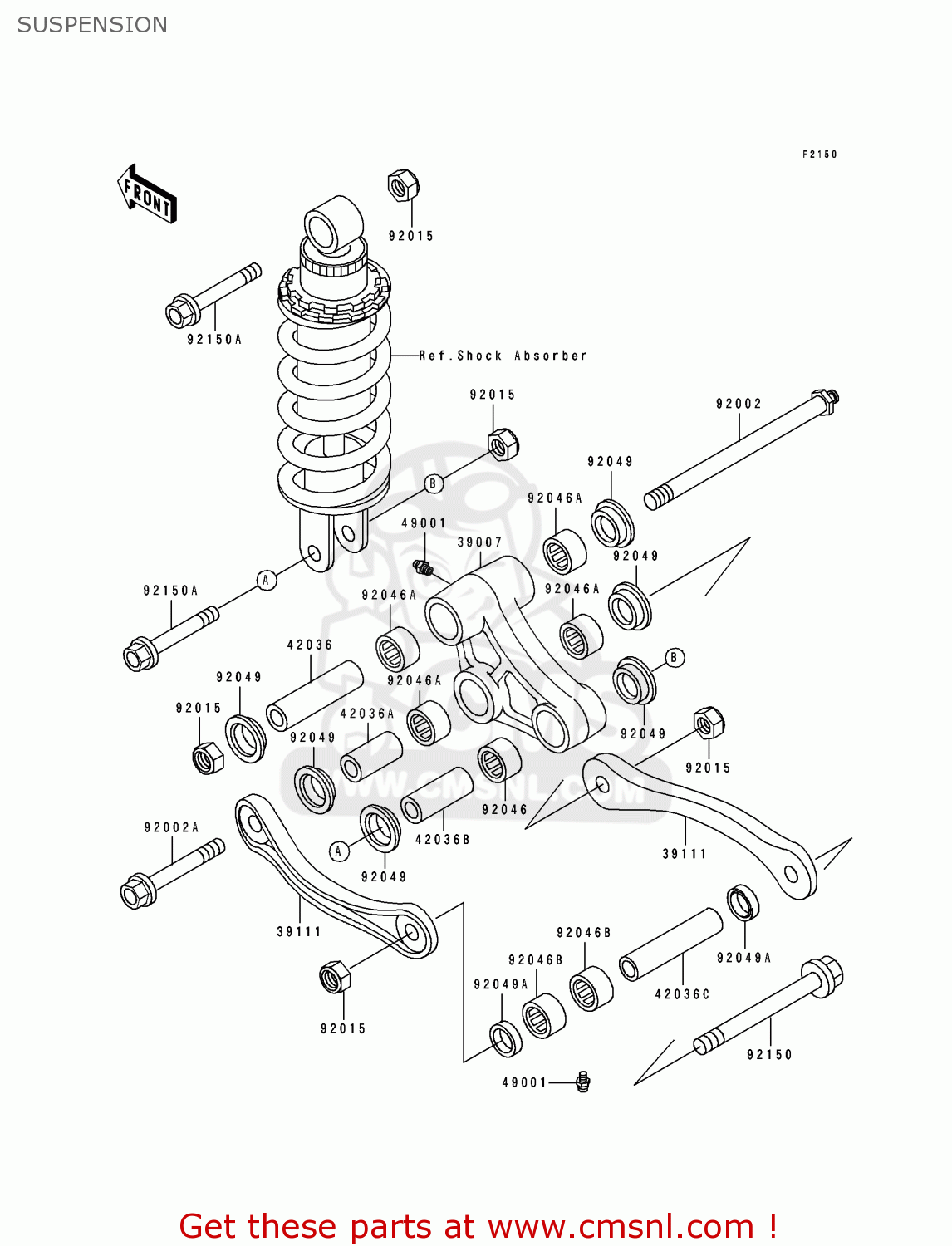

Suspension diagram ZX500D1 ZZR550 1993 AUSTRIA GR
SUSPENSION ZX500D1 ZZR550 1993 AUSTRIA GR
×
prices are in EUR
ref
part #
description
quantity
39007
390071191
ref: 39007
ARM-SUSP,UNI TRAK
€ 126.00
39111
391111109
ref: 39111
ROD-TIE
€ 56.00
42036
420361102
ref: 42036
SLEEVE,12.1X20X74
€ 19.50
42036A
420361108
ref: 42036A
SLEEVE,12.1X20X40
€ 14.00
42036B
420361111
ref: 42036B
SLEEVE,12.5X20X50
€ 15.00
42036C
420361231
ref: 42036C
SLEEVE,12.1X18X82
€ 17.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
92002
920021490
ref: 92002
BOLT,SUSPENSION ARM
€ 19.50
92002A
920021661
ref: 92002A
BOLT,SUSPENSION ROD
€ 9.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
€ 4.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
€ 21.50
92046B
920461144
ref: 92046B
BEARING-NEEDLE,18BM24
€ 27.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92049A
920491225
ref: 92049A
SEAL-OIL,MHA18244
€ 7.50
92150
921501088
ref: 92150
BOLT,FLANGED,12X110
€ 9.00
92150A
921501258
ref: 92150A
BOLT,FLANGED,12X63
€ 8.50
