VALVE
ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

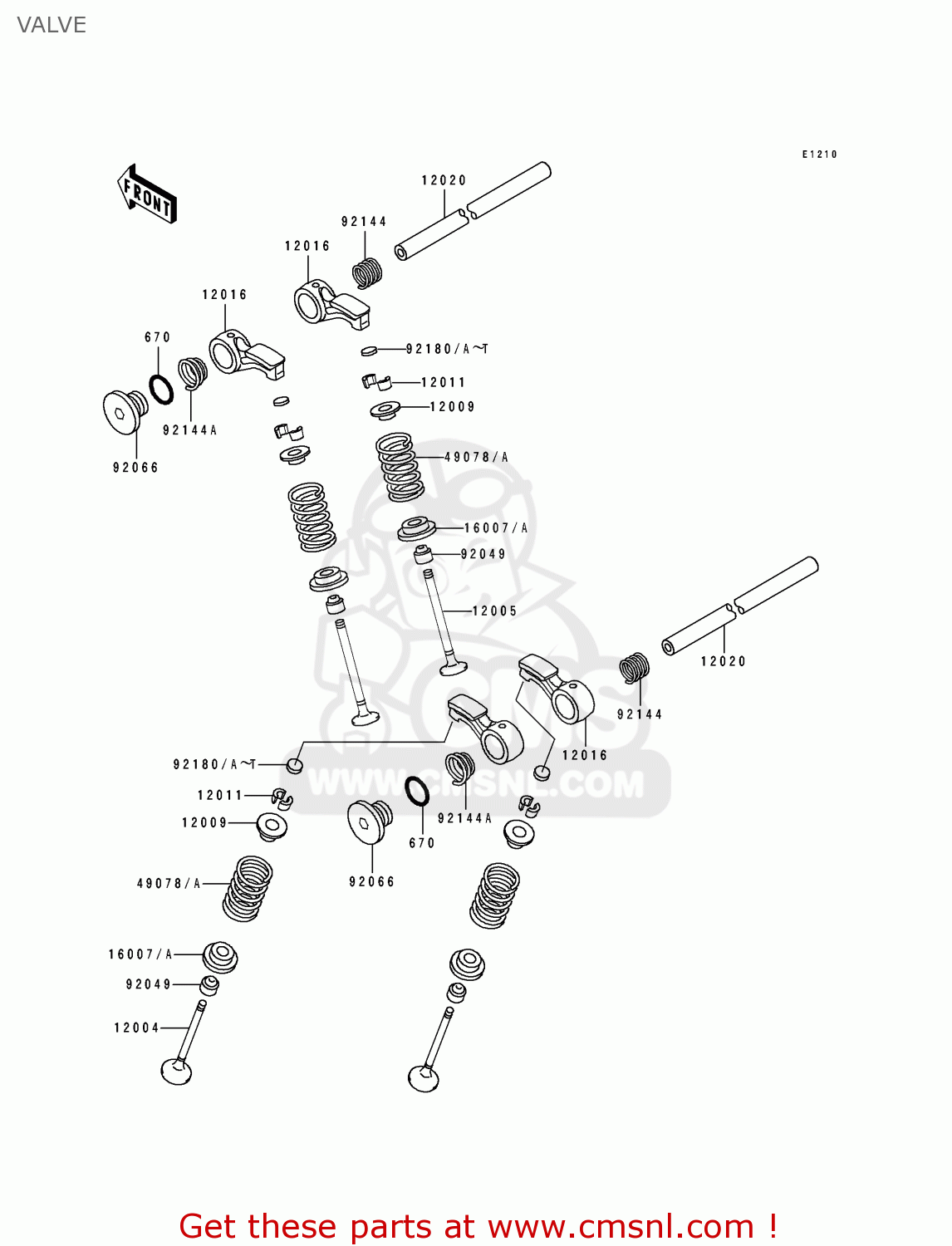

Valve diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
VALVE ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
×
prices are in EUR
ref
part #
description
quantity
670
670B2015
ref: 670
O RING,15MM
€ 1.00
12004
120041090
ref: 12004
VALVE-INTAKE
€ 33.00
12005
120051108
ref: 12005
VALVE-EXHAUST
€ 65.00
12009
120091059
ref: 12009
RETAINER-VALVE SPRING
€ 7.00
12011
120111052
ref: 12011
COLLET
€ 3.50
12016
120161082
ref: 12016
ARM-ROCKER
€ 35.50
12020
120201064
ref: 12020
SHAFT-ROCKER
€ 33.00
16007
160071154
ref: 16007
SEAT-SPRING
€ 4.50
49078A
490781128
ref: 49078A
SPRING-ENGINE VALVE
€ 11.50
92049
920491308
ref: 92049
SEAL-OIL,VALVE GUIDE
€ 6.00
92066
920661192
ref: 92066
PLUG,14X11.5
€ 16.00
92144
921441261
ref: 92144
SPRING,ROCKER ARM
€ 2.00
92144A
921441262
ref: 92144A
SPRING,ROCKER ARM
€ 2.00
92180
921801014
ref: 92180
SHIM,T=2.50
€ 12.50
92180A
921801016
ref: 92180A
SHIM,T=2.55
€ 12.50
92180B
921801018
ref: 92180B
SHIM,T=2.60
€ 12.50
92180C
921801020
ref: 92180C
SHIM,T=2.65
€ 12.50
92180D
921801022
ref: 92180D
SHIM,T=2.70
€ 12.50
92180E
921801024
ref: 92180E
SHIM,T=2.75
€ 12.50
92180F
921801026
ref: 92180F
SHIM,T=2.80
€ 12.50
92180G
921801028
ref: 92180G
SHIM,T=2.85
€ 12.50
92180H
921801030
ref: 92180H
SHIM,T=2.90
€ 12.50
92180I
921801032
ref: 92180I
SHIM,T=2.95
€ 12.50
92180J
921801034
ref: 92180J
SHIM,T=3.00
€ 12.50
92180K
921801036
ref: 92180K
SHIM,T=3.05
€ 12.50
92180L
921801038
ref: 92180L
SHIM,T=3.10
€ 12.50
92180M
921801040
ref: 92180M
SHIM,T=3.15
€ 12.50
92180N
921801042
ref: 92180N
SHIM,T=3.20
€ 12.50
92180O
921801044
ref: 92180O
SHIM,T=3.25
€ 12.50
92180P
921801046
ref: 92180P
SHIM,T=3.30
€ 12.50
92180Q
921801048
ref: 92180Q
SHIM,T=3.35
€ 12.50
92180R
921801050
ref: 92180R
SHIM,T=3.40
€ 12.50
92180S
921801052
ref: 92180S
SHIM,T=3.45
€ 12.50
92180T
921801054
ref: 92180T
SHIM,T=3.50
€ 12.50
