GENERATOR

ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

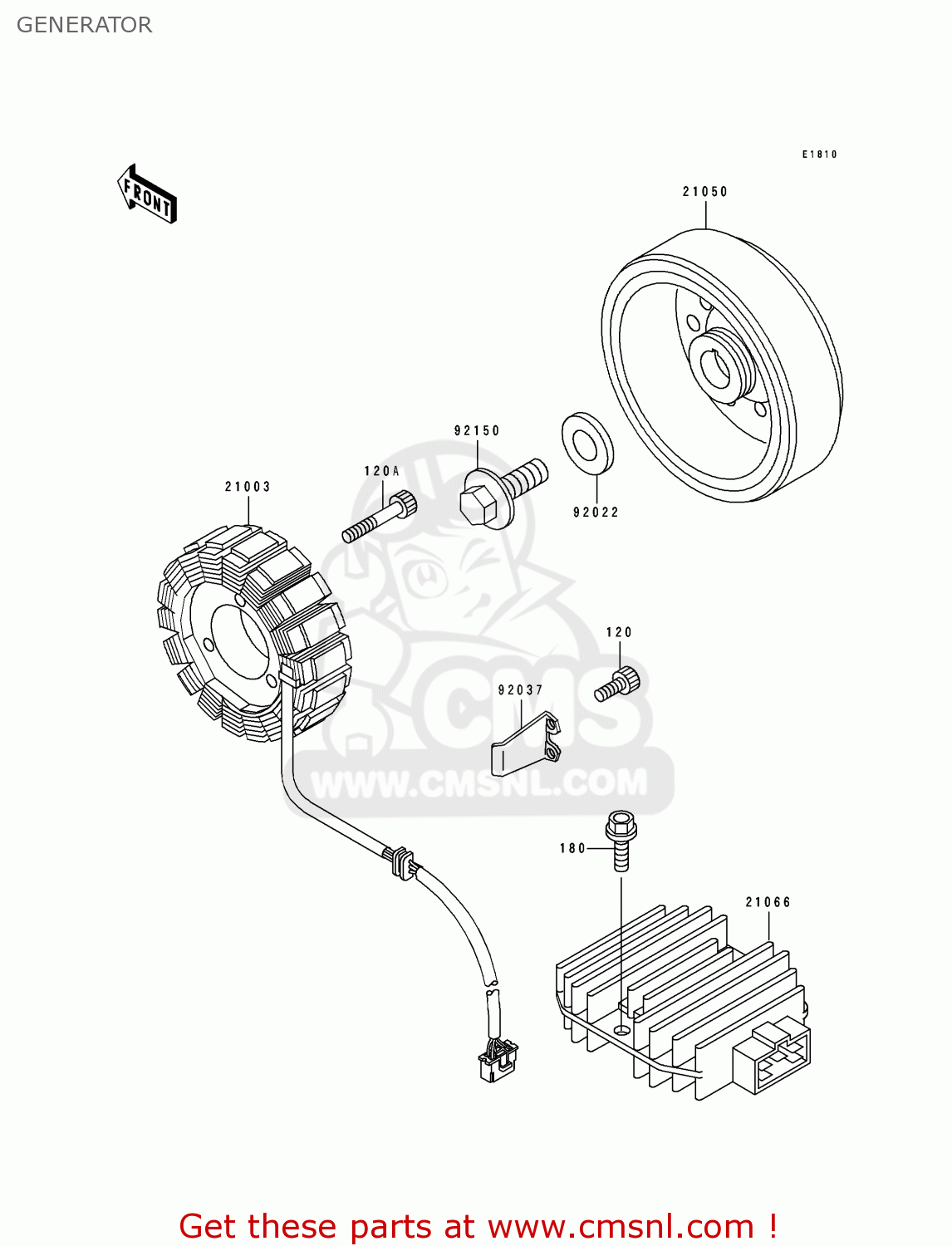

Generator diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

prices are in EUR

ref

part #

description

quantity

120

120P0512
ref: 120

BOLT,ALLEN,5X12

€ 1.00

120A

120P0530
ref: 120A

BOLT-SOCKET,5X30

€ 2.50

180

180B0625
ref: 180

BOLT-UPSET-WS

€ 2.50

21003

210031211
ref: 21003

STATOR

€ 467.50

21050

210501144
ref: 21050

FLYWHEEL

€ 537.00

21066

210661055
ref: 21066

REGULATOR-VOLTAGE

€ 157.50

92022

920221952
ref: 92022

WASHER,10.3X30X4

€ 6.50

92037

920371122
ref: 92037

CLAMP,GENERATOR LEAD

€ 3.00

92150

921501134
ref: 92150

BOLT,10X32

€ 6.00
