REAR HUB
ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

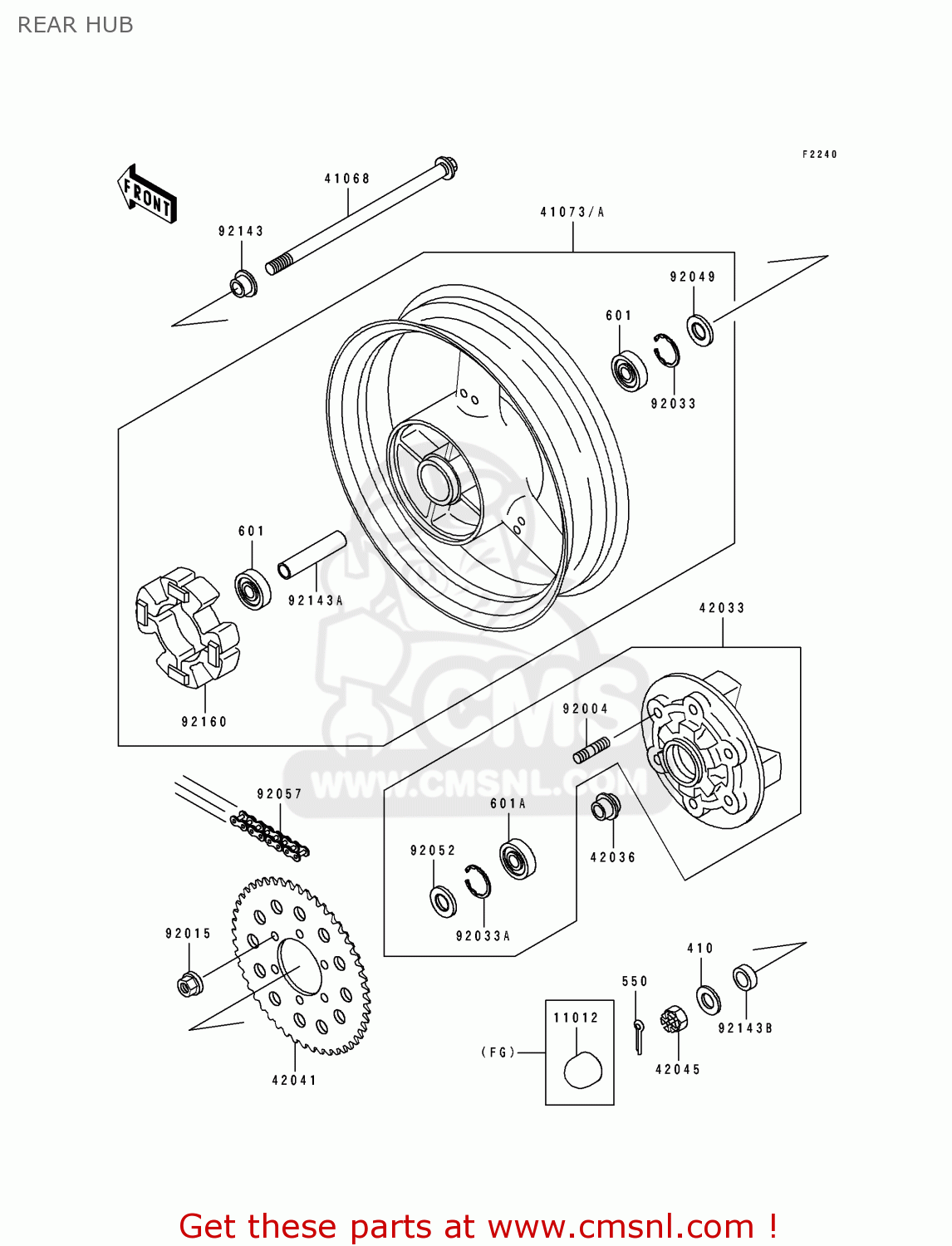

Rear hub diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
REAR HUB ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
×
prices are in EUR
ref
part #
description
quantity
410
410D1800
ref: 410
W-PLAIN-S,18MM
€ 1.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6204ZZ
ref: 601
BEARING-BALL,#6204ZZC
€ 22.00
601A
601B6205G
ref: 601A
BEARING BALL
€ 14.00
11012
110121590
ref: 11012
FG
CAP,AXLE NUT
€ 3.50
41068
410681329
ref: 41068
AXLE,RR
€ 93.00
41073
410731472CJ
ref: 41073
EUFGFRITUK
WHEEL-ASSY,RR,L.GREEN
€ 922.50
41073A
410731472DH
ref: 41073A
WHEEL-ASSY,RR,P.C.GRA
€ 969.00
42033
420331146
ref: 42033
COUPLING-ASSY,RR HUB
€ 204.00
42036
420361251
ref: 42036
SLEEVE,RR HUB,L=23
€ 18.00
42041
420411376
ref: 42041
SPROCKET-HUB,45T
€ 41.00
42045
42045018
ref: 42045
NUT,18MM
€ 7.50
92004
920041151
ref: 92004
STUD,10X19.5
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571347
ref: 92057
CHAIN,DRIVE,EK520MV-O
€ 226.00
92143
921431042
ref: 92143
COLLAR,L=23
€ 19.50
92143A
921431409
ref: 92143A
COLLAR,RR HUB,L=129.5
€ 16.50
92143B
921431410
ref: 92143B
COLLAR,RR AXLE,L=14.5
€ 12.50
92160
921601203
ref: 92160
DAMPER,SHOCK,RR HUB
€ 60.00
