FRAME FITTING

ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

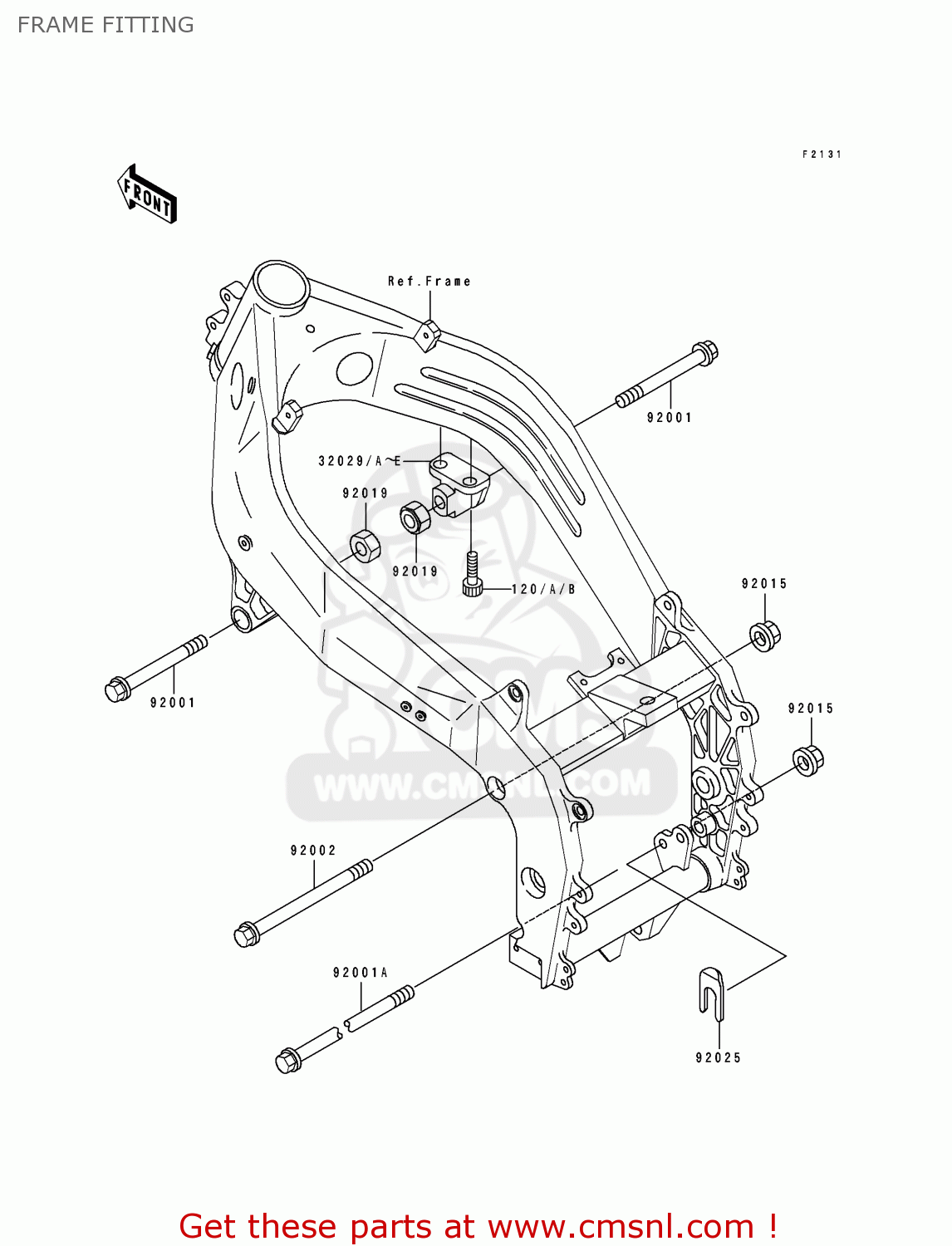

Frame fitting diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

prices are in EUR

ref

part #

description

quantity

120A

120P0830
ref: 120A

BOLT,SOCKET,8X30

€ 2.00

32029B

320291837KF
ref: 32029B
EUFGFRITUK

BRACKET-ENGINE,RH,SIL

€ 27.50

32029C

32029183710
ref: 32029C

BRACKET-ENGINE,RH,BLA

€ 23.00

92001

920011619
ref: 92001

BOLT,FLANGED,10X85

€ 5.50

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92002

920021087
ref: 92002

BOLT,10X130

€ 6.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92025

92025053
ref: 92025

SHIM,T=0.5

€ 3.00
