METER
ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

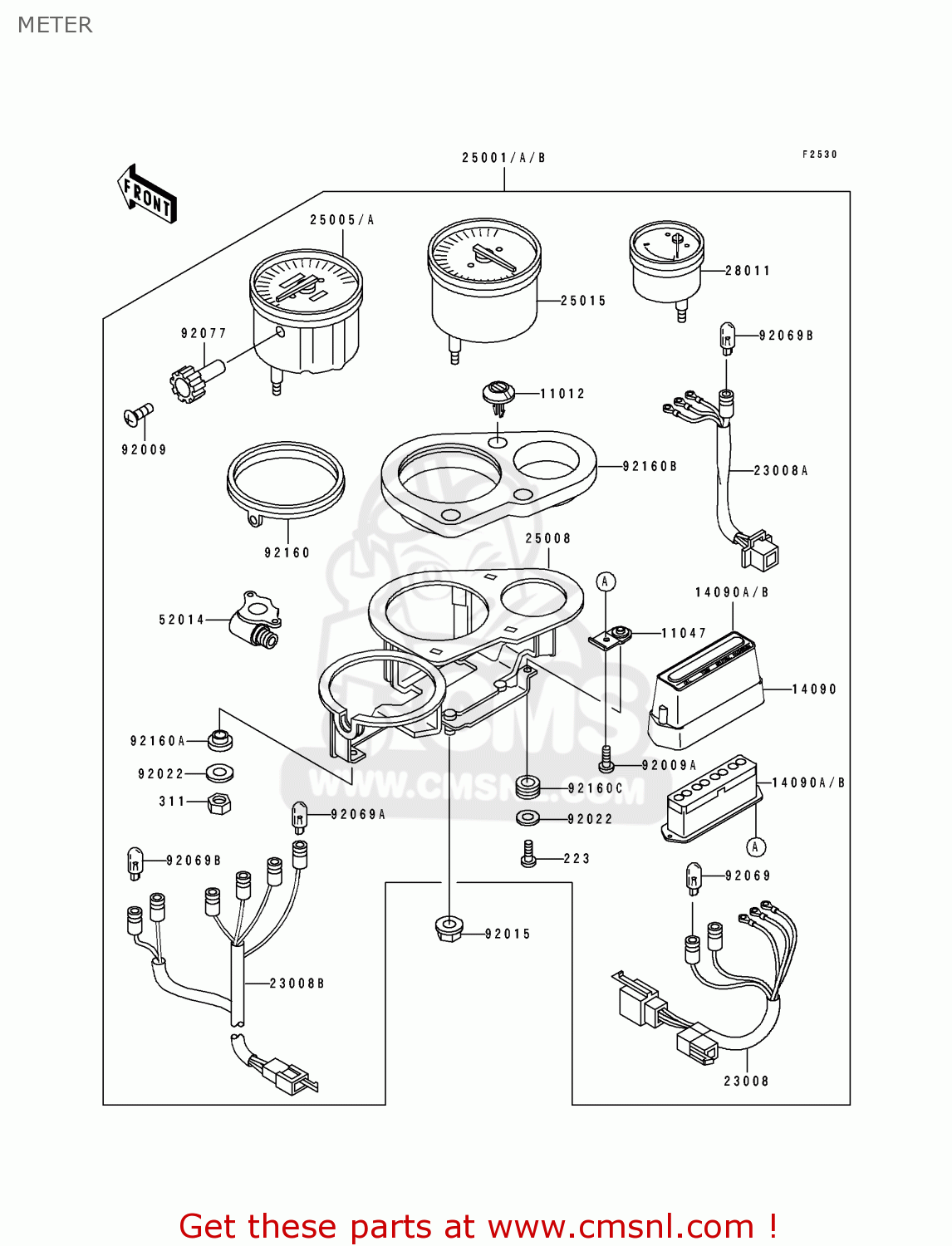

Meter diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
METER ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
×
prices are in EUR
ref
part #
description
quantity
11012
110121779
ref: 11012
CAP
€ 4.00
11047
110471557
ref: 11047
BRACKET,PILOT BOX
€ 10.00
14090
140901072
ref: 14090
COVER,PILOT BOX,UPP
€ 25.50
14090A
140901073
ref: 14090A
AREUFGITUK
COVER,PILOT BOX,LWR
€ 30.00
14090B
140901074
ref: 14090B
FR
COVER,PILOT BOX,LWR
€ 28.00
23008
230081386
ref: 23008
SOCKET-ASSY,TACHOMETE
€ 45.00
23008A
230081388
ref: 23008A
SOCKET-ASSY,TEMP METE
€ 29.50
23008B
230081465
ref: 23008B
SOCKET-ASSY,SPEEDOMET
€ 75.00
25001
250011851
ref: 25001
AREUFGIT
METER-ASSY,KPH
€ 1,494.00
25001A
250011852
ref: 25001A
FR
METER-ASSY,KPH
€ 1,569.00
25001B
250011853
ref: 25001B
UK
METER-ASSY,MPH
€ 1,569.00
25005
250051481
ref: 25005
AREUFGFRIT
SPEEDOMETER,KPH
€ 233.00
25005A
250051482
ref: 25005A
UK
SPEEDOMETER,MPH
€ 205.50
25008
250081175
ref: 25008
BRACKET-METER
€ 86.00
25015
250151301
ref: 25015
TACHOMETER,X1000R/MIN
€ 342.00
28011
280111119
ref: 28011
METER,TEMP
€ 182.50
52014
520141006
ref: 52014
ELBOW,SPEEDOMETER GEA
€ 35.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
€ 2.00
92009A
920091391
ref: 92009A
SCREW
€ 2.50
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92022
920221949
ref: 92022
WASHER,4.3X12.5X1
€ 2.00
92069
920691020
ref: 92069
BULB,12C3W T-7
€ 3.00
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92069B
920691070
ref: 92069B
BULB,12V 1.7W
€ 3.00
92077
920771073
ref: 92077
KNOB,METER
€ 4.00
92160
921601064
ref: 92160
DAMPER,SPEEDOMETER
€ 18.50
92160A
921601068
ref: 92160A
DAMPER
€ 4.50
223
223C0406
ref: 223
SCREW-PAN-WS-CROS,4X6
€ 2.50
311
311C0400
ref: 311
NUT-HEX
€ 0.50
92160B
921601274
ref: 92160B
DAMPER,TACHO&TEMP MET
€ 30.50
92160C
921601320
ref: 92160C
DAMPER,PILOT BOX
€ 2.50
