COWLING LOWERS(ZX400-L3)

ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

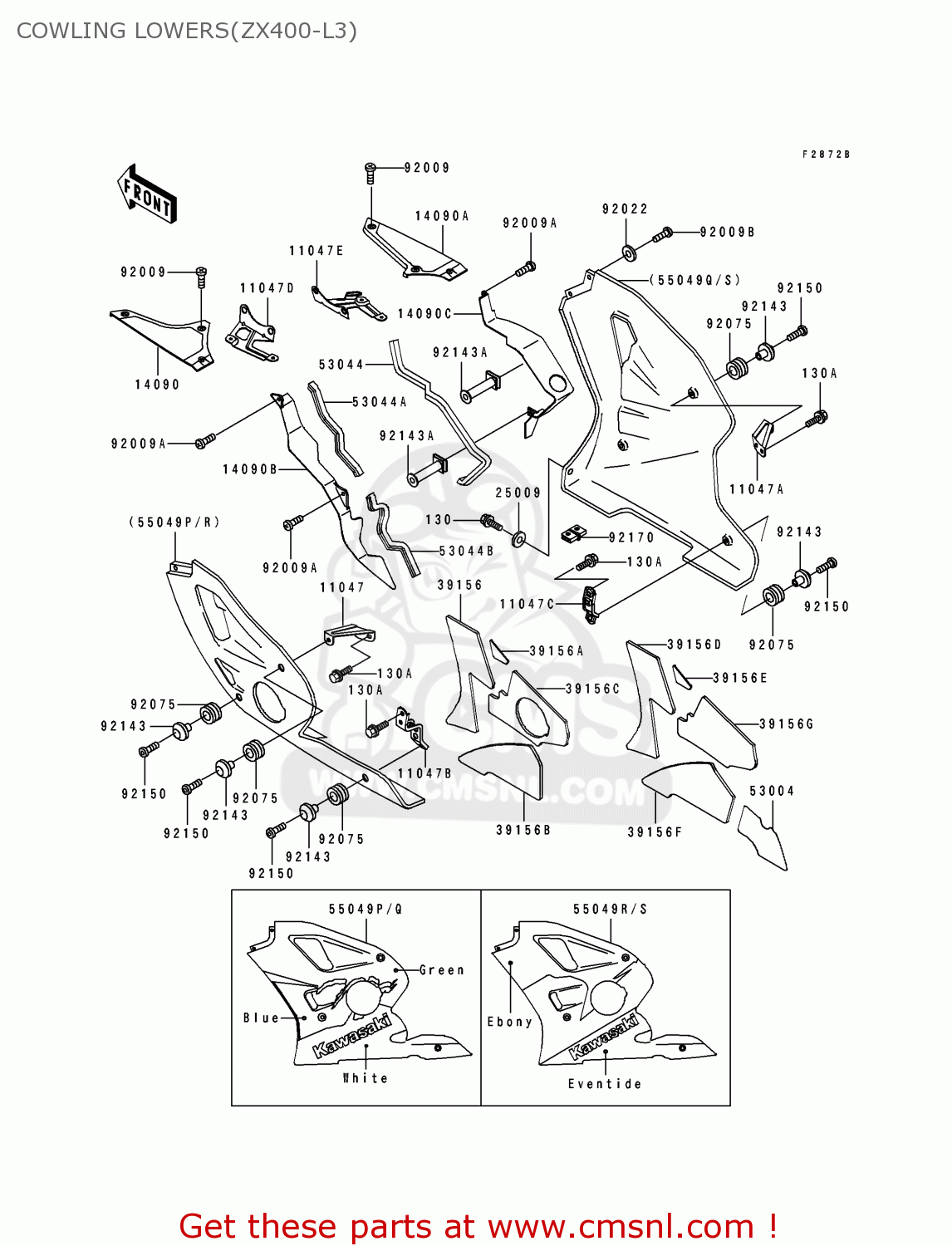

Cowling lowers(zx400-l3) diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

COWLING LOWERS(ZX400-L3) ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
COWLING LOWERS(ZX400-L3) ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
COWLING LOWERS(ZX400-L3) ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
prices are in EUR
ref
part #
description
quantity
11047
110471320
ref: 11047
BRACKET,LWR COWLING,C
110471320
€ 7.00
11047A
110471321
ref: 11047A
BRACKET,LWR COWLING,C
110471321
€ 7.00
11047B
110471322
ref: 11047B
BRACKET,LWR COWLING,R
110471322
€ 8.50
11047C
110471323
ref: 11047C
BRACKET,LWR COWLING,R
110471323
€ 8.50
11047D
110471471
ref: 11047D
BRACKET,INNER COVER,L
110471471
€ 20.00
11047E
110471472
ref: 11047E
BRACKET,INNER COVER,R
110471472
€ 24.50
14090
140901081
ref: 14090
COVER,INNER,LH
140901081
€ 22.50
14090A
140901082
ref: 14090A
COVER,INNER,RH
140901082
€ 22.50
14090B
140901083
ref: 14090B
COVER,INNER COWLING,L
140901083
€ 52.50
14090C
140901084
ref: 14090C
COVER,INNER COWLING,R
140901084
€ 52.50
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
25009004
€ 2.50
39156
391561233
ref: 39156
PAD,LWR COWLING,LH
€ 17.00
39156A
391561234
ref: 39156A
PAD,LWR COWLING,LH
391561234
€ 3.50
39156B
391561235
ref: 39156B
PAD,LWR COWLING,LH
391561235
€ 9.00
39156C
391561236
ref: 39156C
PAD,LWR COWLING,LH
391561236
€ 13.50
39156D
391561237
ref: 39156D
PAD,LWR COWLING,RH
391561237
€ 17.00
39156E
391561238
ref: 39156E
PAD,LWR COWLING,RH
391561238
€ 3.50
39156F
391561239
ref: 39156F
PAD,LWR COWLING,RH
391561239
€ 11.50
39156G
391561240
ref: 39156G
PAD,LWR COWLING,RH
€ 13.50
53004
530041076
ref: 53004
MAT,LWR COWLING,RH
€ 25.00
53044
530441204
ref: 53044
TRIM,L=460
530441204
€ 20.00
53044A
530441212
ref: 53044A
TRIM,INNER COVER,LH,U
530441212
€ 11.50
53044B
530441226
ref: 53044B
TRIM,INNER COVER,LH,L
530441226
€ 10.00
55049P
550495157CK
ref: 55049P
EUFGFRITUK
COWLING.,LWR,LH,GREEN
€ 437.00
130
130J0520
ref: 130
BOLT-FLANGED
130J0520
€ 2.00
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
55049Q
550495158CK
ref: 55049Q
EUFGFRITUK
COWLING.,LWR,RH,GREEN
€ 549.50
55049R
550495160TV
ref: 55049R
COWLING.,LWR,LH,EBONY
€ 571.00
55049S
550495161TV
ref: 55049S
COWLING.,LWR,RH,EBONY
€ 653.50
92009
920091182
ref: 92009
SCREW,5X12,BLACK
920091182
€ 1.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92009B
920091655
ref: 92009B
SCREW, 5X18 BLACK
920091655
€ 2.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92143
921431226
ref: 92143
COLLAR,BLACK
921431226
€ 7.50
92143A
921431494
ref: 92143A
COLLAR
921431494
€ 10.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
921501553
€ 4.00
92170
921701230
ref: 92170
CLAMP
921701230
€ 6.00
