MUFFLER
ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

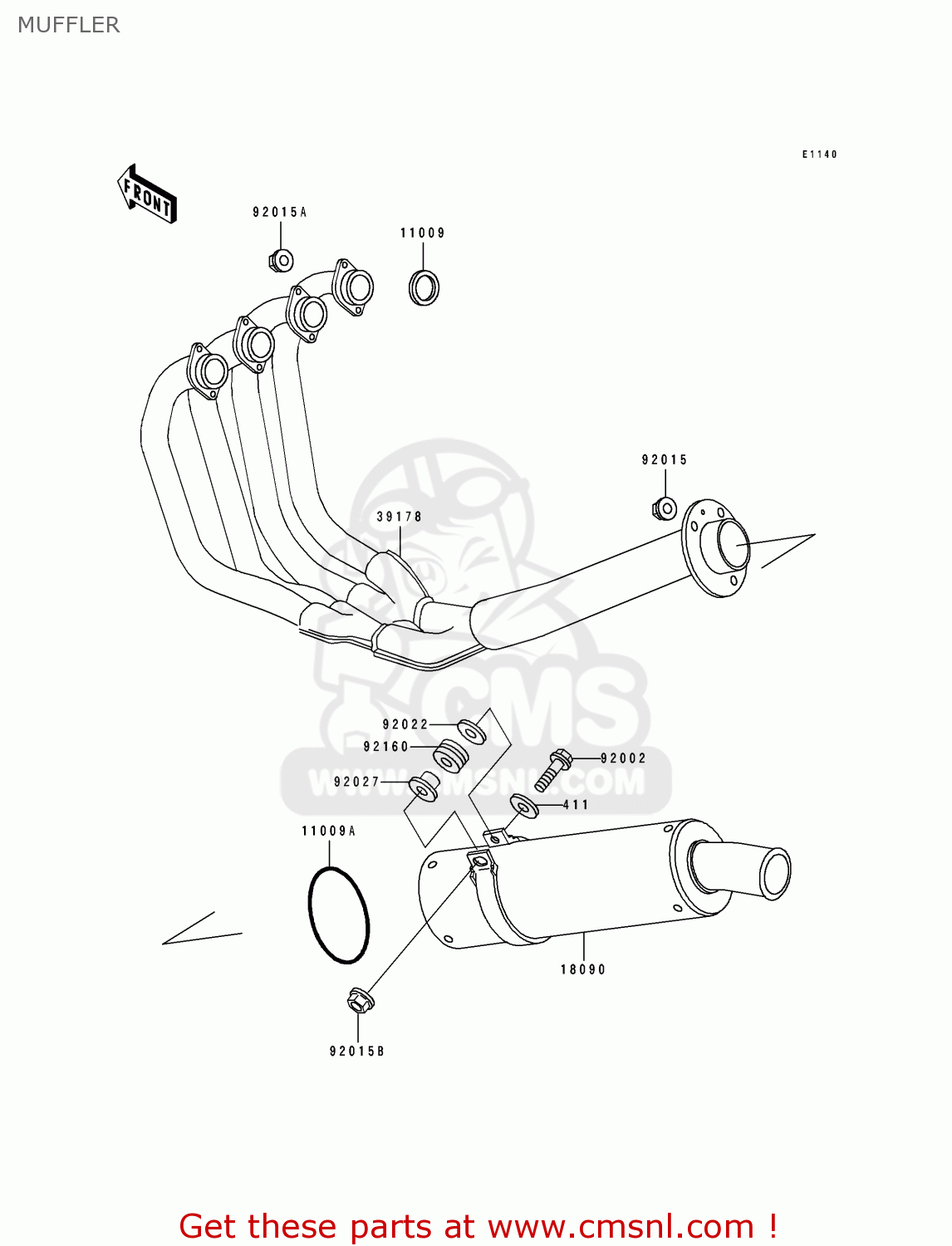

Muffler diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
MUFFLER ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT
×
prices are in EUR
ref
part #
description
quantity
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
11009
110091866
ref: 11009
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
11009A
110091907
ref: 11009A
GASKET,MUFFLER CONNEC (NAS)
€ 14.50
18090
180901119
ref: 18090
BODY-COMP-MUFFLER
€ 367.00
39178
391781206
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 1,183.00
92002
920021445
ref: 92002
BOLT,FLANGED,8X30
€ 3.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151365
ref: 92015A
NUT,6MM
€ 3.00
92015B
920151402
ref: 92015B
NUT,8MM
€ 3.00
92022
92022092
ref: 92022
WASHER
€ 2.50
92027
920271873
ref: 92027
COLLAR
€ 4.00
92160
921601012
ref: 92160
DAMPER
€ 3.50
