OIL COOLER

ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

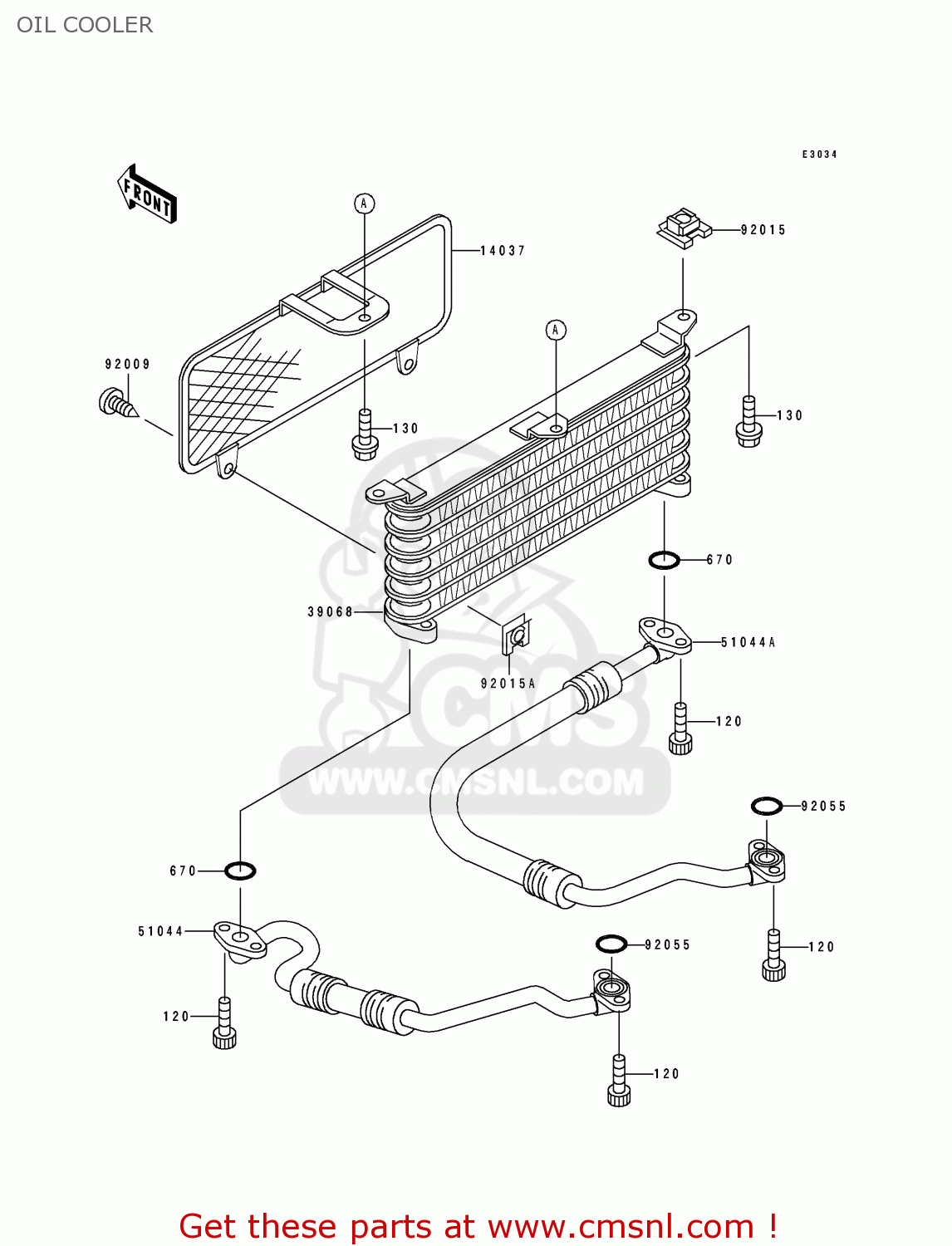

Oil cooler diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

prices are in EUR

ref

part #

description

quantity

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

670

670D2014
ref: 670

O RING,14MM

€ 3.50

14037

140371133
ref: 14037

SCREEN,OIL COOLER

€ 37.00

39068

390681054
ref: 39068

COOLER-ASSY-OIL

€ 495.00

51044

510441126
ref: 51044

TUBE-ASSY,LH

€ 257.50

51044A

510441127
ref: 51044A

TUBE-ASSY,RH

€ 245.00

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92055

920551460
ref: 92055

RING-O,1.9X15.8

€ 3.00
