GEAR CHANGE MECHANISM

ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

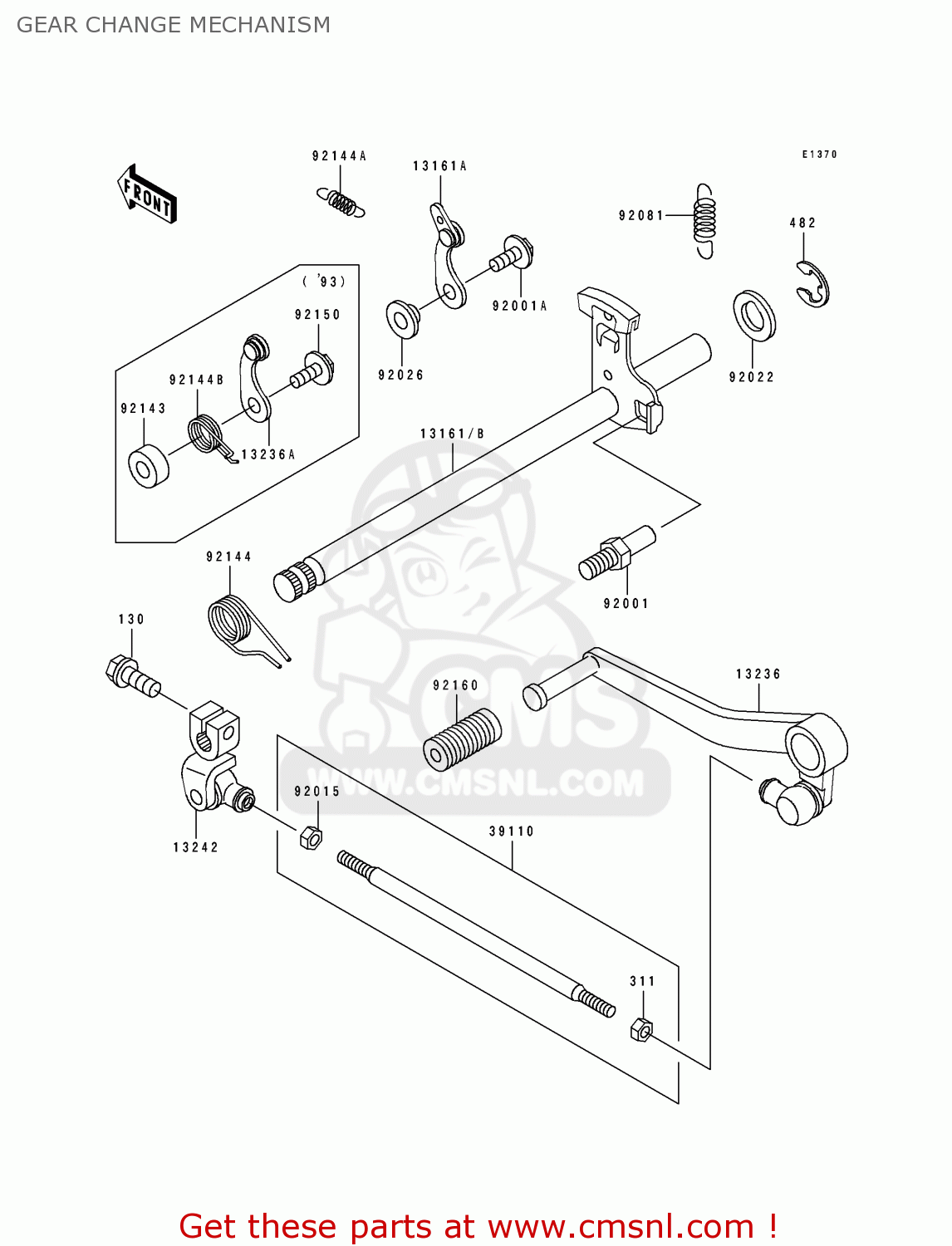

Gear change mechanism diagram ZX400L3 ZXR400 1993 EUROPE UK FR AR FG IT

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311J0600
ref: 311

NUT-HEX

€ 1.00

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13161B

131611191
ref: 13161B

LEVER-COMP-CHANGE SHA

€ 72.00

13236

132361204
ref: 13236

LEVER-COMP,CHANGE PED

€ 47.00

13236A

132361243
ref: 13236A

LEVER-COMP

€ 13.00

13242

132421244
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 24.50

39110

391101100
ref: 39110

ROD-ASSY-TIE

€ 12.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221628
ref: 92022

WASHER,CHANGE SHAFT

€ 4.50

92081

920811708
ref: 92081

SPRING,PAWL RETURN

€ 4.00

92143

921431595
ref: 92143

COLLAR

€ 6.50

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

92144B

921441523
ref: 92144B

SPRING,GEAR POSITION

€ 6.00

92150

921501673
ref: 92150

BOLT

€ 7.00

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
