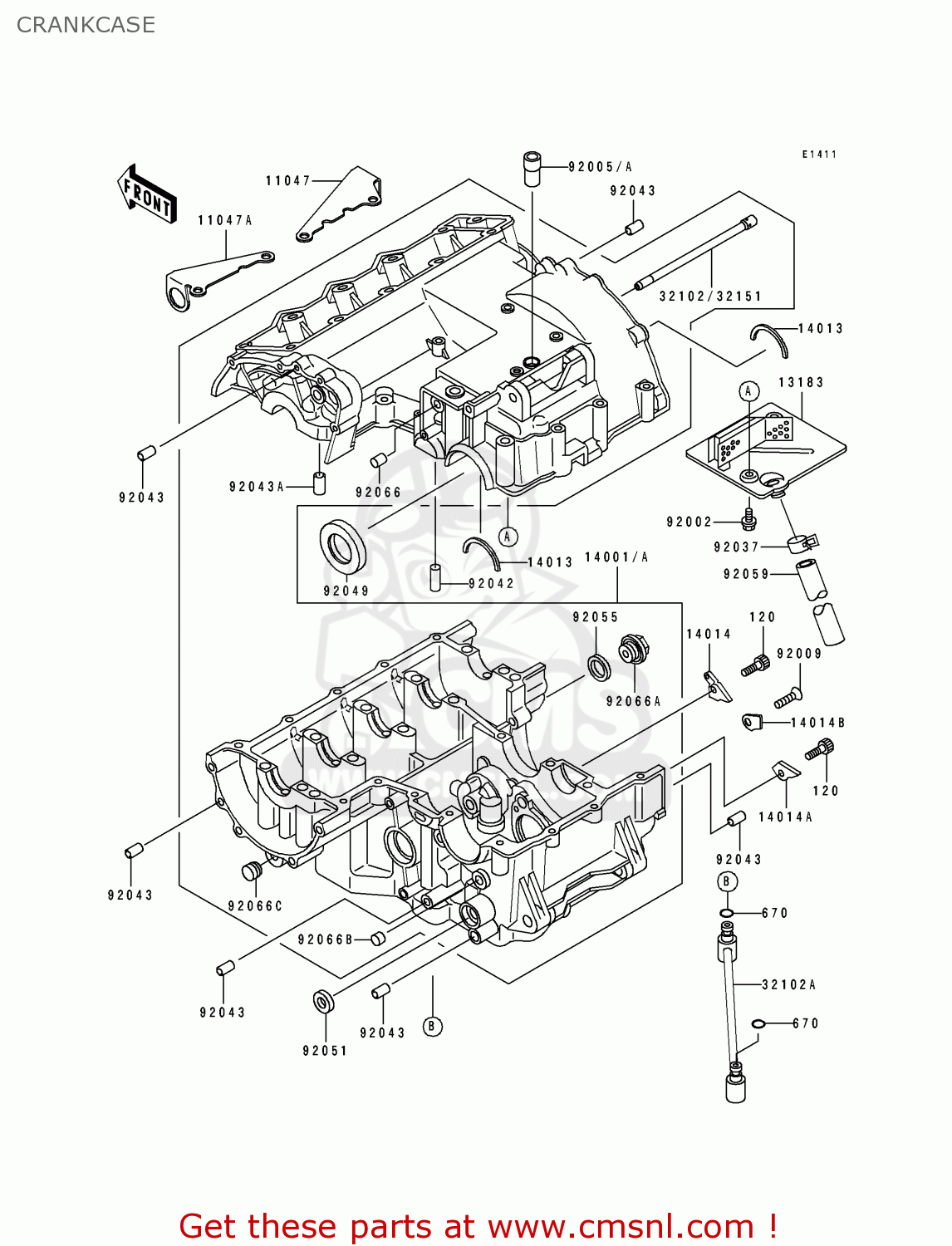

CRANKCASE

ref

part #

description

quantity

120

120P0616
ref: 120

BOLT,SOCKET,6X16

€ 1.50

670

670D1505
ref: 670

O RING

€ 2.50

11047

110471378
ref: 11047

BRACKET,RH

€ 7.50

11047A

110471379
ref: 11047A

BRACKET,LH

€ 7.00

13183

131831936
ref: 13183

PLATE,BREATHER

€ 32.50

14001A

140015315
ref: 14001A

SET-CRANKCASE

€ 1,819.50

14013

14013004
ref: 14013

RING-BEARING SETTING

€ 7.00

14014A

140141090
ref: 14014A

PLATE-POSITION

€ 3.00

14014B

140141111
ref: 14014B

PLATE-POSITION

€ 4.00

32102A

321021931
ref: 32102A

PIPE

€ 18.00

32151

321511283
ref: 32151

PIPE,OIL

€ 27.00

92002

920021449
ref: 92002

BOLT,6X10

€ 2.50

92005A

920051238
ref: 92005A

FITTING,BREATHER

€ 7.50

92009

920091360
ref: 92009

SCREW,6X16

€ 2.50

92037

920371181
ref: 92037

CLAMP

€ 1.00

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92043A

920431264
ref: 92043A

PIN,DOWEL,8.2X10X14

€ 0.50

92049

920491307
ref: 92049

SEAL-OIL,TC32528

€ 8.00

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

920551146
ref: 92055

RING-O

€ 5.50

92059

920591922
ref: 92059

TUBE,10.5X12.5X180

€ 6.50

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92066A

920661096
ref: 92066A

PLUG,MAIN GALLARY,18X

€ 7.50

92066B

920661110
ref: 92066B

PLUG

€ 4.00

92066C

920661252
ref: 92066C

PLUG

€ 4.00

all assemblies
