TURN SIGNALS

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

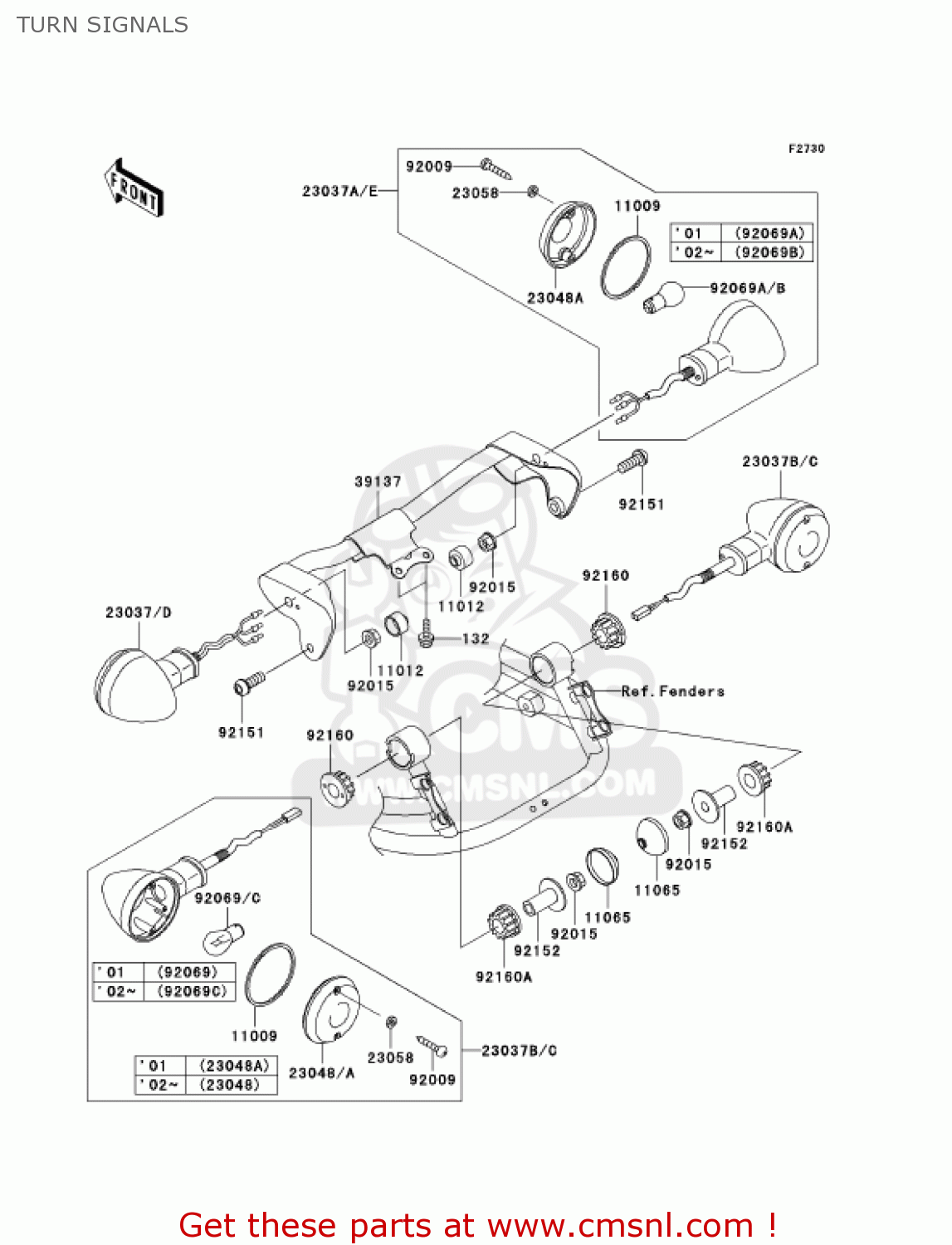

Turn signals diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

TURN SIGNALS VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
TURN SIGNALS VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
TURN SIGNALS VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
11009
110091413
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091413
€ 3.00
11012
110121367
ref: 11012
CAP,SIGNAL LAMP
110121367
€ 4.00
11065
110651115
ref: 11065
CAP,REAR SIGNAL LAMP
110651115
€ 3.00
23037C
230371401
ref: 23037C
LAMP-ASSY-SIGNAL,RR
230371401
€ 58.50
23037D
230371426
ref: 23037D
LAMP-ASSY-SIGNAL,FR,L
€ 46.50
23037E
230371427
ref: 23037E
LAMP-ASSY-SIGNAL,FR,R
230371427
€ 52.00
23048
230481065
ref: 23048
LENS-SIGNAL LAMP
230481065
€ 12.00
23048A
230481066
ref: 23048A
LENS-SIGNAL LAMP
230481066
€ 12.00
23058
23058002
ref: 23058
WASHER,PLAIN,4MM
23058002
€ 2.00
39137
391371078
ref: 39137
STAY-COMP,SIGNAL LAMP
€ 145.50
92009
920091637
ref: 92009
SCREW,TAPPING,4X25
920091637
€ 2.50
92015
920151356
ref: 92015
NUT,10MM
920151356
€ 2.00
92069B
92069063
ref: 92069B
BULB 12V 21/5W
92069063
€ 4.50
92069C
?
ref: 92069C
(LOCAL PROCUREMENT I
?
92151
921511327
ref: 92151
BOLT,SOCKET,8X25
921511327
€ 2.50
92152
921521202
ref: 92152
COLLAR,REAR SIGNAL LA
921521202
€ 10.50
92160
921601966
ref: 92160
DAMPER
921601966
€ 6.50
92160A
921601967
ref: 92160A
DAMPER
921601967
€ 6.50
