BRAKE PEDAL/TORQUE LINK

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

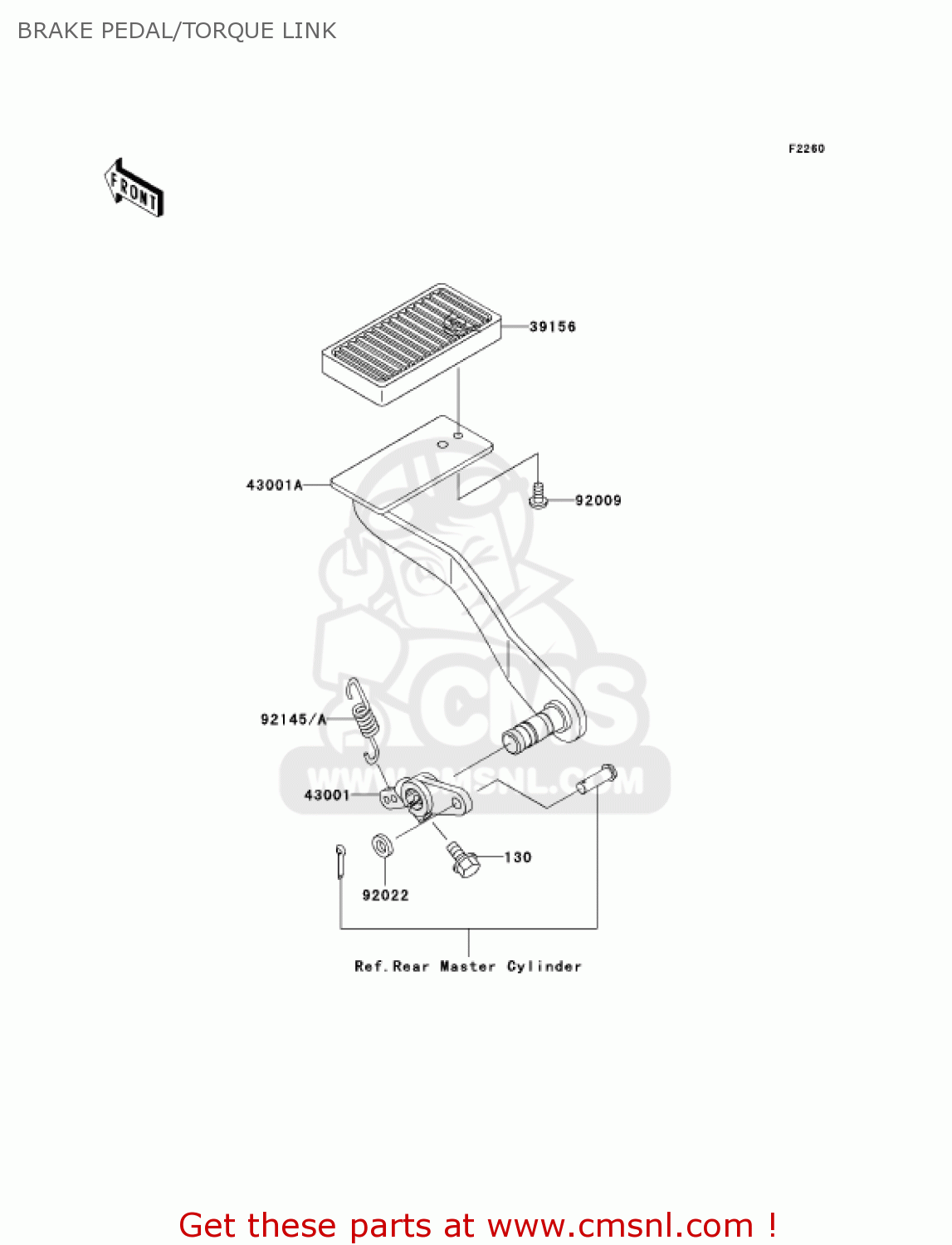

Brake pedal/torque link diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

BRAKE PEDAL/TORQUE LINK VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

BRAKE PEDAL/TORQUE LINK VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130J0830
ref: 130

BOLT-FLANGED,8X30

€ 2.50

39156

391561540
ref: 39156

PAD,BRAKE PEDAL

€ 10.50

43001

430011431
ref: 43001

LEVER-BRAKE

€ 30.00

43001A

430011432
ref: 43001A

LEVER-BRAKE,PEDAL

€ 96.50

92009

920091677
ref: 92009

SCREW,6X8,BLACK

€ 2.50

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92145

921450191
ref: 92145

SPRING,BRAKE PEDAL RE

€ 7.00
