STAND(S)

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

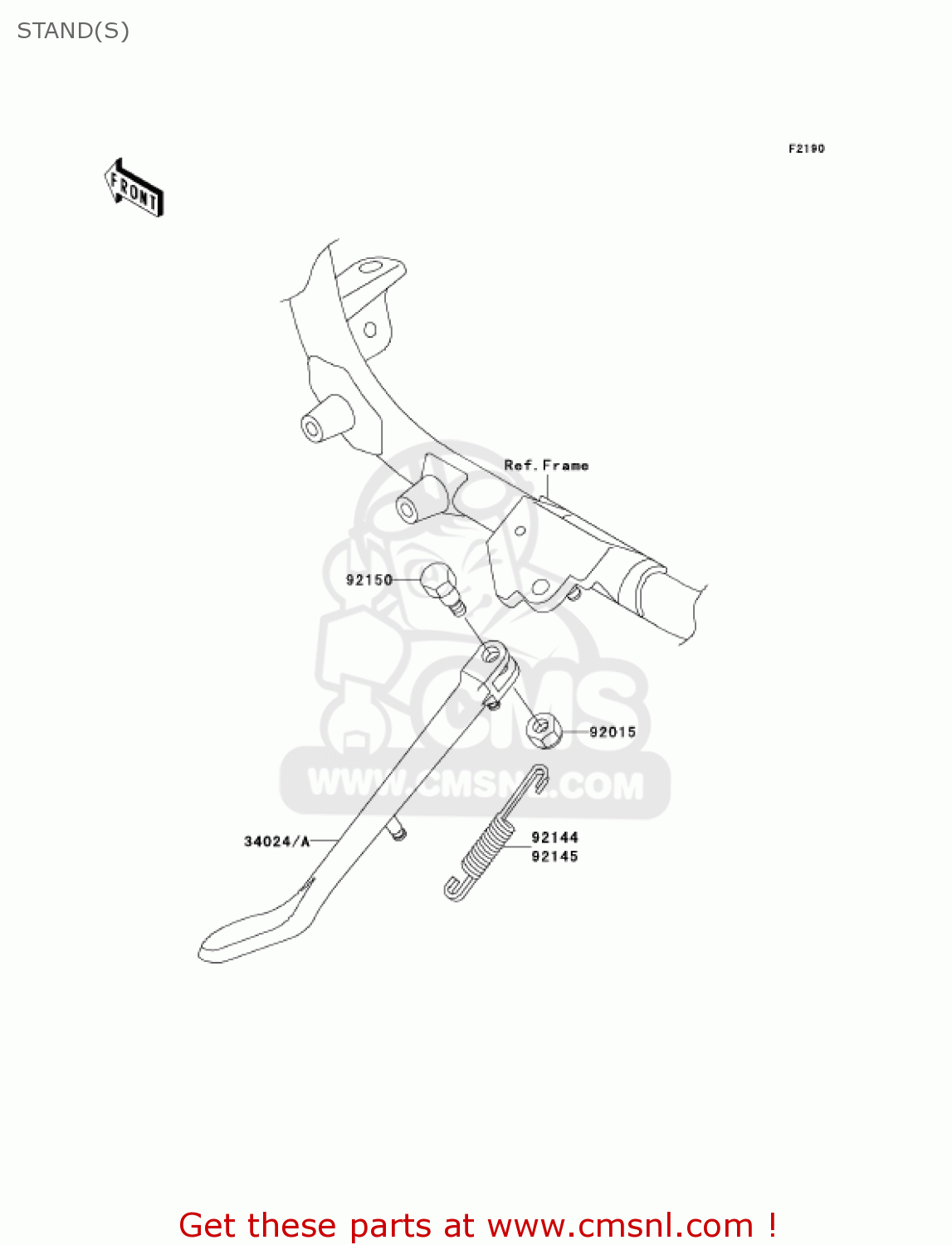

Stand(s) diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

STAND(S) VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

STAND(S) VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

34024A

340241330
ref: 34024A

STAND-SIDE

€ 129.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92145

921450083
ref: 92145

SPRING,SIDE STAND

€ 15.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
