FUEL INJECTION

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

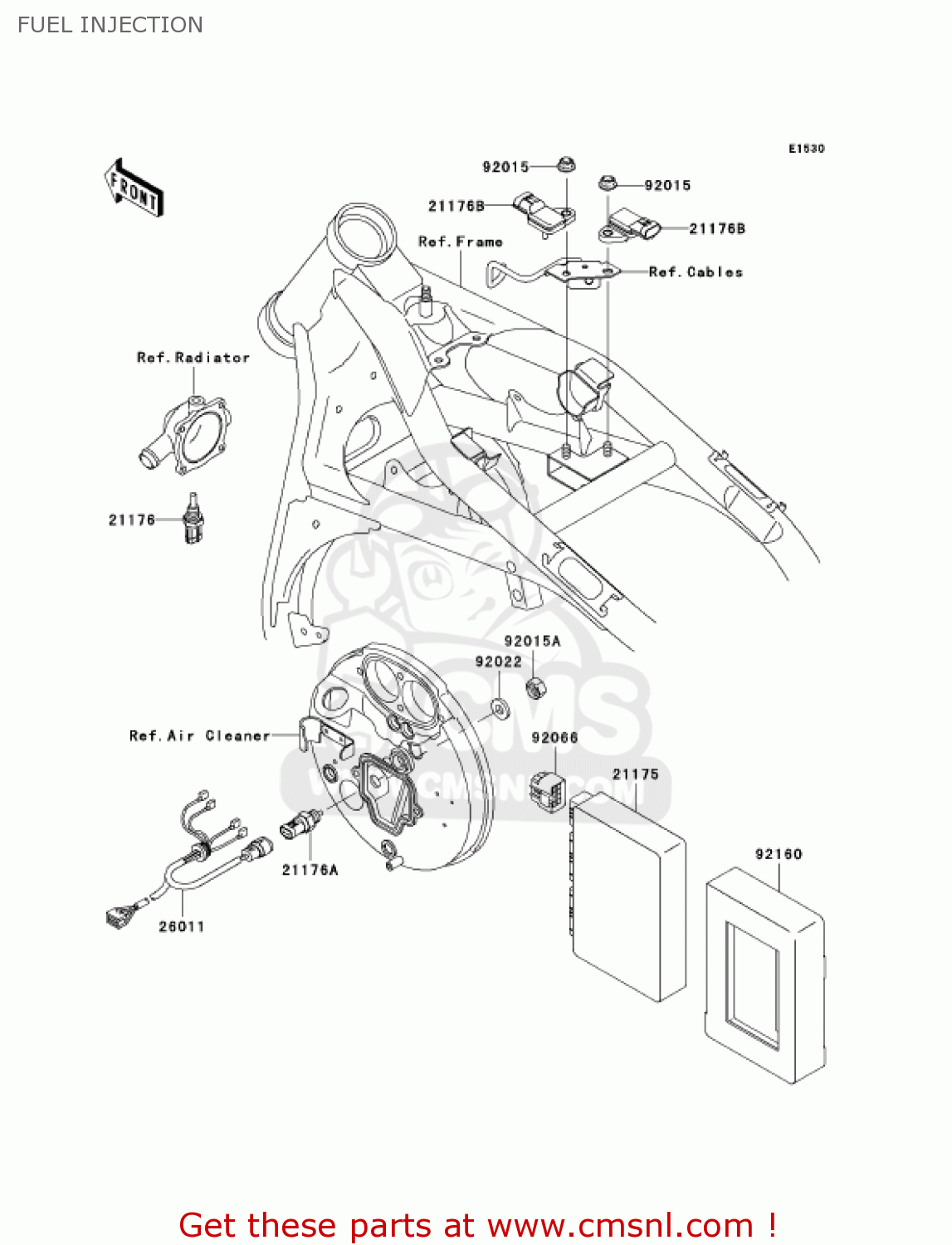

Fuel injection diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

FUEL INJECTION VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

FUEL INJECTION VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

21175

211751064
ref: 21175

CONTROL UNIT-ELECTRON

€ 1,282.50

21176

211761085
ref: 21176

SENSOR,WATER TEMPERAT

€ 52.50

21176A

211761086
ref: 21176A

SENSOR,AIR TEMPERATUR

€ 49.00

21176B

211761118
ref: 21176B

SENSOR IAPS

€ 123.50

26011

260111776
ref: 26011

WIRE-LEAD

€ 66.00

92015

920151386
ref: 92015

NUT,6MM

€ 3.00

92015A

920151395
ref: 92015A

NUT,12MM

€ 3.00

92022

92022269
ref: 92022

WASHER,PLAIN

€ 1.00

92066

920661521
ref: 92066

PLUG

€ 11.00

92160

921601965
ref: 92160

DAMPER

€ 17.50
