SIDE COVERS

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

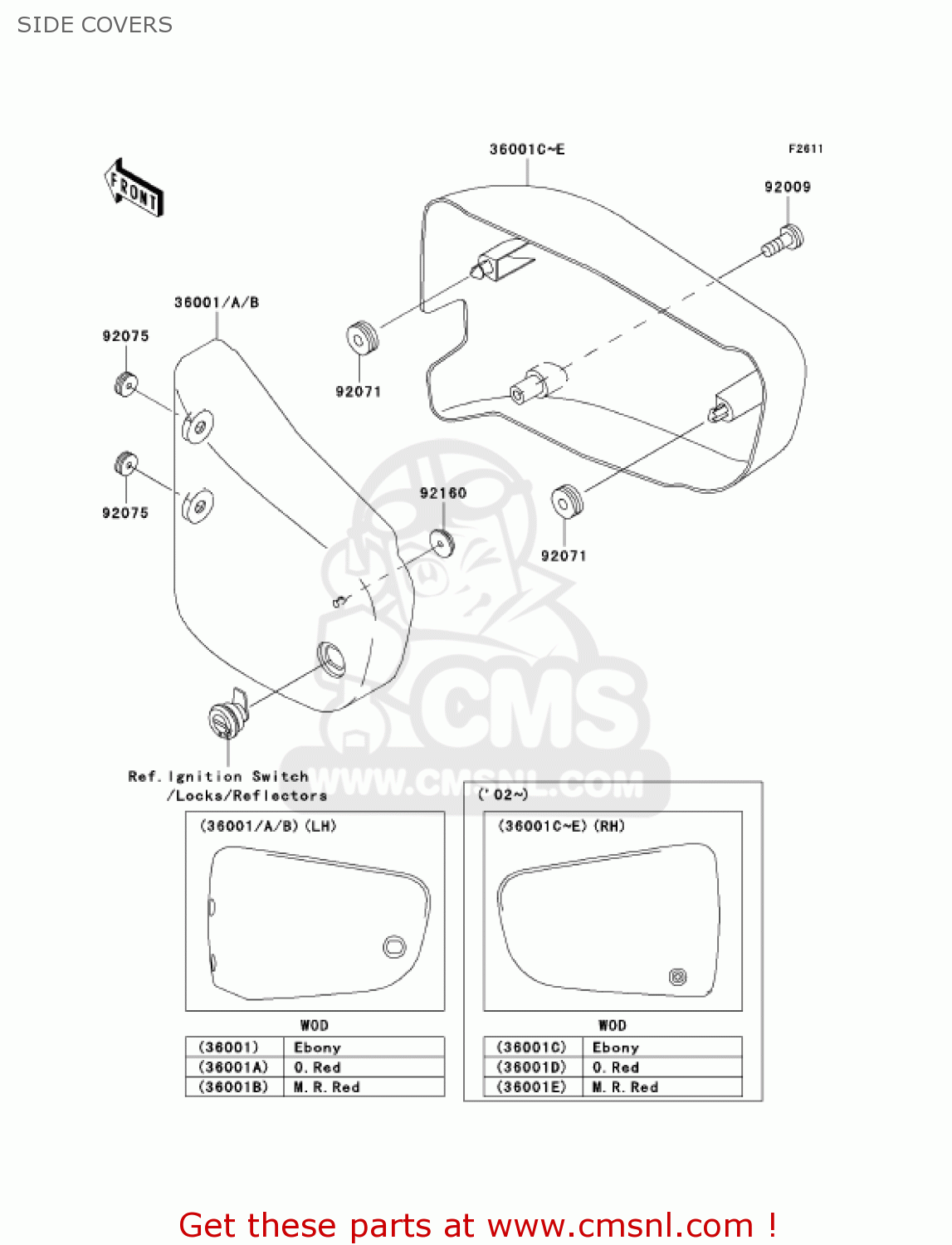

Side covers diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

SIDE COVERS VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

SIDE COVERS VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

36001

360011620H8
ref: 36001

COVER-SIDE,LH,EBONY

€ 165.50

36001

360011621H8
ref: 36001

COVER-SIDE,RH,EBONY

€ 174.00

92009

920091874
ref: 92009

SCREW,6X35

€ 2.00

92071

920711131
ref: 92071

GROMMET

€ 5.00

92075

920751629
ref: 92075

DAMPER,SEAT COVER KIT

€ 3.00

92160

921601944
ref: 92160

DAMPER

€ 2.00
