CABLES

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

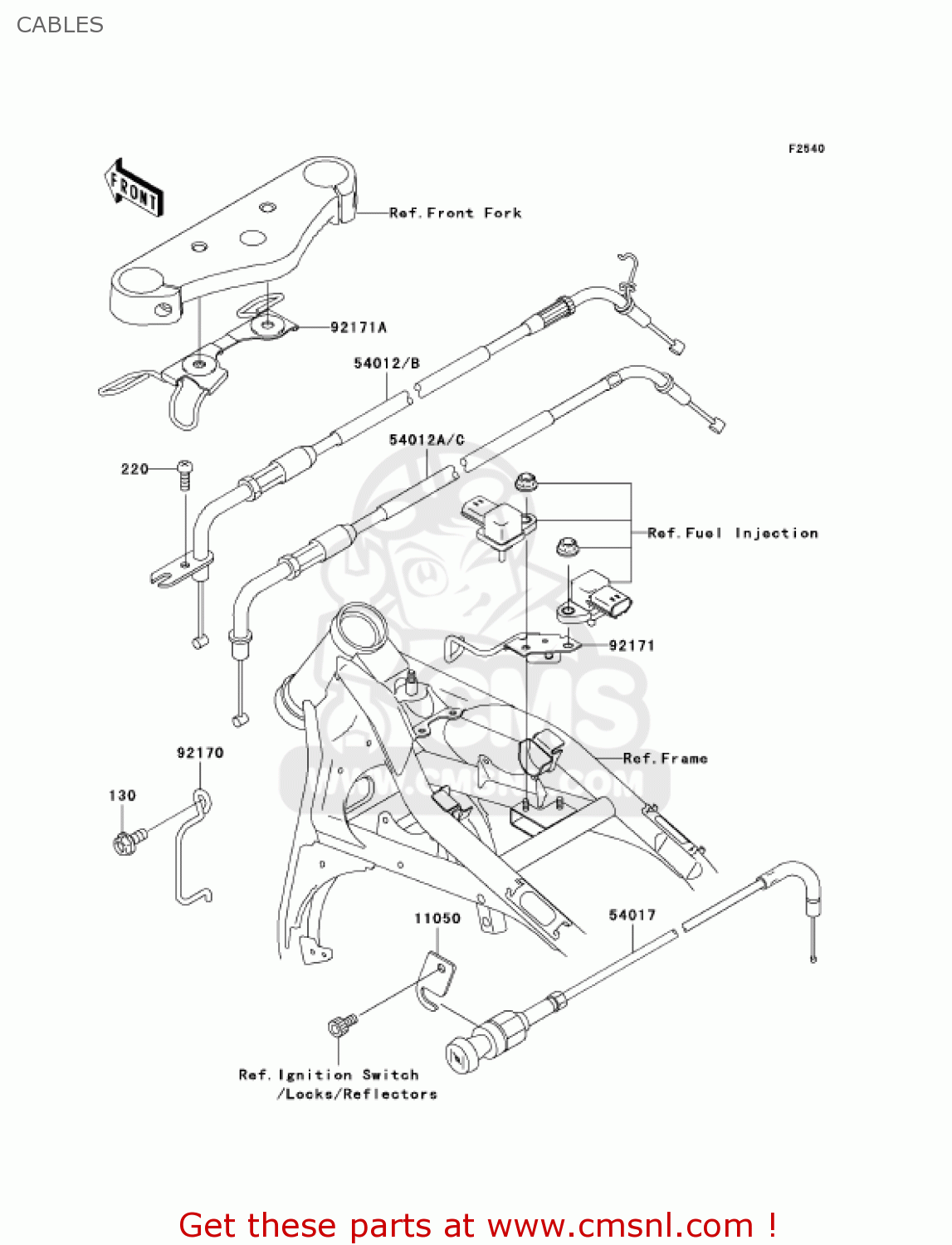

Cables diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

220

220F0514
ref: 220

SCREW-PAN-CROSS

€ 1.00

11050

110501699
ref: 11050

BRACKET,STARTER CABLE

€ 2.50

54012

540120064
ref: 54012

CABLE-THROTTLE,OPENIN

€ 30.00

54012A

540120065
ref: 54012A

CABLE-THROTTLE,CLOSIN

€ 30.00

54017

540171202
ref: 54017

CABLE-STARTER

€ 30.00

92170

921701867
ref: 92170

CLAMP,CABLE

€ 10.50

92171

921711325
ref: 92171

CLAMP,HARNESS

€ 16.50

92171A

921711339
ref: 92171A

CLAMP,CABLE

€ 72.50
