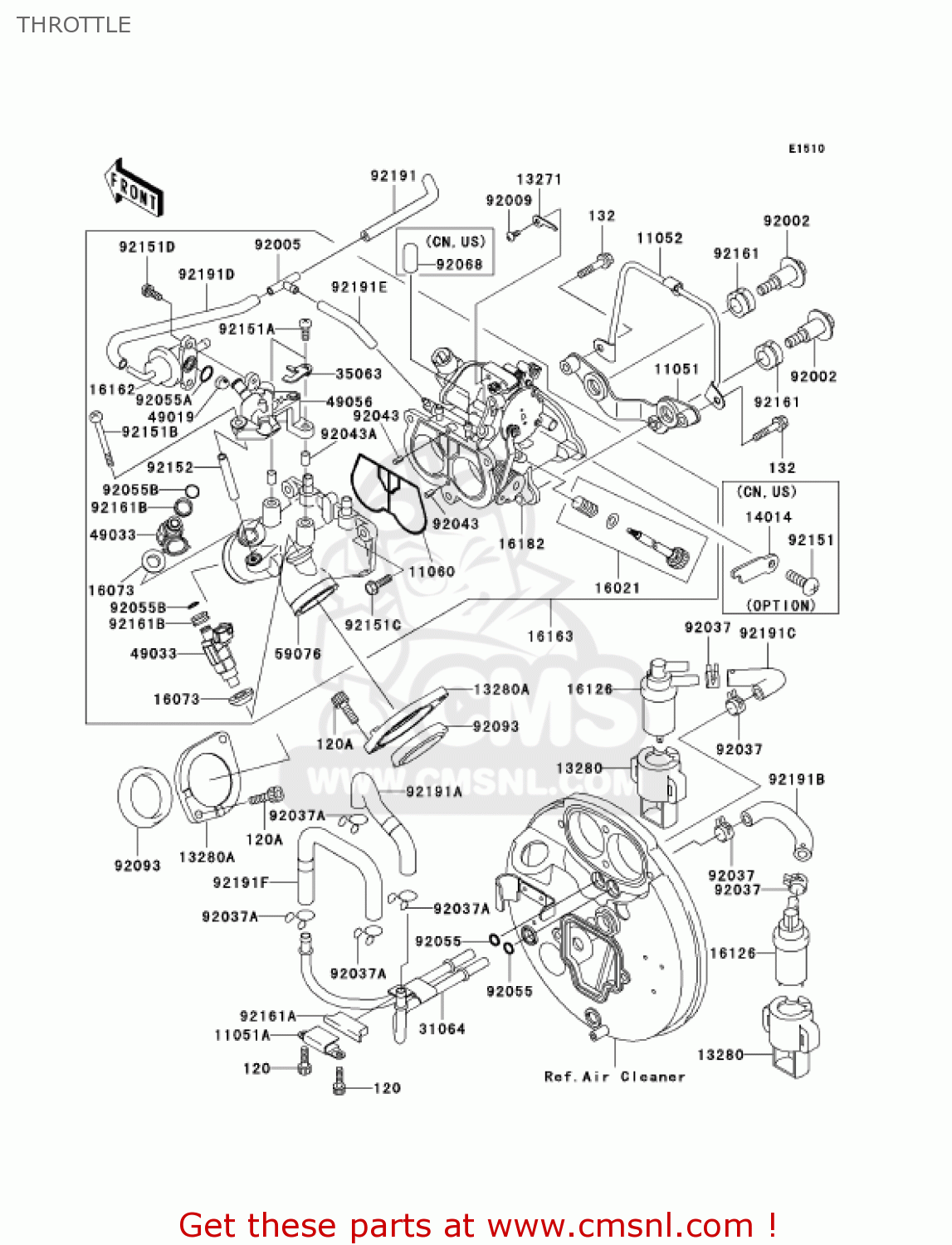

THROTTLE

ref

part #

description

quantity

11051

110511333
ref: 11051

BRACKET

€ 27.50

11051A

110511345
ref: 11051A

BRACKET

€ 4.00

11052

110521067
ref: 11052

BRACKET,HIGH TENSHION

€ 41.00

11060

110601928
ref: 11060

GASKET,THROTTLE BODY (NAS)

€ 32.00

13271

132711314
ref: 13271

PLATE,STARTER CABLE

€ 1.50

13280

132801139
ref: 13280

HOLDER

€ 18.50

13280A

132801154
ref: 13280A

HOLDER

€ 20.00

14014

140141142
ref: 14014
[US] (

PLATE-POSITION,25KW

€ 9.00

16021

160211227
ref: 16021

SCREW-THROTTLE STOP

€ 70.50

16073

160731119
ref: 16073

INSULATOR

€ 15.00

16126

161261372
ref: 16126

VALVE

€ 53.50

16162

161621054
ref: 16162

REGULATOR-FUEL

€ 164.00

16163

161631099
ref: 16163

THROTTLE-ASSY

€ 1,631.50

16182

161821002
ref: 16182

BODY-THROTTLE

€ 836.50

31064

310641227
ref: 31064

PIPE-COMP

€ 37.50

35063

350631148
ref: 35063

STAY

€ 9.50

49019

490193707
ref: 49019

FILTER-FUEL,STRAINER

€ 7.00

49033

490331057
ref: 49033

NOZZLE-INJECTION

€ 131.00

49056

490561054
ref: 49056

PIPE-INJECTION

€ 214.50

59076

590761110
ref: 59076

MANIFOLD-INTAKE

€ 358.00

92002

920021595
ref: 92002

BOLT,HEAD COVER

€ 8.50

92005

920051366
ref: 92005

FITTING

€ 22.50

92009

920091903
ref: 92009

SCREW

€ 1.50

92037

920371181
ref: 92037

CLAMP

€ 1.00

92037A

920371271
ref: 92037A

CLAMP,FUEL TUBE

€ 2.00

92043

920431600
ref: 92043

PIN,THROTTLE BODY

€ 2.00

92043A

920431601
ref: 92043A

PIN,DELIVERY PIPE

€ 2.00

92055

92055029
ref: 92055

RING-O,7.8X3.5

€ 2.50

92055A

920551620
ref: 92055A

RING-O,FUEL REGULATOR

€ 2.50

92055B

920551622
ref: 92055B

RING-O,INJECTION NOZZ

€ 1.50

92068

92068006
ref: 92068
[US]

RUBBER PLUG

€ 2.50

92093

920931484
ref: 92093

SEAL

€ 15.00

92151

921511528
ref: 92151
[US] (

BOLT

€ 3.00

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

120A

120Z0620
ref: 120A

BOLT-SOCKET,6X20

€ 3.00

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

92151A

921511585
ref: 92151A

BOLT,5X20

€ 1.50

92151B

921511586
ref: 92151B

BOLT,5X75

€ 2.00

92151C

921511587
ref: 92151C

BOLT,THROTTLE BODY

€ 2.50

92151D

921511588
ref: 92151D

BOLT,6X12

€ 1.50

92152

921521206
ref: 92152

COLLAR,DELIVERY PIPE

€ 7.00

92161

921611058
ref: 92161

DAMPER

€ 3.00

92161A

921611062
ref: 92161A

DAMPER

€ 4.50

92161B

921611083
ref: 92161B

DAMPER,INJECTION NOZZ

€ 5.50

92191

921911298
ref: 92191

TUBE,THROTTLE-BOOST

€ 4.00

92191A

921911366
ref: 92191A

TUBE,FRONT PORT,RED

€ 8.00

92191B

921911367
ref: 92191B

TUBE,REAR VALVE,RED

€ 4.50

92191C

921911368
ref: 92191C

TUBE,FRONT VALVE,BLUE

€ 4.50

92191D

921911402
ref: 92191D

TUBE,L=130

€ 3.50

92191E

921911403
ref: 92191E

TUBE,L=55

€ 2.50

92191F

921911564
ref: 92191F

TUBE,REAR PORT,YELLOW

€ 7.50

all assemblies
