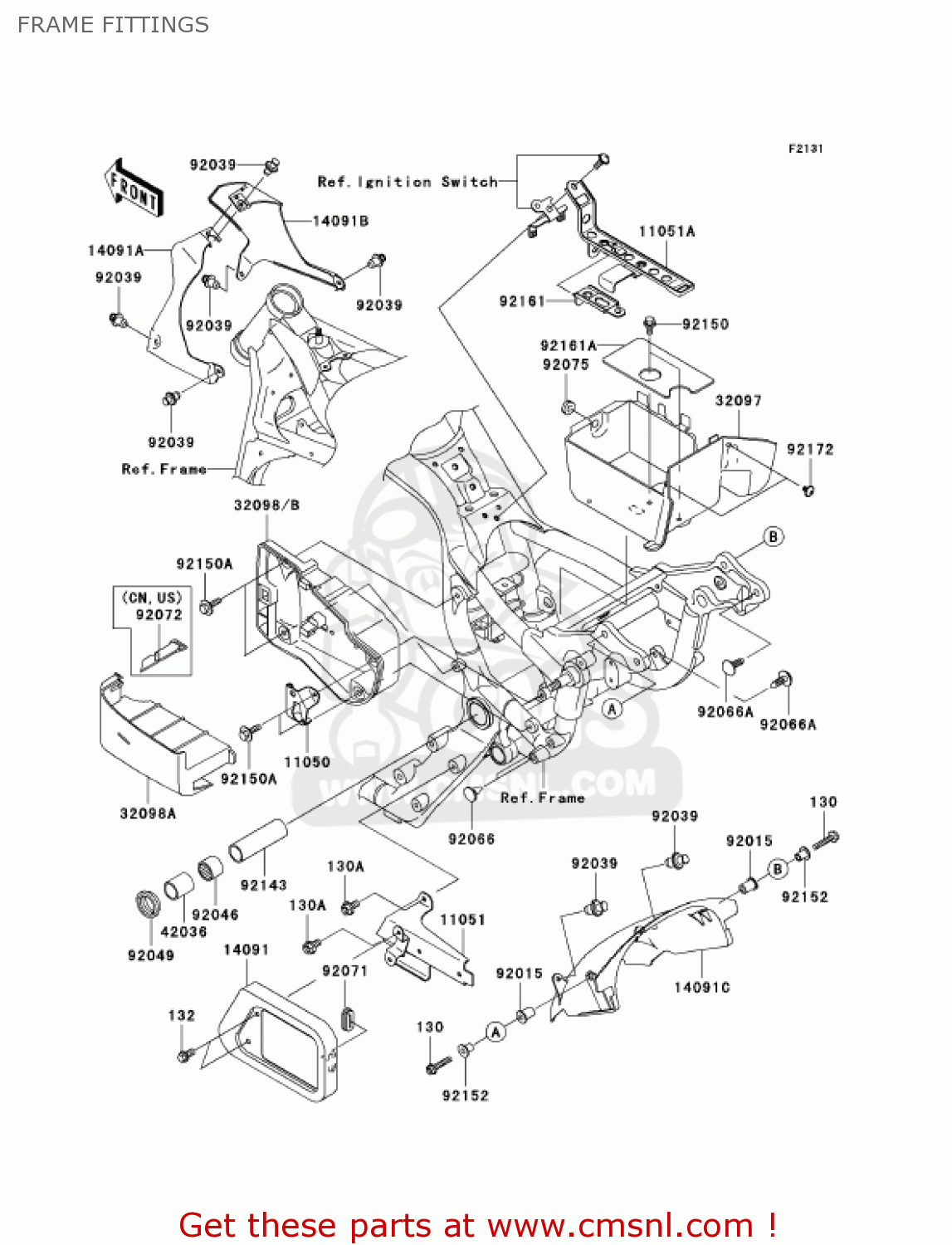

FRAME FITTINGS

ref

part #

description

quantity

130

130J0525
ref: 130

BOLT-FLANGED

€ 2.50

130A

130J0612
ref: 130A

BOLT-FLANGED,6X12,BLA

€ 1.50

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

11050

110501958
ref: 11050

BRACKET,SIDE COVER LO

€ 15.00

11051

110511163
ref: 11051

BRACKET,REGULATOR

€ 45.50

11051A

110511798
ref: 11051A

BRACKET,BATTERY BAND

€ 20.50

14091

140911079
ref: 14091

COVER,REGULATOR

€ 34.00

14091A

140911285
ref: 14091A

COVER,HEAD PIPE,LH

€ 90.00

14091B

140911286
ref: 14091B

COVER,HEAD PIPE,RH

€ 87.00

14091C

140911354
ref: 14091C

COVER,SEAT UNDER

€ 82.00

32097

320971175
ref: 32097

CASE-BATTERY

€ 27.00

32098

320981125
ref: 32098
[US]

CASE-TOOL

€ 112.00

32098A

320981126
ref: 32098A

CASE-TOOL,COVER

€ 97.50

32098B

320981127
ref: 32098B
[CA]

TOOLCASE

€ 74.50

42036

420361330
ref: 42036

SLEEVE,L=45

€ 19.50

92015

920151757A
ref: 92015

NUT,5MM

€ 5.00

92039

920391227
ref: 92039

RIVET

€ 1.00

92046

920461202
ref: 92046

BEARING-NEEDLE,BM2824

€ 25.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92066

920661103
ref: 92066

PLUG

€ 2.50

92066A

920661553
ref: 92066A

PLUG

€ 12.50

92071

920710013
ref: 92071

GROMMET

€ 3.50

92072

920721331
ref: 92072
[US]

BAND,L=470

€ 16.50

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92143

921431878
ref: 92143

COLLAR,20.2X27X90

€ 22.50

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50

92150A

921501198
ref: 92150A

BOLT

€ 2.50

92152

921521304
ref: 92152

COLLAR

€ 4.00

92161

921611096
ref: 92161

DAMPER,BATTERY BAND

€ 7.00

92161A

921611097
ref: 92161A

DAMPER,BATTERY

€ 3.50

92172

921720005
ref: 92172

SCREW,6X10

€ 1.50

all assemblies
