Genuine VN Kawasaki Parts delivered quickly!


GENERATOR

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

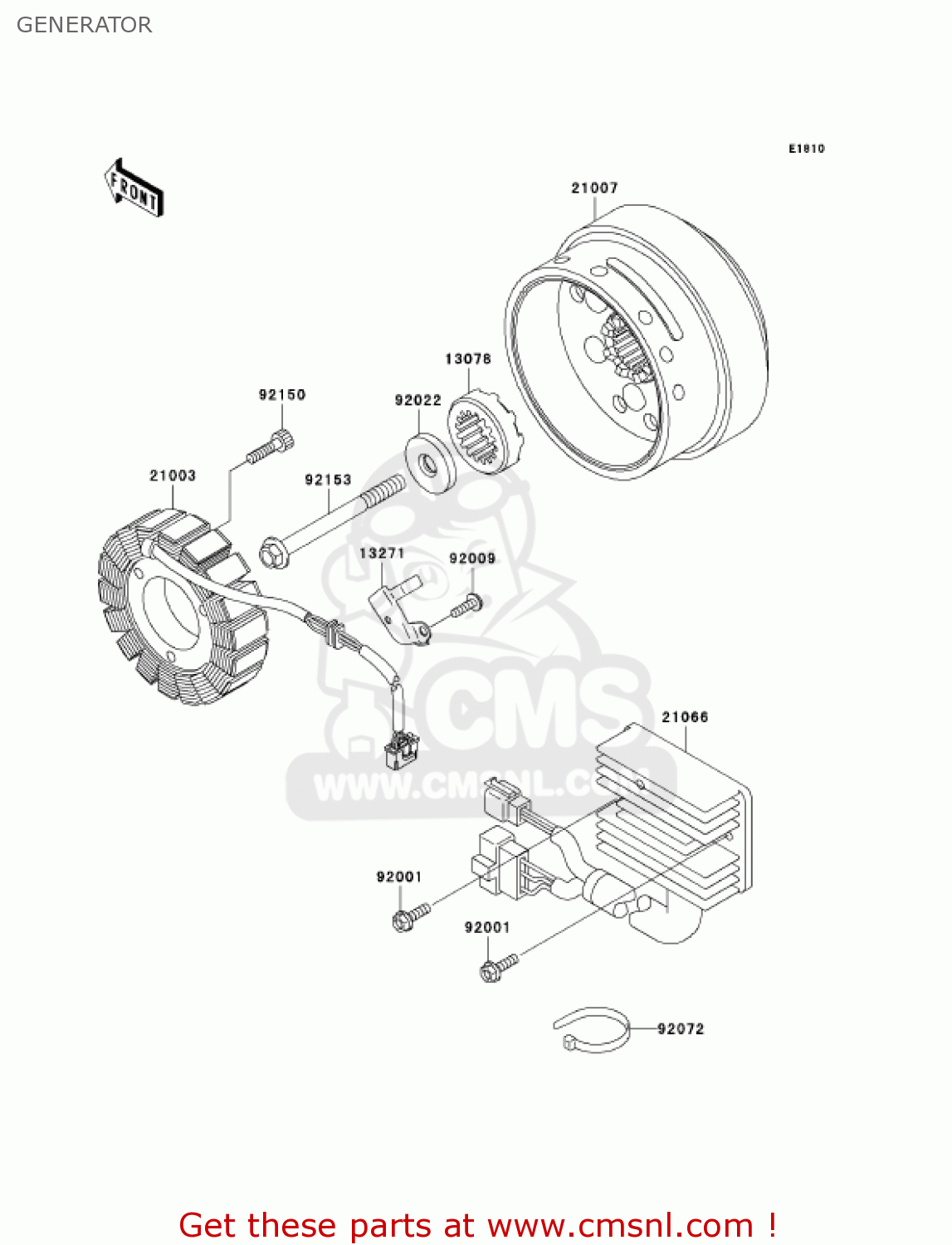

Generator diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

GENERATOR VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
GENERATOR VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
GENERATOR VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13078
130781056
ref: 13078
RATCHET
€ 45.50
13271
132711328
ref: 13271
PLATE
€ 2.50
21003
210030008
ref: 21003
STATOR,OUTER
€ 572.00
21007
210071354
ref: 21007
ROTOR
€ 1,053.50
21066
210661126
ref: 21066
REGULATOR-VOLTAGE
210661126
€ 179.50
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92009
920091768
ref: 92009
SCREW
€ 1.50
92022
920221904
ref: 92022
WASHER,GENERATOR
920221904
€ 9.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92150
921501484
ref: 92150
BOLT,SOCKET,6X35
921501484
€ 4.00
92153
921531105
ref: 92153
BOLT,12X154
€ 21.00
