SEAT

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

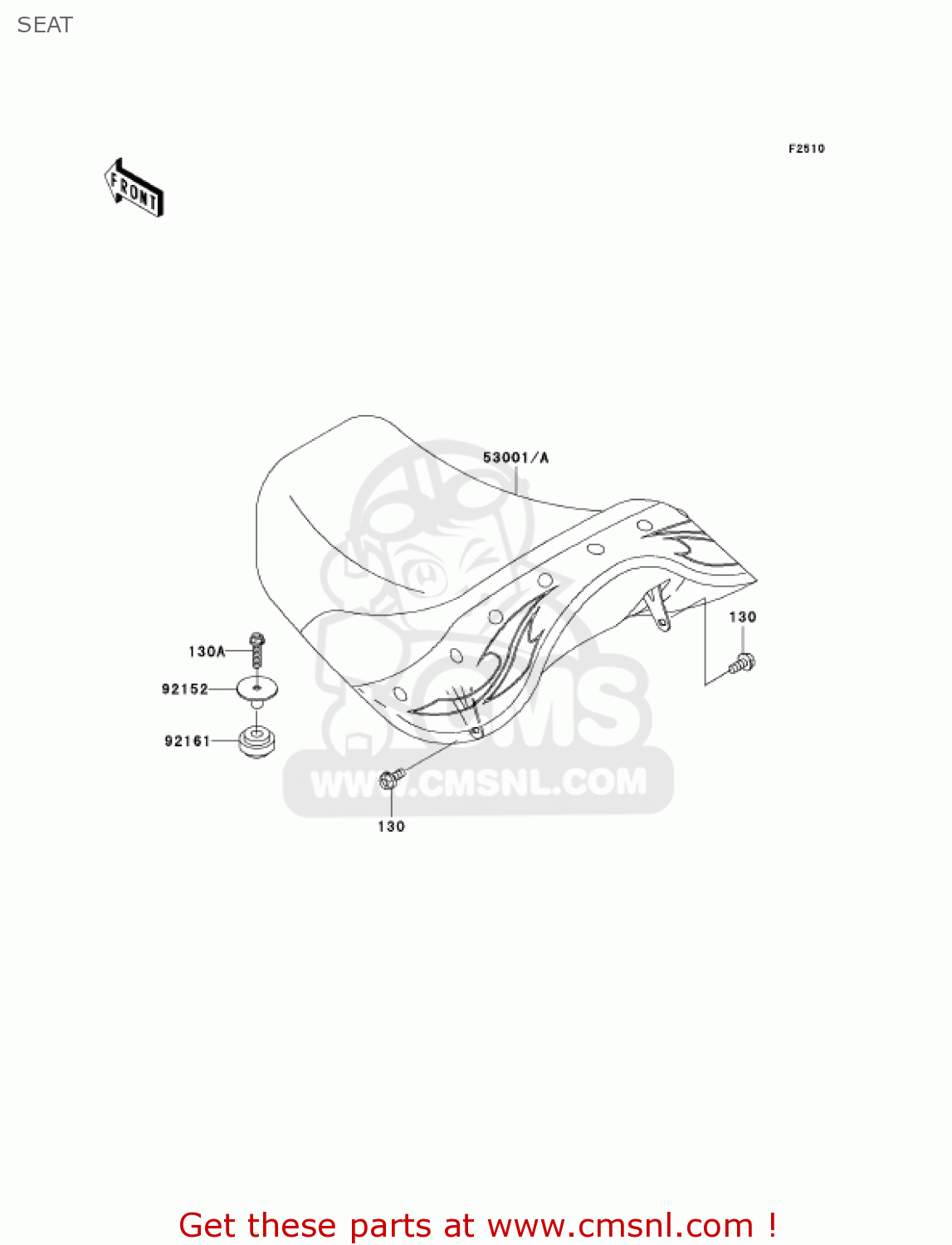

Seat diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

SEAT VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

SEAT VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

130A

130J0835
ref: 130A

BOLT-FLANGED,8X35,BLA

€ 2.50

53001A

530011991MA
ref: 53001A

SEAT-ASSY,FR,BLACK

€ 584.00

92152

921521100
ref: 92152

COLLAR

€ 6.00

92161

921611157
ref: 92161

DAMPER

€ 4.00
