CRANKCASE BOLT PATTERN

VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

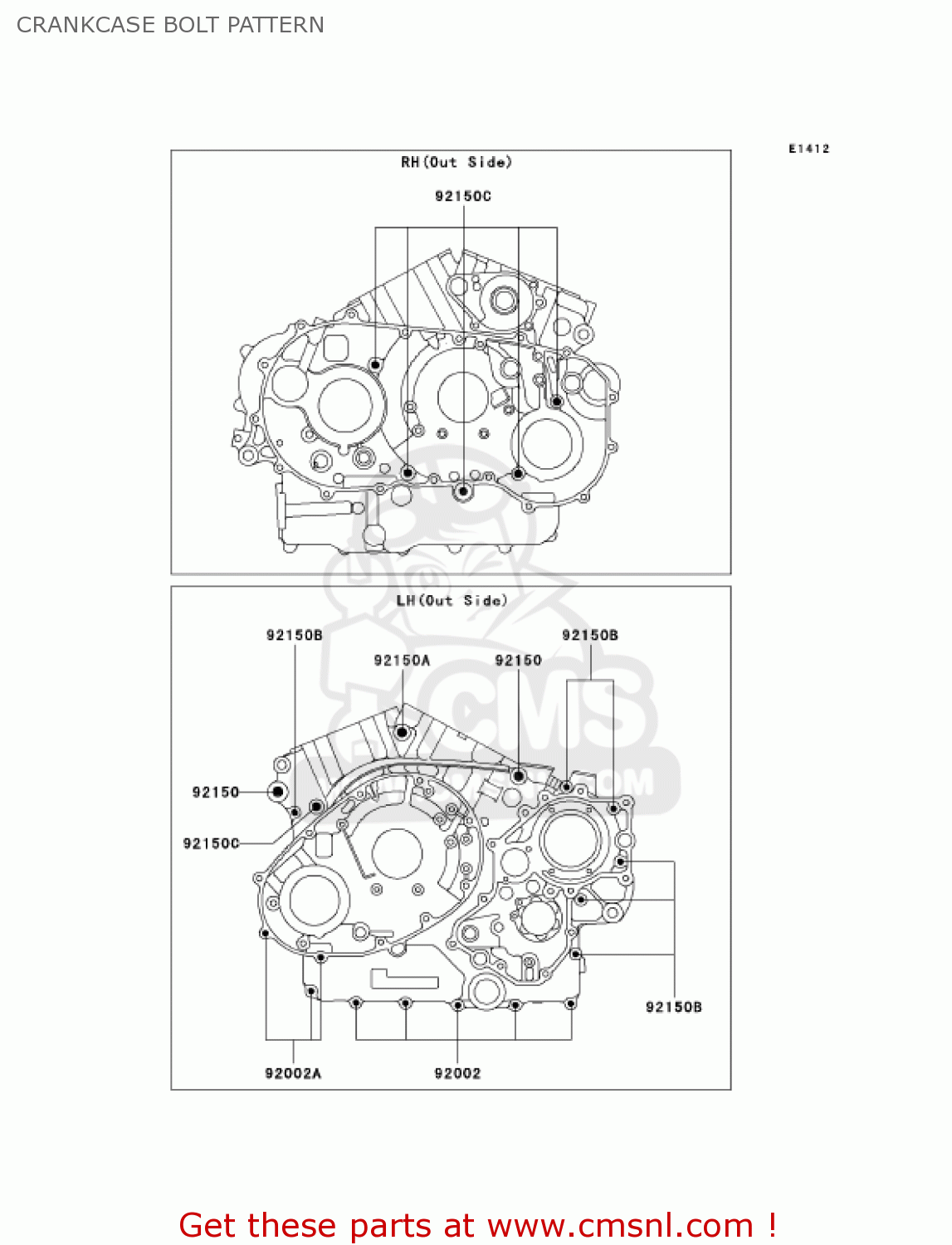

Crankcase bolt pattern diagram VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

CRANKCASE BOLT PATTERN VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

CRANKCASE BOLT PATTERN VN1500R4 VULCAN 1500 DRIFTER 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

92002

920021566
ref: 92002

BOLT,6X40

€ 3.00

92002A

920021568
ref: 92002A

BOLT,6X80

€ 4.00

92150

921501993
ref: 92150

BOLT,10X105

€ 8.00

92150A

921501994
ref: 92150A

BOLT,10X115

€ 8.00

92150B

921501995
ref: 92150B

BOLT,6X70

€ 2.00

92150C

921501996
ref: 92150C

BOLT,8X90

€ 3.00
