TRANSMISSION ('80-'81 C1/C2)
KZ550C1 LTD 1980 USA CANADA

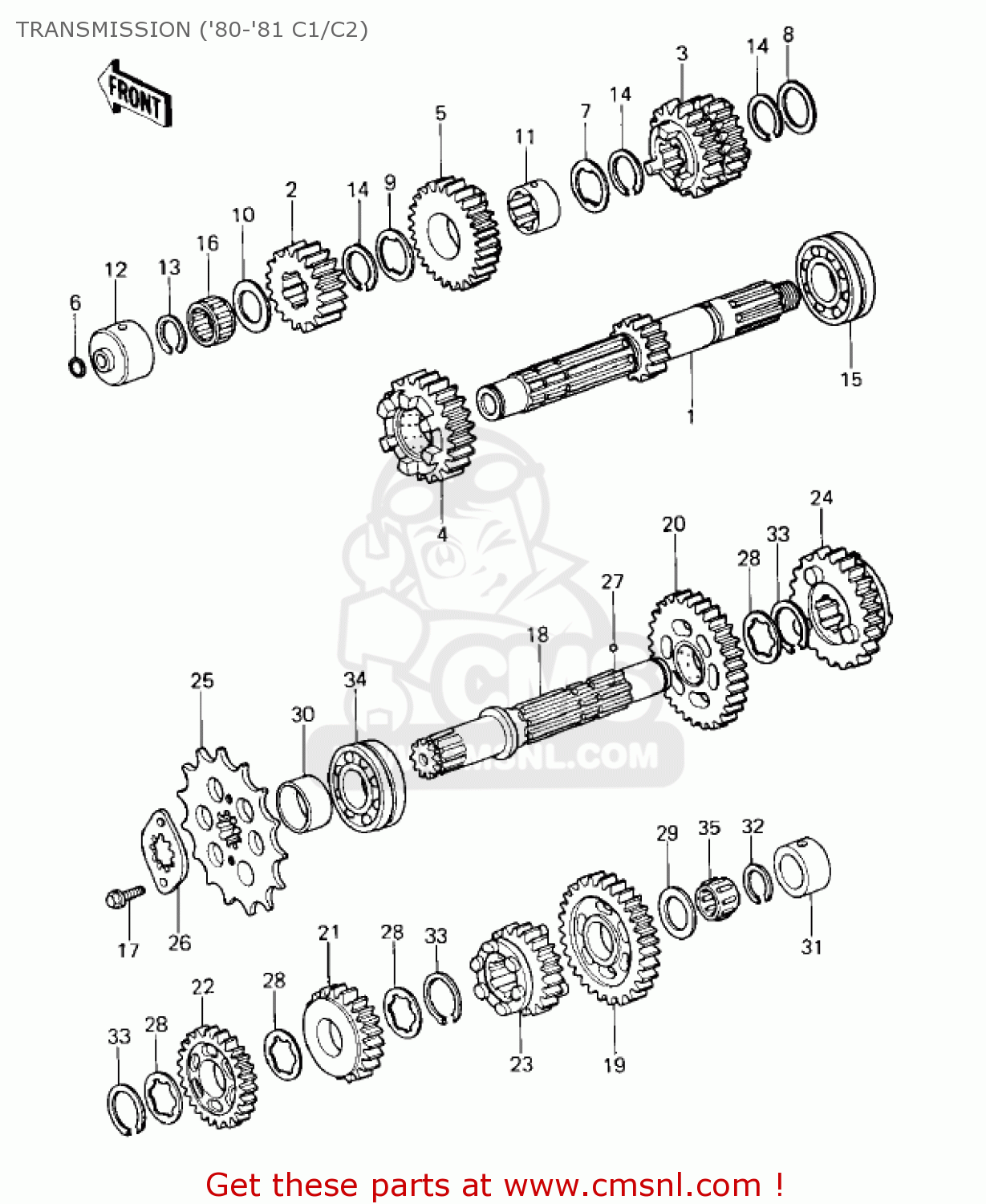

Transmission ('80-'81 c1/c2) diagram KZ550C1 LTD 1980 USA CANADA
TRANSMISSION ('80-'81 C1/C2) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
131271008
ref: 1
SHAFT,DRIVE,14T
€ 265.00
2
131291077
ref: 2
2ND GEAR,DRIVE,18T
€ 79.50
3
132601195
ref: 3
GEAR,INPUT 3RD&4TH,21
€ 103.00
4
131291082
ref: 4
5TH GEAR,DRIVE,26T
€ 56.50
5
131291658
ref: 5
GEAR,INPUT TOP,27T
€ 107.00
6
670B1508
ref: 6
O RING,8MM
€ 1.00
7
920221072
ref: 7
WASHER,TOOTHED,25.3X3
€ 2.00
8
92022161
ref: 8
WASHER-THRUST,25MM
€ 7.00
9
92024033
ref: 9
WASHER,TOOTHED,25.5X3
€ 4.50
10
920261022
ref: 10
SPACER,20.3X30X2.0
€ 3.00
11
920281552
ref: 11
BUSHING,INPUT TOP GEA
€ 17.50
12
920281032
ref: 12
BUSHING,INPUT SHAFT
€ 56.00
13
92033015
ref: 13
CIRCLIP
€ 2.50
14
92033026
ref: 14
CIRCLIP
€ 6.00
15
92045035
ref: 15
BEARING-BALL,83993SH2
€ 66.50
16
920461030
ref: 16
BEARING-NEEDLE,VS20/1
€ 23.00
17
130G0612
ref: 17
BOLT,FLANGE,6X12
€ 0.50
18
131281009
ref: 18
SHAFT-TRANSMISSION OU
€ 163.00
19
131291076
ref: 19
GEAR,OUTPUT LOW,36T
€ 148.50
20
131291078
ref: 20
2ND GEAR,OUTPUT,32T
€ 75.50
21
131291080
ref: 21
GEAR,OUTPUT 3RD,29T
€ 111.50
22
131291081
ref: 22
4TH GEAR,OUTPUT,27T
€ 101.00
23
131291083
ref: 23
GEAR,OUTPUT 5TH,25T
€ 114.50
24
131291662
ref: 24
GEAR,OUTPUT TOP,23T
€ 45.00
25
131441016
ref: 25
SPROCKET-OUTPUT,16T
€ 26.50
26
132701060
ref: 26
PLATE,SPROCKET
€ 5.50
27
600A0500
ref: 27
BALL-STEEL,5/32
€ 0.50
28
920221139
ref: 28
WASHER,TOOTHED,28.3X3
€ 4.00
29
920261022
ref: 29
SPACER,20.3X30X2.0
€ 3.00
30
920271106
ref: 30
COLLAR,25X32X23.5
€ 8.00
31
92028180
ref: 31
BUSHING,OUTPUT SFT
€ 21.50
32
92033015
ref: 32
CIRCLIP
€ 2.50
33
920331037
ref: 33
SNAP RING,25.9X1.2T
€ 3.00
34
92045035
ref: 34
BEARING-BALL,83993SH2
€ 66.50
35
920461030
ref: 35
BEARING-NEEDLE,VS20/1
€ 23.00
