GEAR CHANGE DRUM & FORKS ('80-'8
KZ550C1 LTD 1980 USA CANADA

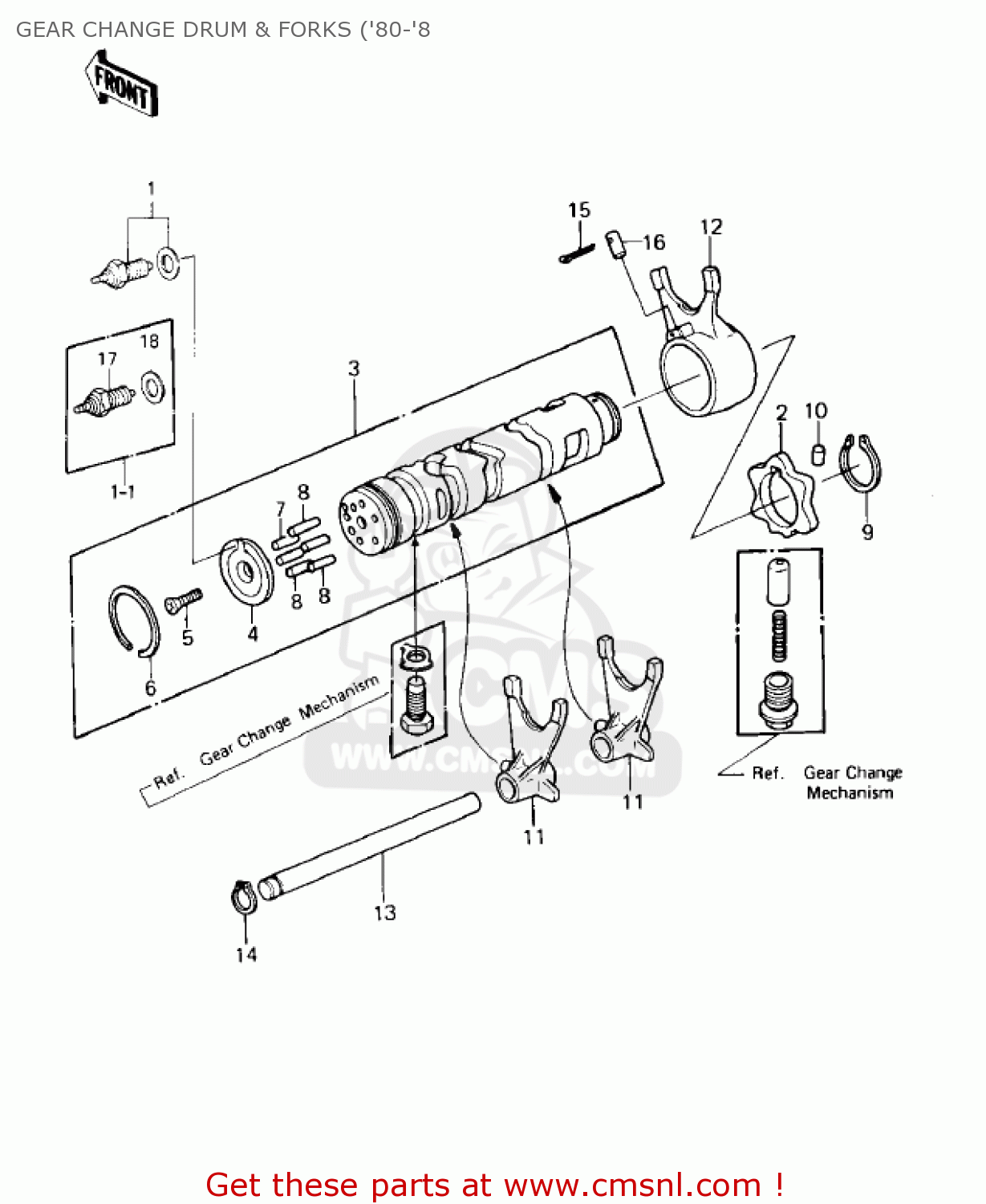

Gear change drum & forks ('80-'8 diagram KZ550C1 LTD 1980 USA CANADA
GEAR CHANGE DRUM & FORKS ('80-'8 KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
131515002
ref: 1
SWITCH,NEUTRAL
€ 22.50
1-1
131515002
ref: 1-1
SWITCH,NEUTRAL
€ 22.50
2
131451058
ref: 2
CAM-CHANGE DRUM
€ 15.00
3
132391119
ref: 3
DRUM-ASSY-CHANGE
€ 175.50
4
130911104
ref: 4
HOLDER,CHANGE DRUM PI
€ 16.50
5
221B0620
ref: 5
SCREW-CNTSNK HD,6X20
€ 0.50
6
92033035
ref: 6
RING-SNAP,37MM
€ 4.00
7
92042014
ref: 7
PIN-GEAR CHANGE DRUM
€ 0.50
8
92042030
ref: 8
PIN,GEAR CHNGE DRUM
€ 2.50
9
480J3000
ref: 9
CIRCLIP-TYPE-C,30MM
€ 3.50
10
610A0406
ref: 10
ROLLER,4X6
€ 2.50
11
131401062
ref: 11
FORK-SHIFT,OUTPUT
€ 74.50
12
131401016
ref: 12
FORK-SHIFT,DRIVE
€ 74.50
13
490475003
ref: 13
ROD-SHIFT
€ 21.50
14
480J1200
ref: 14
CIRCLIP-TYPE-C,12MM
€ 0.50
15
550D3020
ref: 15
PIN-COTTER,3.0X20
€ 2.00
16
92042021
ref: 16
PIN,DOWEL,8X18
€ 7.00
17
131511007
ref: 17
SWITCH,NEUTRAL
€ 9.00
18
92065058
ref: 18
GASKET, 10,5X16X1 (NAS)
€ 2.50
