HEADLIGHT ('80-'81 C1/C2)
KZ550C1 LTD 1980 USA CANADA

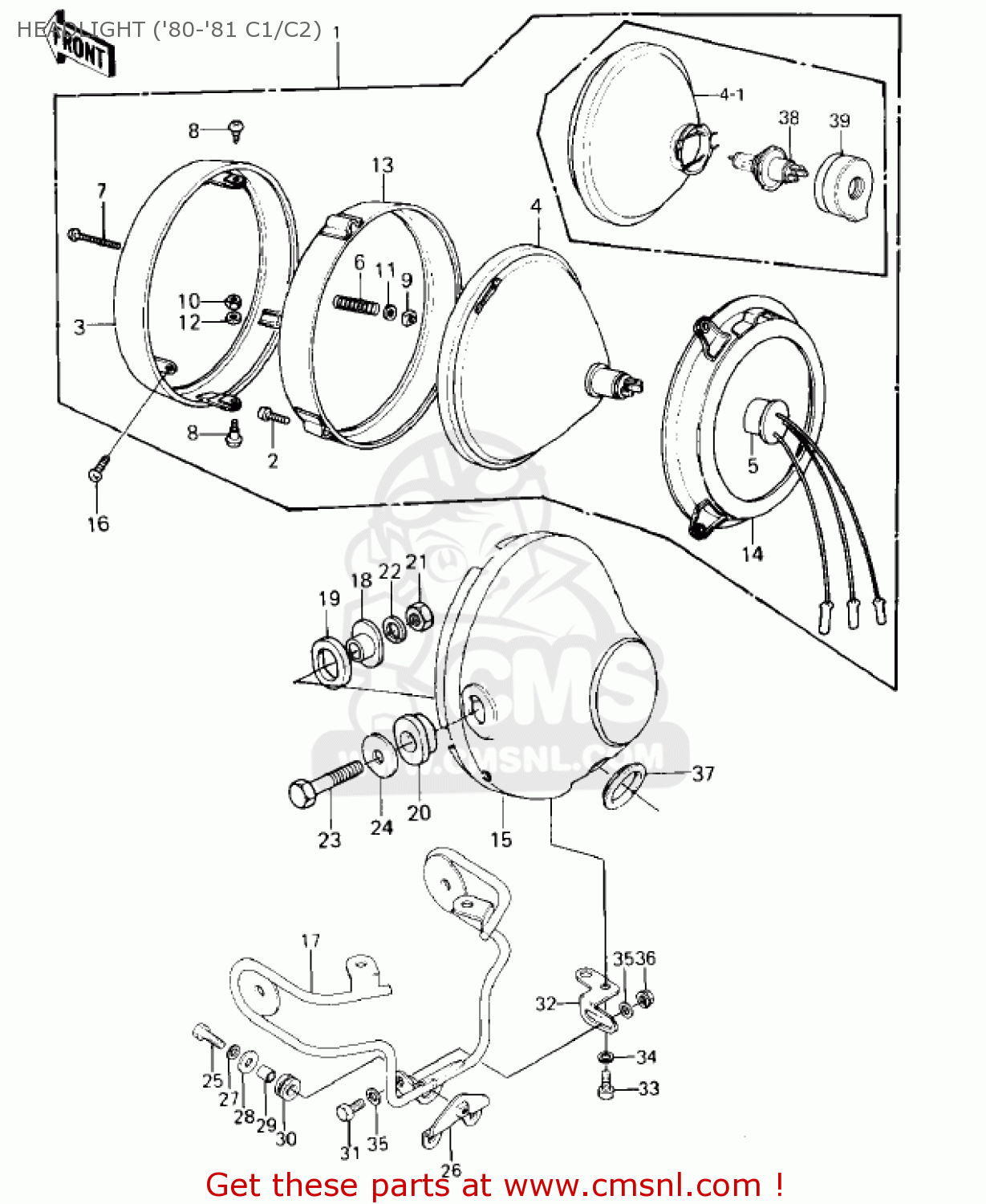

Headlight ('80-'81 c1/c2) diagram KZ550C1 LTD 1980 USA CANADA
HEADLIGHT ('80-'81 C1/C2) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23003017
ref: 1
KZ550-C1
LAMP UNIT, HEAD
€ 429.00
1
230041040
ref: 1
KZ550-C2
HEADLAMP
€ 331.50
2
220B0312
ref: 2
SCREW-PAN CROS,3X12
€ 2.00
3
23006038
ref: 3
RIM-LAMP
€ 56.50
4
23007041
ref: 4
USE FOR 23003-017
LENS-COMP,001-1014 MA
€ 102.00
4-1
230071009
ref: 4-1
USE FOR 23004-1040
LENS UNIT, HEAD LAMP
€ 127.00
5
23008037
ref: 5
USE FOR 23003-017
SOCKET-ASSY,HEAD LAMP
€ 12.50
6
23014005
ref: 6
SPRING-FOCUS ADJUST
€ 2.50
7
23019021
ref: 7
SCREW-FORCUS ADJUST
€ 3.00
8
23019023
ref: 8
SCREW-PAN HEAD,5X12
€ 3.50
9
23020018
ref: 9
NUT,4MM,FOCUS ADJUST
€ 3.00
10
23020023
ref: 10
NUT,5MM
€ 3.00
11
23021004
ref: 11
WASHER,4.1X8X0.8
€ 2.00
12
23021012
ref: 12
WASHER
€ 3.00
13
23072001
ref: 13
RETAINER,HEAD LAMP
€ 26.00
14
23074001
ref: 14
HOLDER,HEAD LAMP
€ 28.00
15
230051016
ref: 15
KZ550-C1
BODY-COMP-HEAD LAMP,C
€ 136.50
15
230051016
ref: 15
KZ550-C2
BODY-COMP-HEAD LAMP,C
€ 136.50
16
23019022
ref: 16
SCREW-SPECIAL,5X14
€ 1.50
17
110341787
ref: 17
HEADLAMP BRACKET
€ 58.50
18
23052011
ref: 18
COLLAR,HEAD LAMP
€ 8.50
19
23066021
ref: 19
DAMPER
€ 6.00
20
23066022
ref: 20
DAMPER
€ 6.00
21
315B1000
ref: 21
NUT,10MM
€ 0.50
22
461F1000
ref: 22
WASHER-SPRING,10MM
€ 0.50
23
92007024
ref: 23
BOLT,10MM
€ 4.50
24
920221054
ref: 24
HEADLAMP WASHER
€ 6.50
25
112G0625
ref: 25
BOLT-UPSET,6X25
€ 4.00
26
110341791
ref: 26
BRACKET
€ 4.00
27
461F0600
ref: 27
WASHER-SPRING,6MM
€ 0.50
28
92022125
ref: 28
WASHER,6.5X20X1.6
€ 1.00
29
92027241
ref: 29
COLLAR
€ 4.50
30
92075209
ref: 30
DAMPER RUBBER
€ 3.00
31
112G0612
ref: 31
BOLT-UPSET
€ 2.50
32
110341792
ref: 32
BRACKET,HEAD LAMP
€ 7.00
33
115G0816
ref: 33
BOLT-HEX,HEAD 8X16
€ 0.50
34
461F0800
ref: 34
WASHER-SPRING,8MM
€ 0.50
35
411B0600
ref: 35
WASHER-PLAIN,6MM
€ 0.50
36
92017014
ref: 36
NUT,LOCK,6MM
€ 4.00
37
920711008
ref: 37
USE FOR 23005-1012
GROMMET
€ 4.00
37
920711008
ref: 37
USE FOR 23005-1016
GROMMET
€ 4.00
38
920691002
ref: 38
USE FOR 23004-1040
BULB,12V-60155W
€ 15.00
39
490161016
ref: 39
USE FOR 23004-1040
COVER-SEAL
€ 16.00
