FRONT WHEEL/HUB ('80-'81 C1/C2)
KZ550C1 LTD 1980 USA CANADA

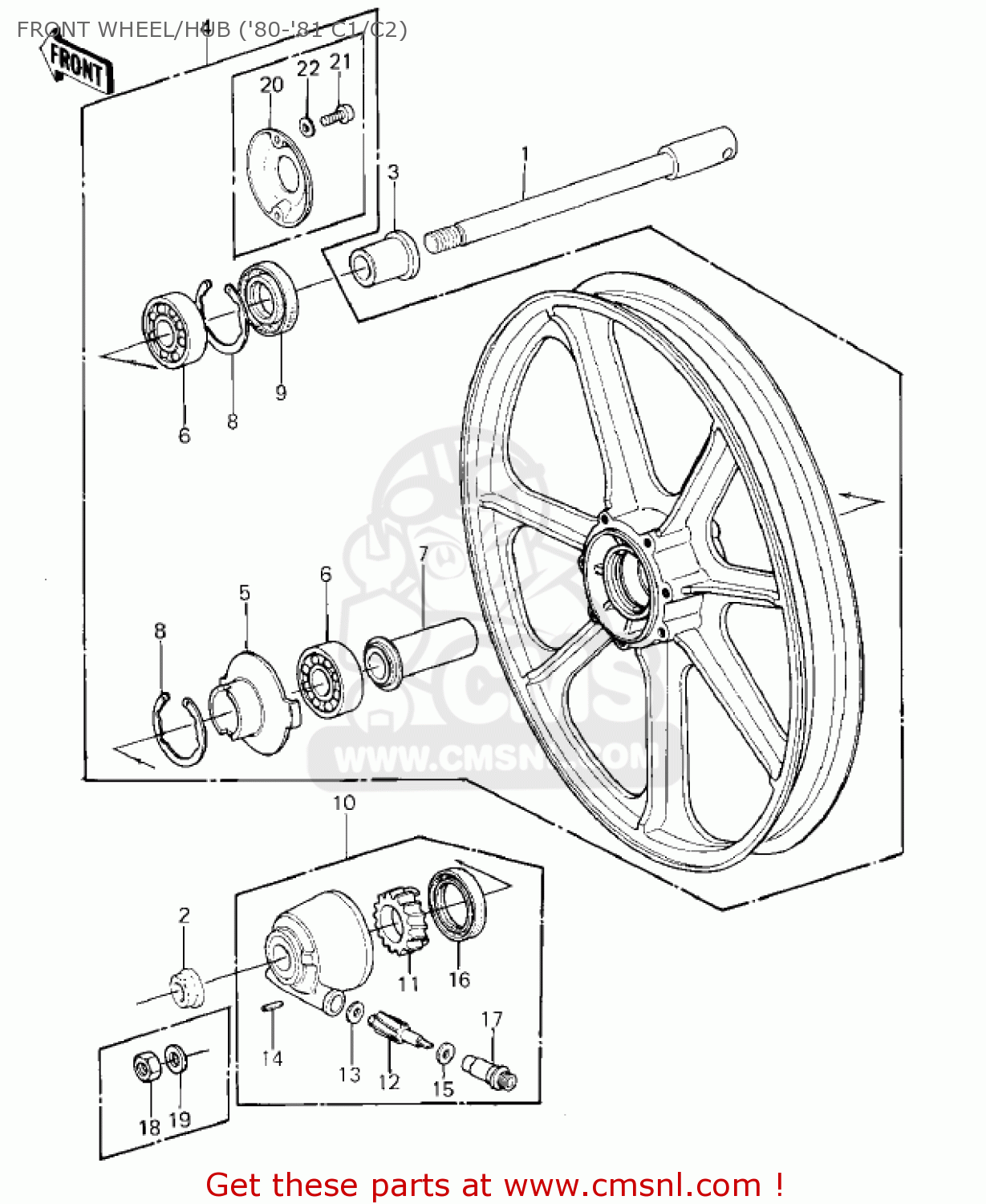

Front wheel/hub ('80-'81 c1/c2) diagram KZ550C1 LTD 1980 USA CANADA
FRONT WHEEL/HUB ('80-'81 C1/C2) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410681009
ref: 1
AXLE,FR,L=204
€ 44.50
2
920151407
ref: 2
KZ550-C1
NUT,14MM
€ 6.50
3
920271225
ref: 3
COLLAR,FR AXLE L=30MM
€ 11.50
4
41073108021
ref: 4
KZ550-C1
WHEEL-ASSY,FR,F,BLACK
€ 489.00
4
41073108021
ref: 4
KZ550-C2
WHEEL-ASSY,FR,F,BLACK
€ 489.00
5
410641006
ref: 5
RECEIVER,SPEEDOMETER
€ 9.50
6
601B6302Z
ref: 6
BEARING-BALL,#6302ZC3
€ 22.50
7
920271223
ref: 7
COLLAR,FR HUB L=55M/M
€ 5.50
8
920331041
ref: 8
CIRCLIP,42MM
€ 4.00
9
92052011
ref: 9
USE FOR 41073-10
OIL SEAL,WTC22427
€ 14.00
9
920491058
ref: 9
USE FOR 41073-10
OIL SEAL,BJN22425
€ 7.50
10
410781013
ref: 10
CASE-ASSY-METER GEAR
€ 120.00
11
41059026
ref: 11
GEAR,SPEEDOMETER
€ 27.00
12
410601016
ref: 12
PINION,SPEEDOMETER,9T
€ 21.50
13
41063001
ref: 13
WASHER-THRST SPD PINI
€ 3.00
14
41082001
ref: 14
PIN-SPRING
€ 2.50
15
41063001
ref: 15
WASHER-THRST SPD PINI
€ 3.00
16
920491057
ref: 16
OIL SEAL,BJN30427-C3
€ 7.50
17
920871002
ref: 17
BUSHING-METER GEAR
€ 14.50
18
314B1400
ref: 18
KZ550-C2
NUT,14MM
€ 1.00
19
410B1400
ref: 19
KZ550-C2
410B1400
20
140251042
ref: 20
USE FOR 41073-10
COVER,DUST,RH
€ 6.00
21
220B0514
ref: 21
USE FOR 41073-10
ACREW-PAN HEAD,5X14
€ 2.50
22
411B0500
ref: 22
WASHER-PLAIN,5MM
€ 0.50
