CRANKCASE BOLT & STUD PATTERN ('
KZ550C1 LTD 1980 USA CANADA

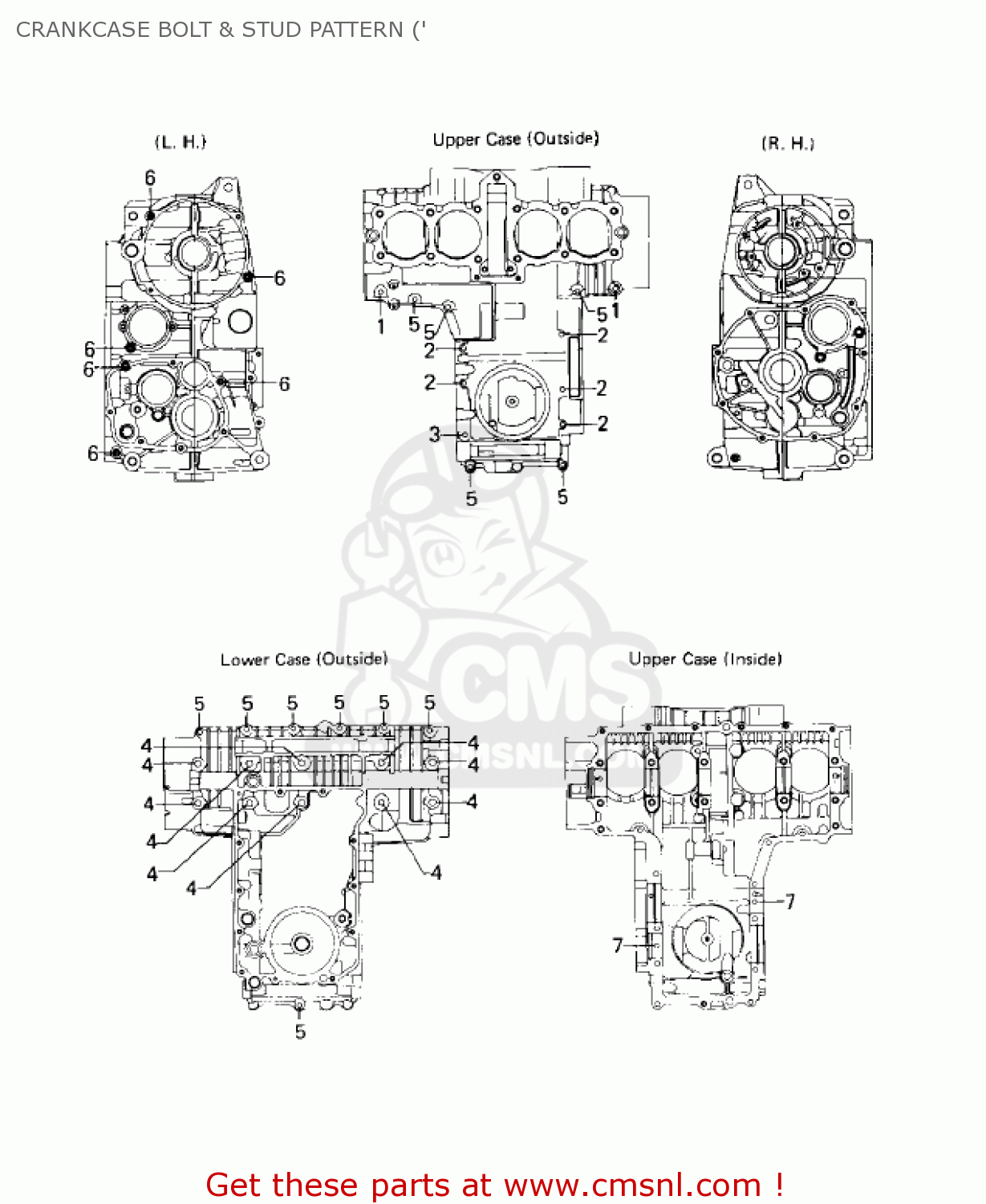

Crankcase bolt & stud pattern (' diagram KZ550C1 LTD 1980 USA CANADA
CRANKCASE BOLT & STUD PATTERN (' KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003110
ref: 1
BOLT-HEX HEAD,6X54
€ 1.50
2
130G0695
ref: 2
BOLT-FLANGED,6X95
€ 3.50
3
92003194
ref: 3
BOLT,6X105
€ 1.50
4
130P0895
ref: 4
BOLT-FLANGED,8X95
€ 7.00
5
92003109
ref: 5
BOLT-HEX HEAD,6X41
€ 5.50
6
92042007
ref: 6
PIN-DOWEL
€ 4.00
7
92042016
ref: 7
REF. CRANKCASE
PIN,DOWEL,6X16
€ 3.50
