SEAT ('80-'81 C1/C2)
KZ550C1 LTD 1980 USA CANADA

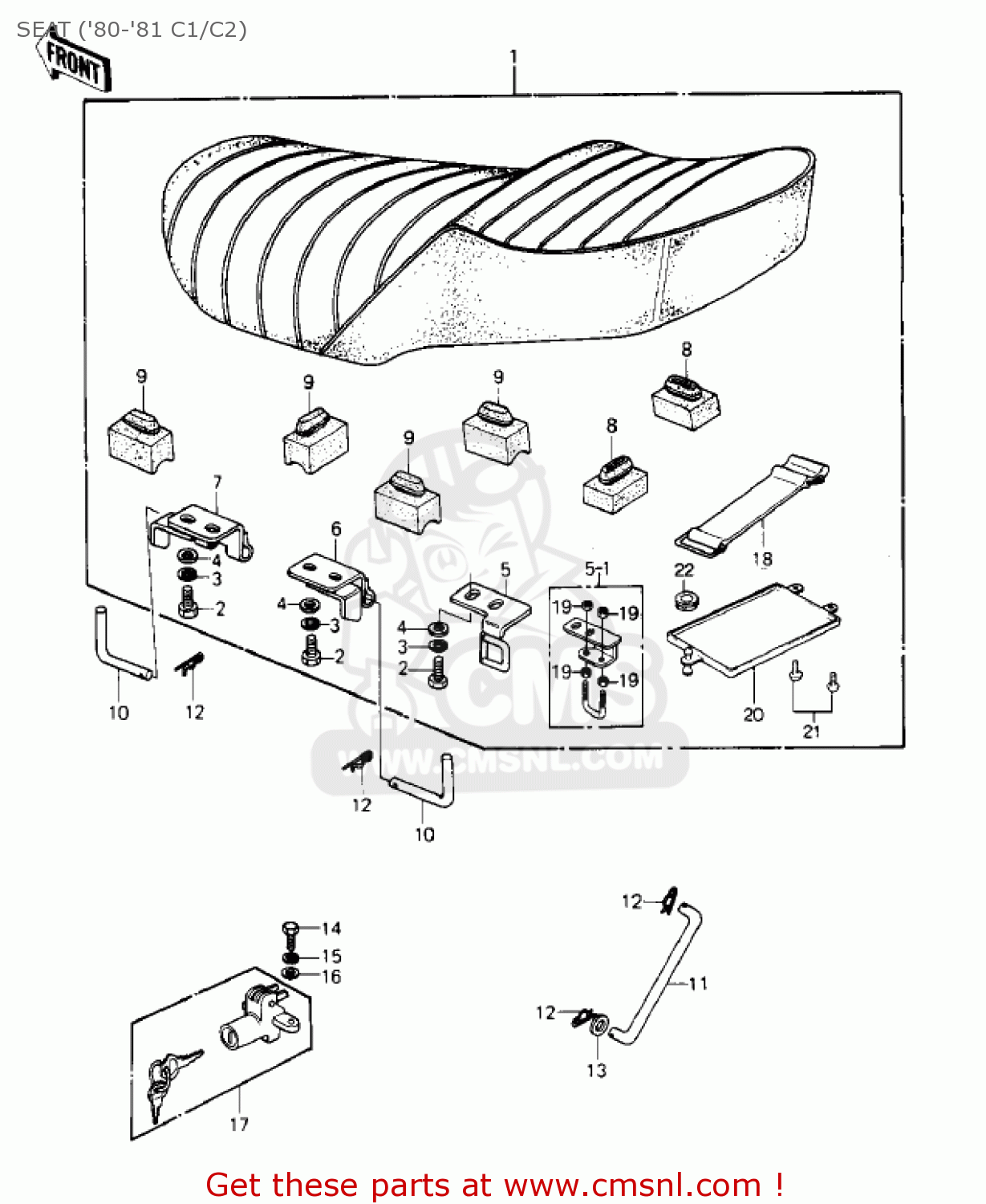

Seat ('80-'81 c1/c2) diagram KZ550C1 LTD 1980 USA CANADA
SEAT ('80-'81 C1/C2) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011114
ref: 1
KZ550-C1
SEAT-ASSY,DUAL
€ 441.00
1
530011114
ref: 1
KZ550-C2
SEAT-ASSY,DUAL
€ 441.00
2
112G0616
ref: 2
BOLT UPSET,6X16
€ 1.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
411B0600
ref: 4
WASHER-PLAIN,6MM
€ 0.50
5
270121011
ref: 5
USE FOR 53001-1088
HOOK,SEAT
€ 10.50
5-1
530451002
ref: 5-1
USE FOR 53001-1114
HOOK ASSY,SEAT
€ 8.50
6
530091023
ref: 6
HINGE,SEAT,FRONT
€ 7.50
7
530091024
ref: 7
HINGE,SEAT,REAR
€ 8.50
8
92075099
ref: 8
DAMPER RUBBER
€ 3.50
9
92075156
ref: 9
DAMPER,SEAT
€ 6.50
10
53011008
ref: 10
PIN,SEAT PIVOT
€ 4.00
11
53054006
ref: 11
STOPPER, SEAT
€ 4.00
12
554A0600
ref: 12
PIN-SNAP,SIDE STAND
€ 0.50
13
920221565
ref: 13
WASHER,6.5X16X2
€ 2.50
14
112B0614
ref: 14
BOLT-UPSET 6X14
€ 2.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
411B0600
ref: 16
WASHER-PLAIN,6MM
€ 0.50
17
270165010
ref: 17
LOCK-ASSY,SEAT
€ 72.50
18
920721044
ref: 18
BAND
€ 8.00
19
312B0600
ref: 19
NUT,6MM
€ 0.50
20
32099011
ref: 20
CASE,MANUAL
€ 11.50
21
920091043
ref: 21
SCREW,TAPPING,5X8
€ 3.00
22
92071056
ref: 22
GROMMET
€ 2.50
